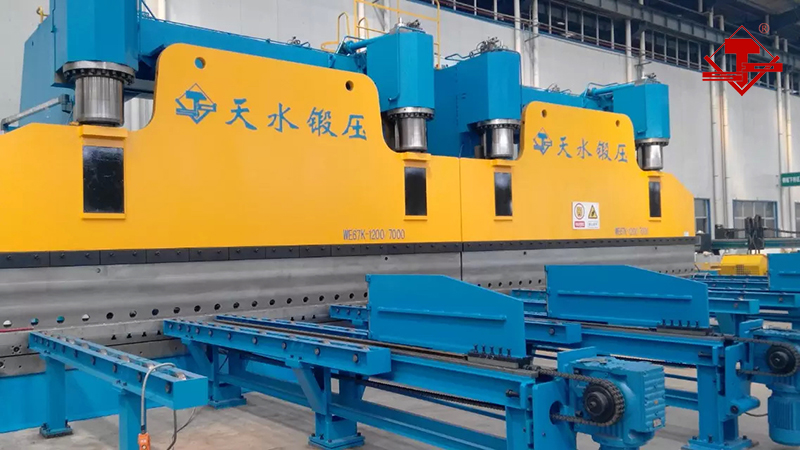

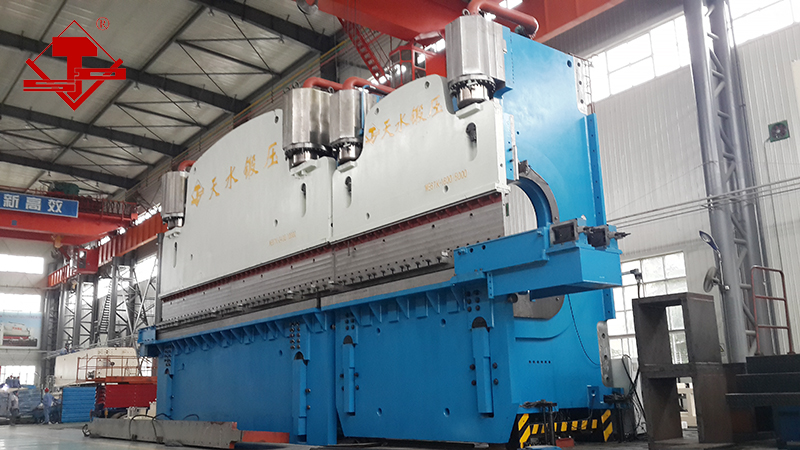

Tandem CNC Press Brake
The TSD press brake in tandem is a CNC electrical-hydraulic proportional press brake providing closed loop control for high precision. This metal forming machine is designed to handle larger or more complex bending operations.
Technical Specifications
Overview
High-Precision Tandem CNC Press Brake
The 2-WE67K-650/6000 tandem press brake provides exceptional bending capacity through a fully closed-loop electrical-hydraulic proportional control system. Designed for heavy-duty industrial applications, the machine integrates advanced European-engineered hydraulics and intuitive CNC touch-screen interfaces to ensure maximum stability and precision. With specialized features like automated crowning compensation and an efficient out-feeding mechanism, this system is optimized for high-volume production of large-scale, complex workpieces.
Performance Metrics
Capacity & Dimensions
Operational Speeds
| Motion State | Speed |
|---|---|
| Approaching | 60 mm/s |
| Working | 7 mm/s |
| Returning | 55 mm/s |
Technical Specifications
Technical Details
- Ram Stroke: 400 mm
- Max. Open Height: 1000 mm
- Main Motor Power: 45 kW x 2
- Overall Dimensions: 13000 x 4000 x 5000 mm
- Core Components
- Bosch/Hoerbiger HydraulicsDelem DA66T ControllerSchneider ElectricalNachi Oil PumpGIVI Optical Scale
