Technical Specifications
Product Overview
Professional Abrasive Cutting Solution

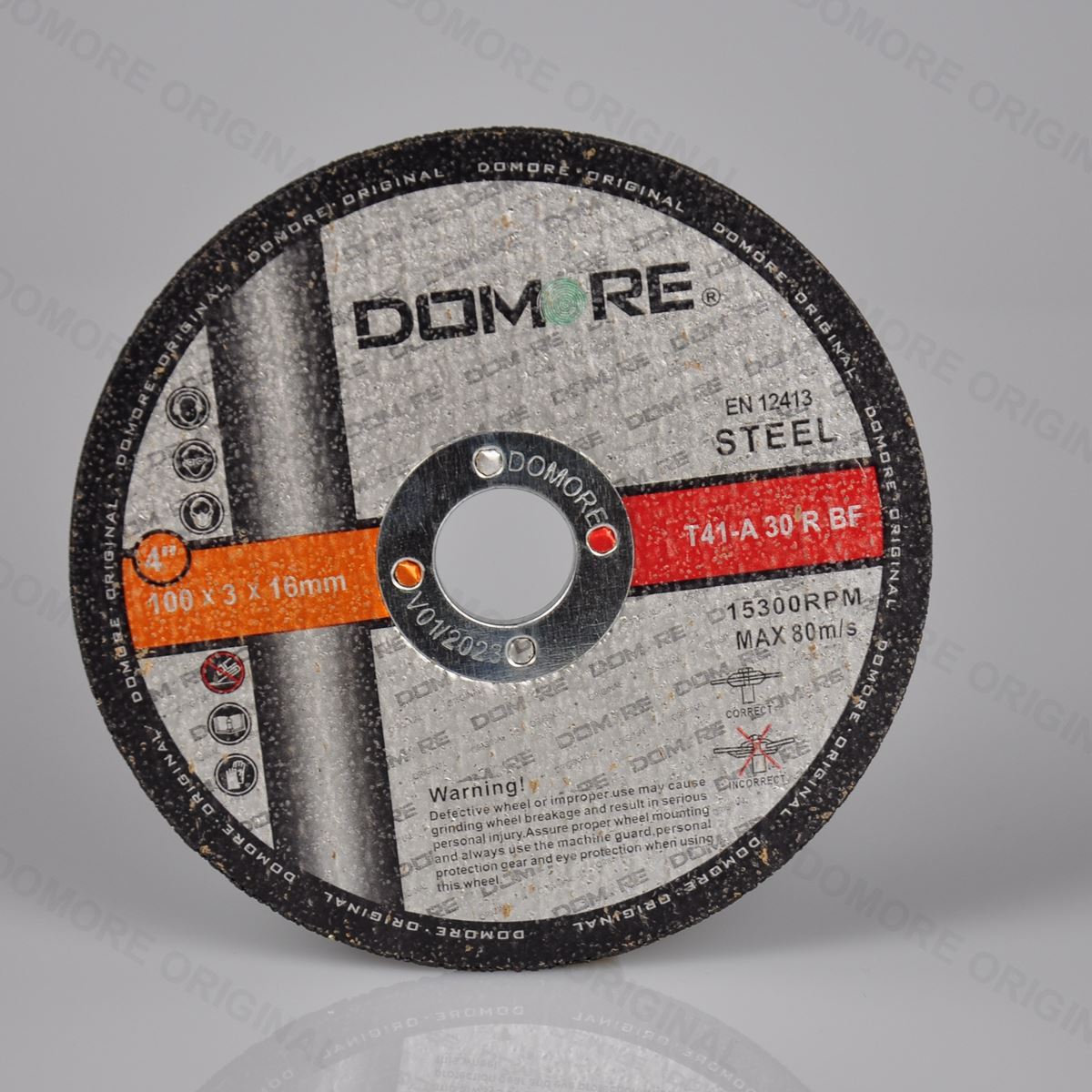

The T41 Abrasive Cutting Wheel is engineered for precision and durability, utilizing premium abrasives, synthetic resin, and reinforced fabric. Designed for high-performance cutting across metal, stainless steel, alloy steel, stone, and non-ferrous materials, this wheel is compatible with both portable and stationary machinery. It meets stringent international safety standards to ensure reliability in industrial environments.
Technical Specifications
Performance Metrics
15,300 RPM
Max Speed (100mm Model)
13,300 RPM
Max Speed (115mm Model)
80 m/s
Maximum Peripheral Speed
Available Dimensions
| Diameter (mm) | Thickness (mm) | Bore (mm) | Application |
|---|---|---|---|
| 100 | 3 | 16 | Metal/Steel |
| 115 | 2 | 22.2 | Stone |
Compliance and Safety
Safety Warnings
- Defective wheels may cause breakage
- Ensure proper wheel mounting before use
- Always use machine guard
- Wear personal protective gear and eye protection
- Certifications
- EN 12413
