Swivel Caster Wheel
This swivel caster wheel is designed for mobile medical equipment and various carts. It has a load capacity of 180-250kg and features a galvanized finish for durability.
Technical Specifications
Overview

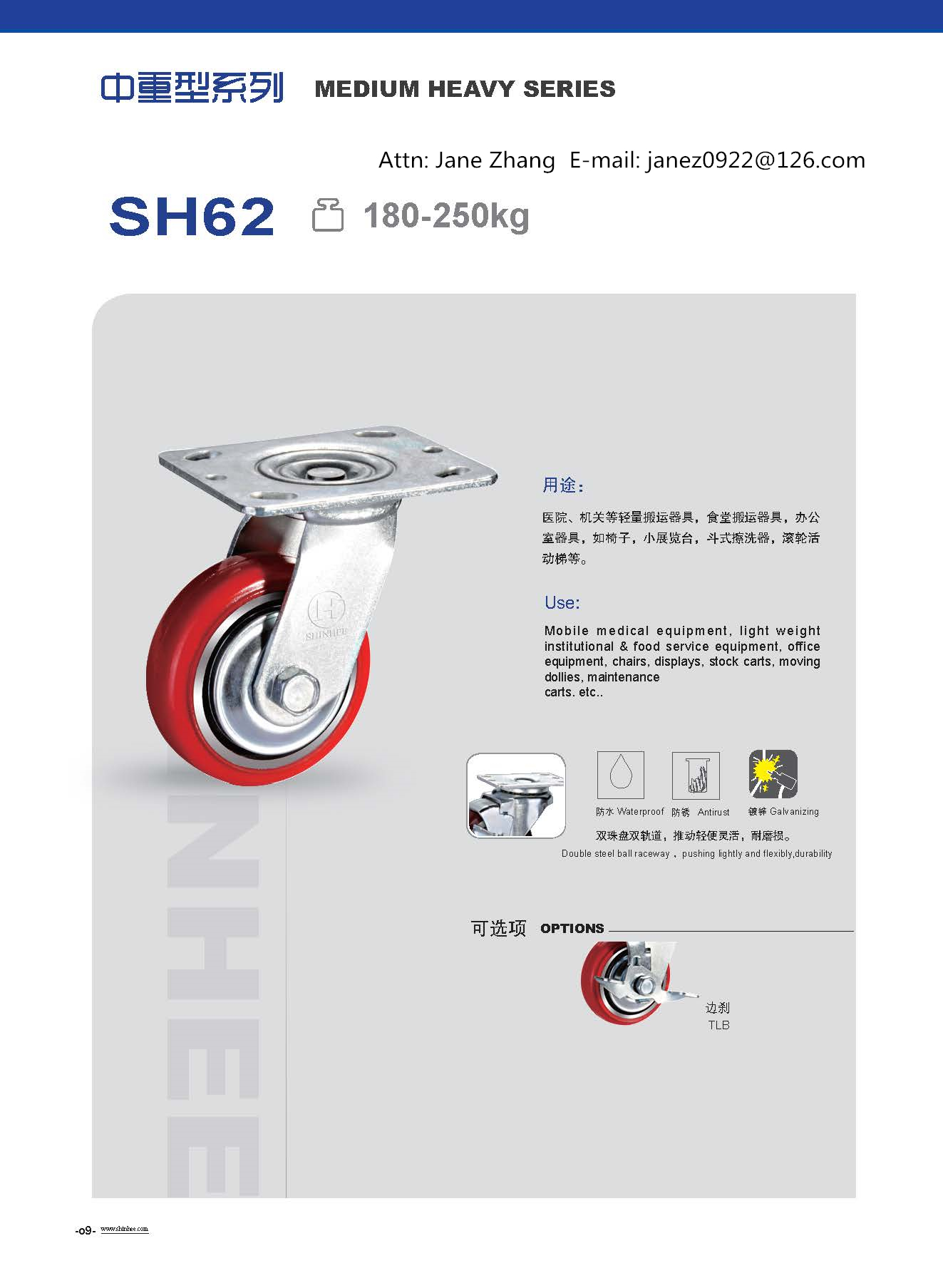

SH62 Medium-Heavy Duty Caster Series
The SH62 series is a versatile medium-heavy duty swivel caster designed for durability and smooth mobility. Featuring a galvanized finish, these casters are both waterproof and rust-resistant, making them ideal for demanding environments. They are equipped with a double steel ball raceway to ensure flexible and lightweight operation, providing reliable performance for various professional applications.
Performance & Features
Load Capacity
180 kg
Minimum Capacity
250 kg
Maximum Capacity
Available Options
Side Brake (TLB)
- Key Features
- WaterproofAntirustGalvanizedDouble Steel Ball Raceway
Technical Specifications
Primary Applications
- Mobile medical equipment
- Institutional & food service equipment
- Office equipment
- Chairs
- Displays
- Stock carts
- Moving dollies
- Maintenance carts
Material & Bearing Configuration
| Wheel Material | Bearing Type |
|---|---|
| Iron Core Polyurethane (UC) | Ball Bearing |
| Iron Core Rubber (RC) | Roller Bearing |
| Polyvinyl Chloride (PVC) | Roller Bearing |
Mounting Information
Base Plate Configurations
| Model | Overall Size (mm) | Bolt Hole Pattern (mm) | Bolt Size (mm) |
|---|---|---|---|
| SH62-01 (Standard) | 94.5 x 85 | 58.5 x 74.5 ~ 65.5 x 68.5 | 10 |
| SH62-02 (Optional) | 114 x 100 | 92 x 66.5 ~ 76 x 76 | 11 |
- Top Plate Thickness
- 4 mm
