Technical Specifications
Overview

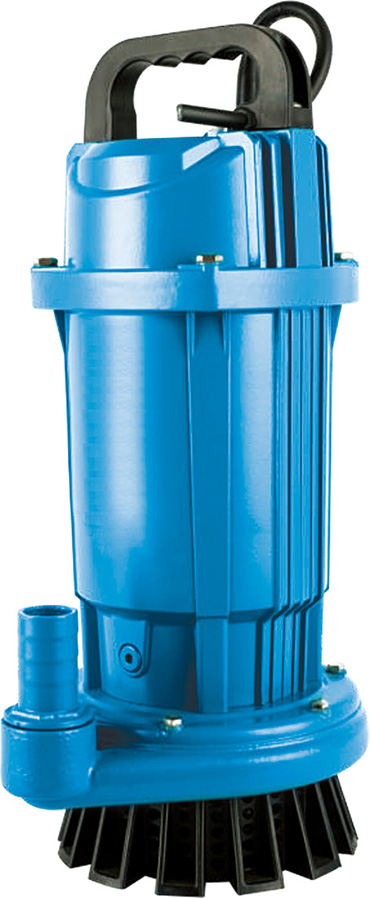

Robust Submersible Water Pump
This submersible water pump features a durable aluminum and cast iron housing, designed for longevity and resistance to corrosion in demanding environments. Engineered for efficient water removal and transfer, it is suitable for construction sites, basements, and drainage systems. The unit includes built-in thermal overload protection and is capable of handling small solids, ensuring reliable performance in continuous duty applications.
Performance Metrics
Key Performance Metrics
21 m
Max Head
140 L/min
Max Flow Rate
0.55 kW
Power Output
2,850 r/min
Speed
Operating Limits
Operating Conditions
| Parameter | Value |
|---|---|
| Max Depth | 5m |
| Max Fluid Temperature | 40°C |
| Max Ambient Temperature | 40°C |
| pH Range | 6.5-8.5 |
| Max Particle Diameter | <2mm |
Technical Specifications
Electrical & Mechanical
- Voltage: 230V
- Frequency: 50Hz
- Pipe Connection: 1 inch
- Duty Cycle: S1
- IP Rating: IP X8
- Certifications
- CE
