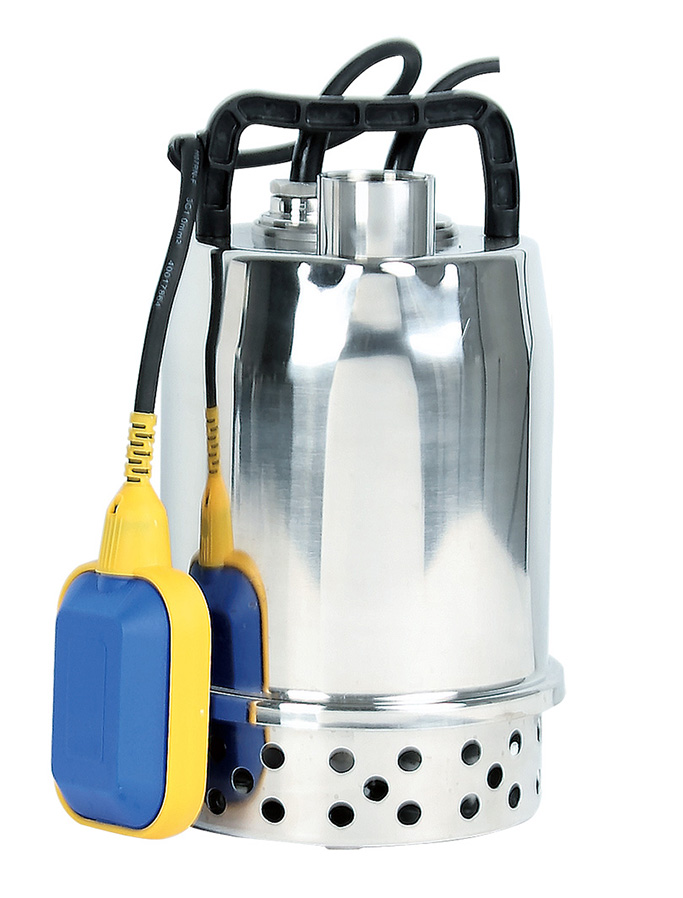

Submersible Water Pump for Drainage and Irrigation
This pump is used for draining wells, garages, cellars or places subject to flood, and also for garden irrigation. It features a ceramic coated shaft sleeve.
Technical Specifications
Product Overview
Efficient Submersible Pumping Solution
This submersible water pump is engineered for reliable performance in drainage and irrigation applications. Constructed with durable, corrosion-resistant materials, it ensures longevity even in demanding environments. The unit features an integrated float switch for automatic operation and a screened base to effectively manage debris intake, making it an ideal choice for efficient water removal.
Operating Limits
- Maximum Submersion Depth
- 5 m
- Maximum Fluid Temperature
- 40 ℃
- Max Suspended Solids
- 10 mm
- Duty Cycle
- Continuous duty
Technical Details
Cable Specifications
1 mm2
Cable Cross-Section
3 cores
Core Count
- Cable Type
- H07RN-F
Features
- Key Features
- Stainless Steel ConstructionAutomatic Float SwitchScreened BaseCorrosion ResistantQuiet Operation
Applications
Suitable Applications
- Dewatering
- Irrigation
- General Water Pumping
- Drainage
