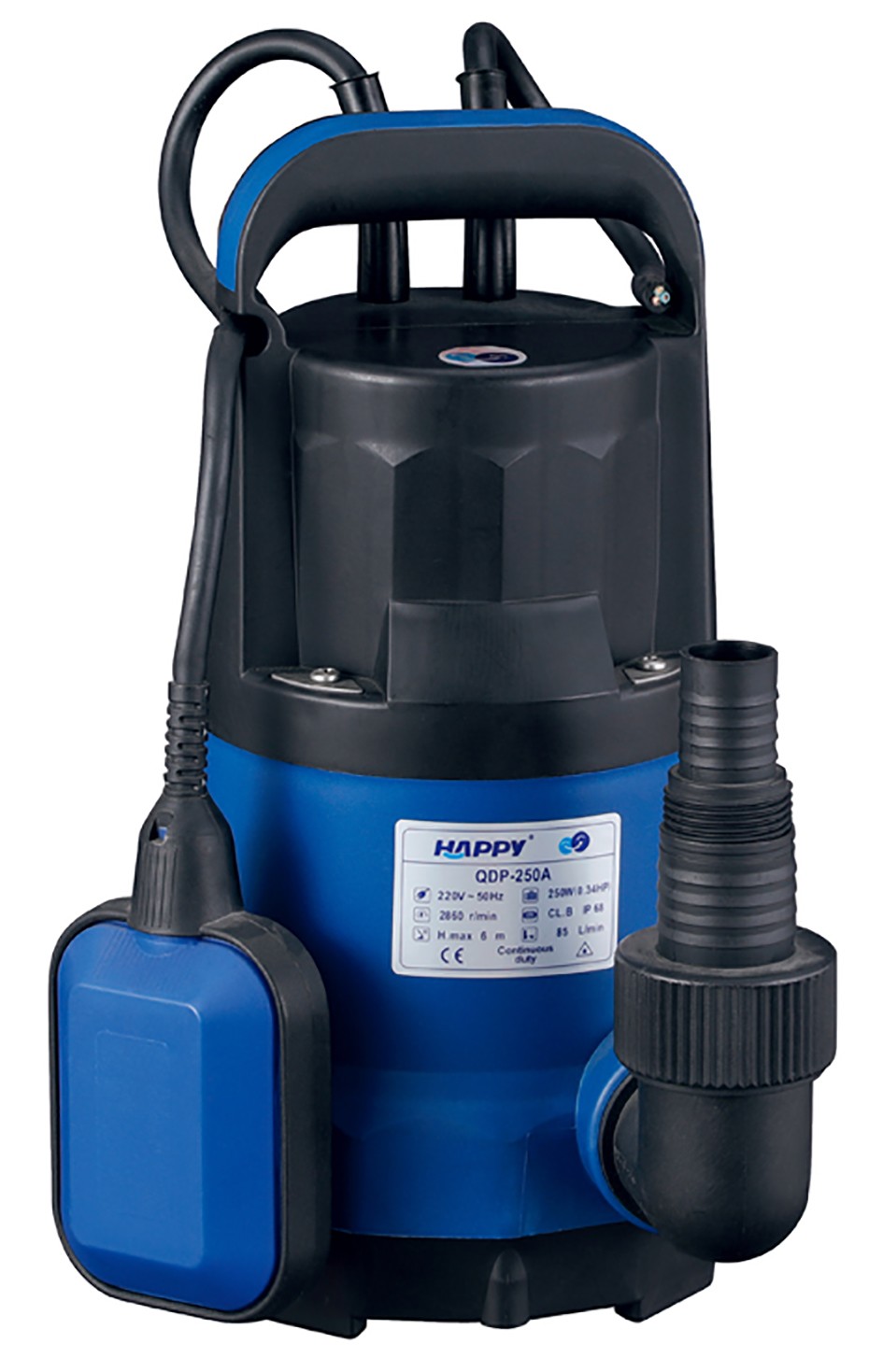

Submersible Water Pump
This submersible water pump is designed for drainage applications. It features a two-pole induction motor and is rated IP68 for protection against dust and continuous submersion in water.
Technical Specifications
Product Overview
Professional Submersible Drainage Pumps
These submersible water pumps are engineered for reliable performance in dirty water applications, including domestic wastewater discharge and emptying collection traps. Designed for continuous duty, the units effectively handle suspended solids up to 8mm in diameter. Built with durable materials, these pumps offer a versatile solution for drainage requirements requiring non-chemically aggressive handling.
Performance Specifications
Key Performance Metrics
6 m
Max Head (QDP-250A)
11 m
Max Head (QDP-750B)
85 L/min
Flow Rate (QDP-250A)
200 L/min
Flow Rate (QDP-750B)
Technical Comparison
| Feature | QDP-250A | QDP-750B |
|---|---|---|
| Power | 250W (0.34HP) | 750W (1HP) |
| Speed | 2850 r/min | 2860 r/min |
| Voltage | 220V/50Hz | 220V/50Hz |
Technical Details
Ingress Protection
IP68
- Certifications
- CE Certified
- Max Suspended Solids
- 8 mm
