Technical Specifications
Product Overview

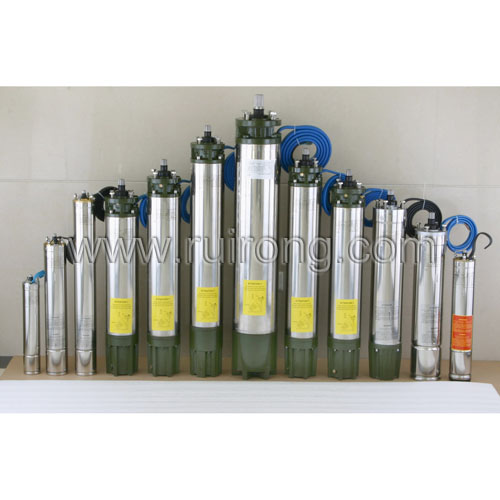

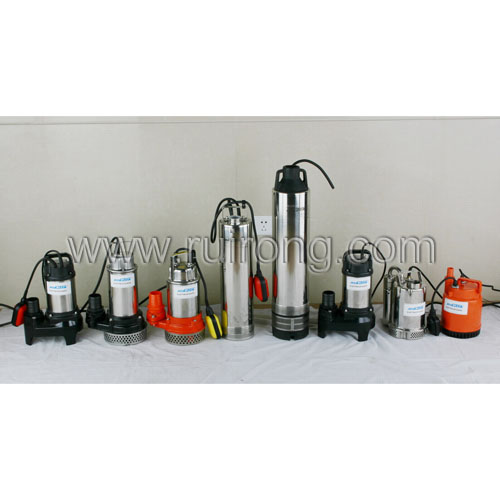

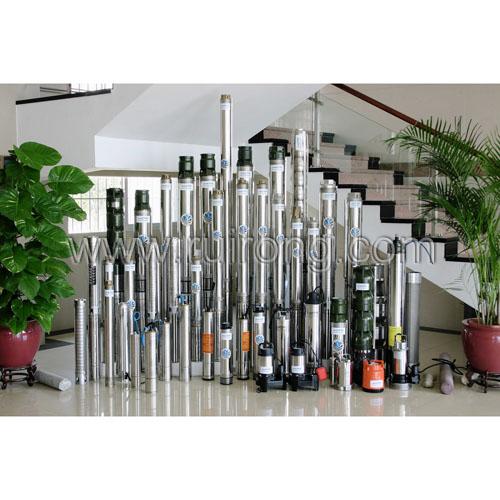

Professional Submersible Pumping Solutions
These high-performance submersible pumps are engineered for efficient water extraction from wells, boreholes, and submerged sources. Constructed with durable stainless steel, they offer exceptional corrosion resistance and a long service life for residential, commercial, and industrial applications. The systems are designed to international standards, supporting a wide range of power requirements and operating frequencies.
Technical Specifications
Power Range
0.37 kW
Minimum Power
110 kW
Maximum Power
Frequency Options
- 50 Hz
- 60 Hz
- Available Pump Sizes
- 3 inch4 inch6 inch8 inch
- Cooling Methods
- Oil CoolingWater Cooling
Compliance & Quality
Certifications
ISO 9001:2000CCCCEIEC-34-ICENEMA
Automatic Control Devices
Starter & Control Device Compatibility
| Model | Voltage (V) | Power Range (kW) |
|---|---|---|
| M18-A | 220 | 0.25-1.5 |
| M18-B | 220 | 0.25-2.2 |
| M28-B | 380 | 0.55-30 |
| M68-11 | 380 | 0.25-15 |
