Professional Submersible Water Pumps
These submersible water pumps are engineered for reliable performance in clean water applications, including irrigation, gardening, and tank emptying. Designed for continuous duty operation, they feature robust insulation and ingress protection to ensure durability in demanding environments. Available in multiple power configurations, these units offer an efficient solution for automated water management.
Performance Metrics
Performance Overview
165 L/min
Max Flow Rate
10 m
Max Head
2,860 r/min
Rotation Speed
Technical Specifications
- Electrical Requirements
- 220V, 50Hz
- Ratings & Standards
- CECL.BIP68
- Duty Cycle
- Continuous Duty
Model Variants
Available Pump Models
| Model | Power (W) | Power (HP) | Max Head (m) | Flow Rate (L/min) |
|---|---|---|---|---|
| QDS-370C | 370 | 0.5 | 8 | 120 |

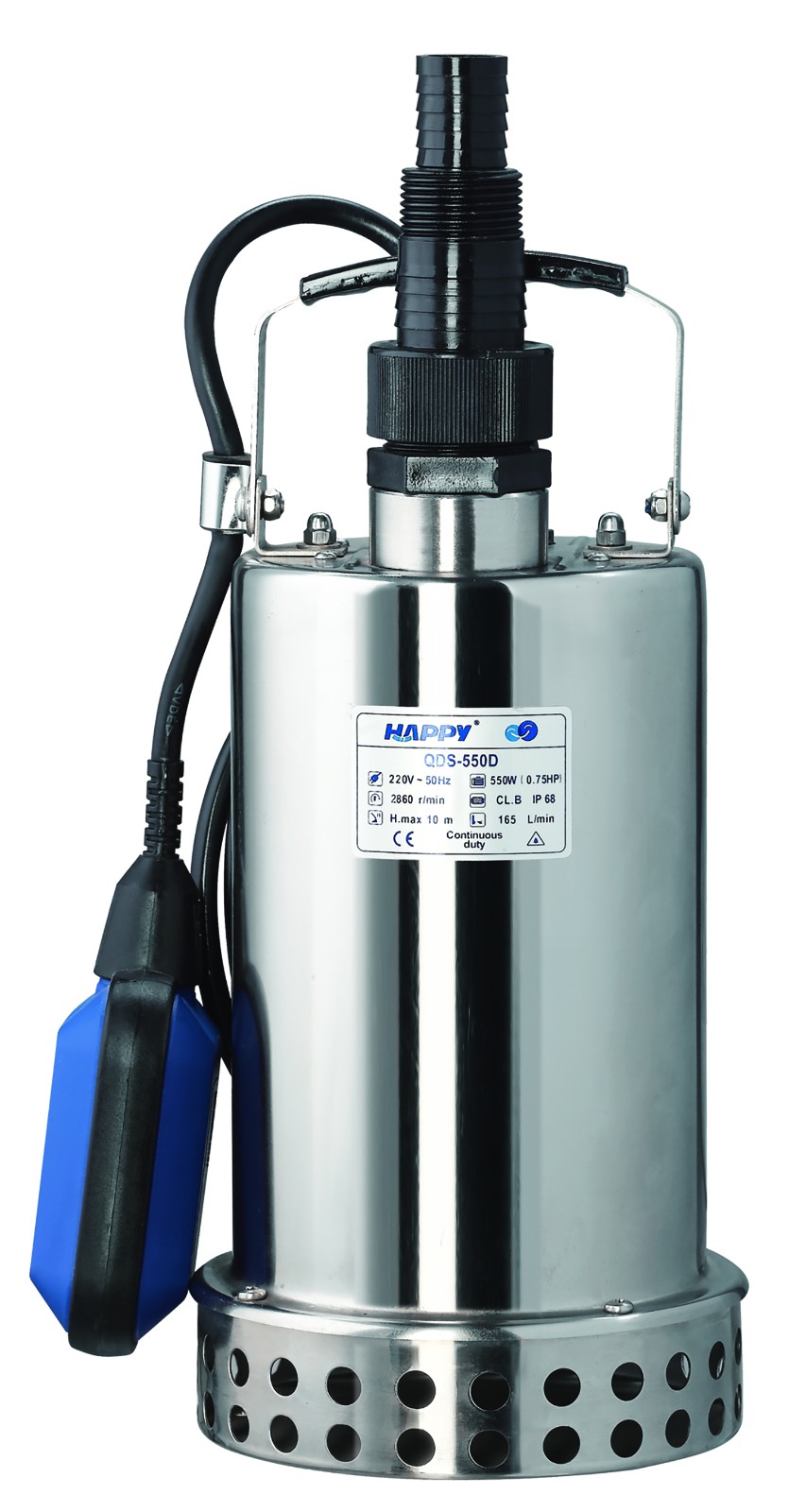

| QDS-550D | 550 | 0.75 | 10 | 165 |

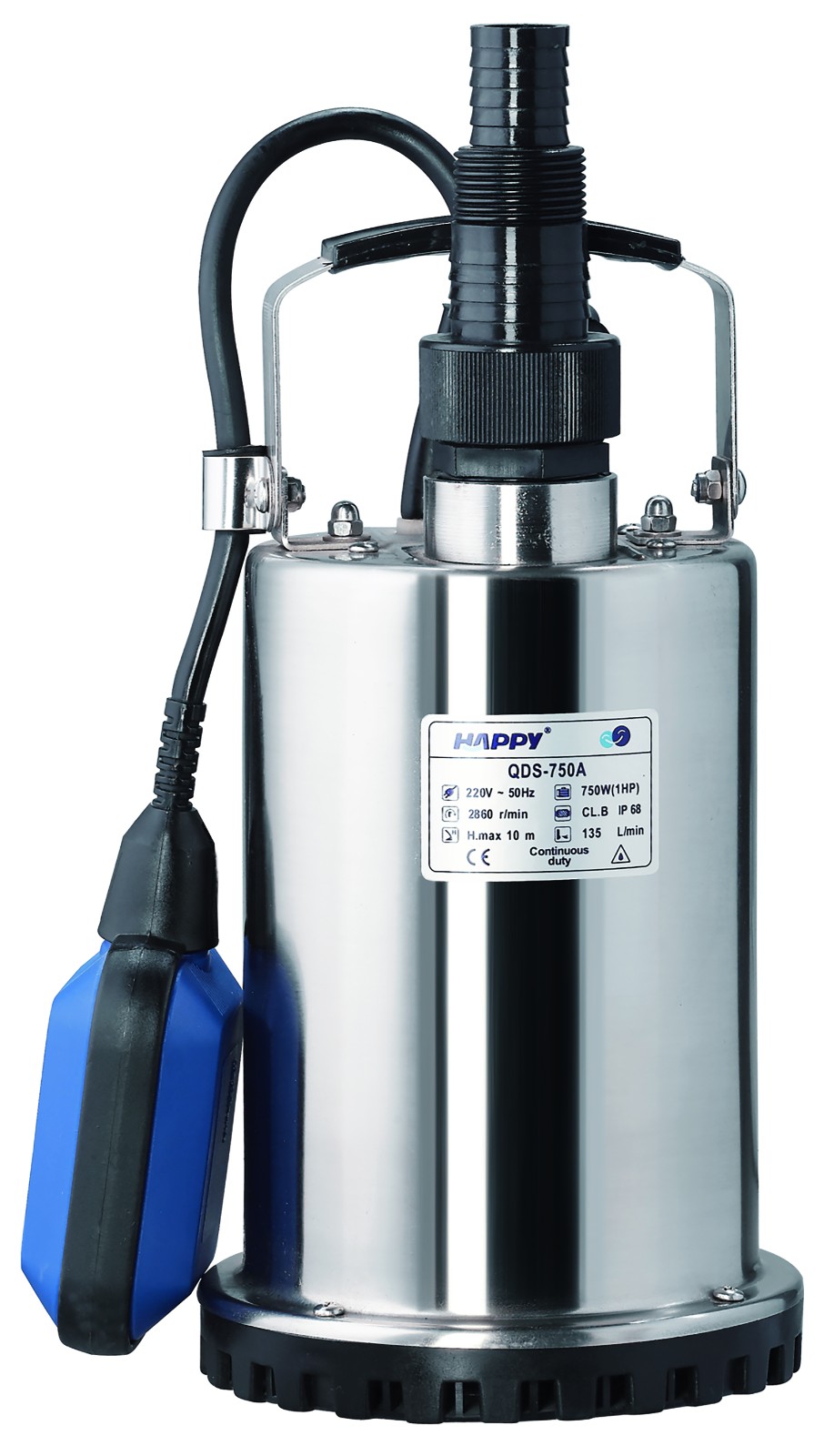

| QDS-750A | 750 | 1 | 10 | 135 |
