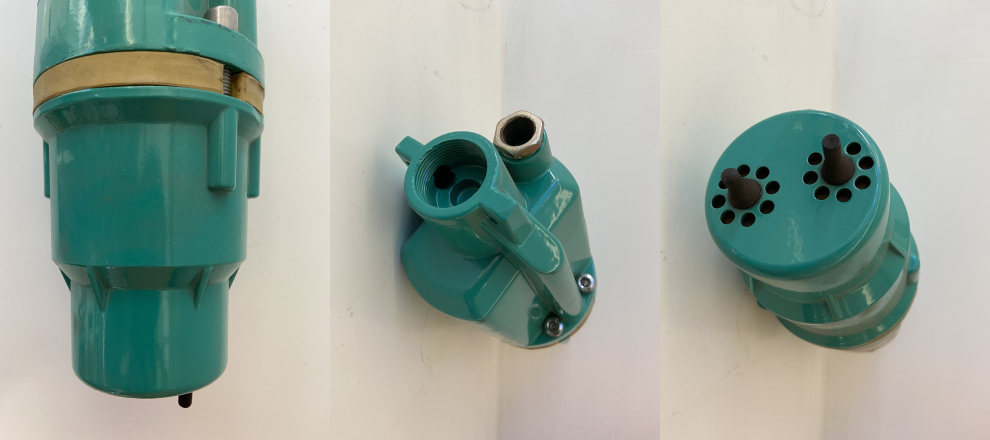

Submersible Vibration Diaphragm Well Water Pump
This submersible pump is designed for efficient water extraction from wells using a vibration diaphragm mechanism. It is suitable for irrigation, mine drainage, and flood control in rivers, lakes, and wells.
Technical Specifications
Overview
High-Efficiency Vibration Pump
This clean-water submersible pump is engineered for efficient water extraction from wells, rivers, and lakes. Its compact, vibration-driven diaphragm design provides high performance for irrigation, mine drainage, and flood control. Built with durable materials and advanced sealing, it ensures long-term reliability and energy efficiency in demanding environments.
Performance Specifications
Operational Performance
330 W
Power
25 L/min
Max Flow Rate
80 m
Max Head
8 bar
Max Pressure
Technical Details
Specifications
| Feature | Value |
|---|---|
| Model | XVM70C |
| Voltage / Frequency | 230V / 50HZ |
| Outlet Size | 3/4 inch |
| Degree of Protection | IP 68 |
| Insulation Class | B |
| Gross Weight | 4.3 kg |

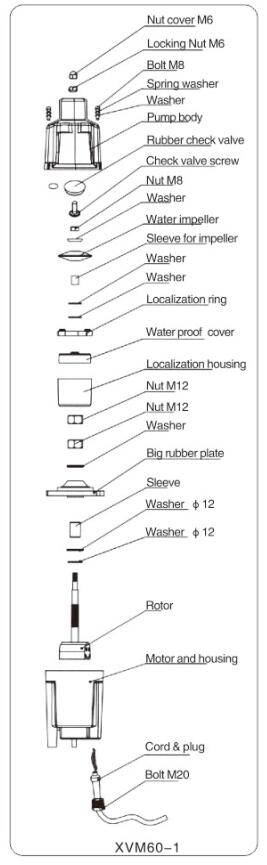

Construction Materials
Material Composition
- Pump body: Aluminum
- Motor body: Aluminum
- Shaft: #45 Steel
- Impeller: Rubber
Usage & Compliance
- International Standards
- CETUVRoHSGSISO 9001
