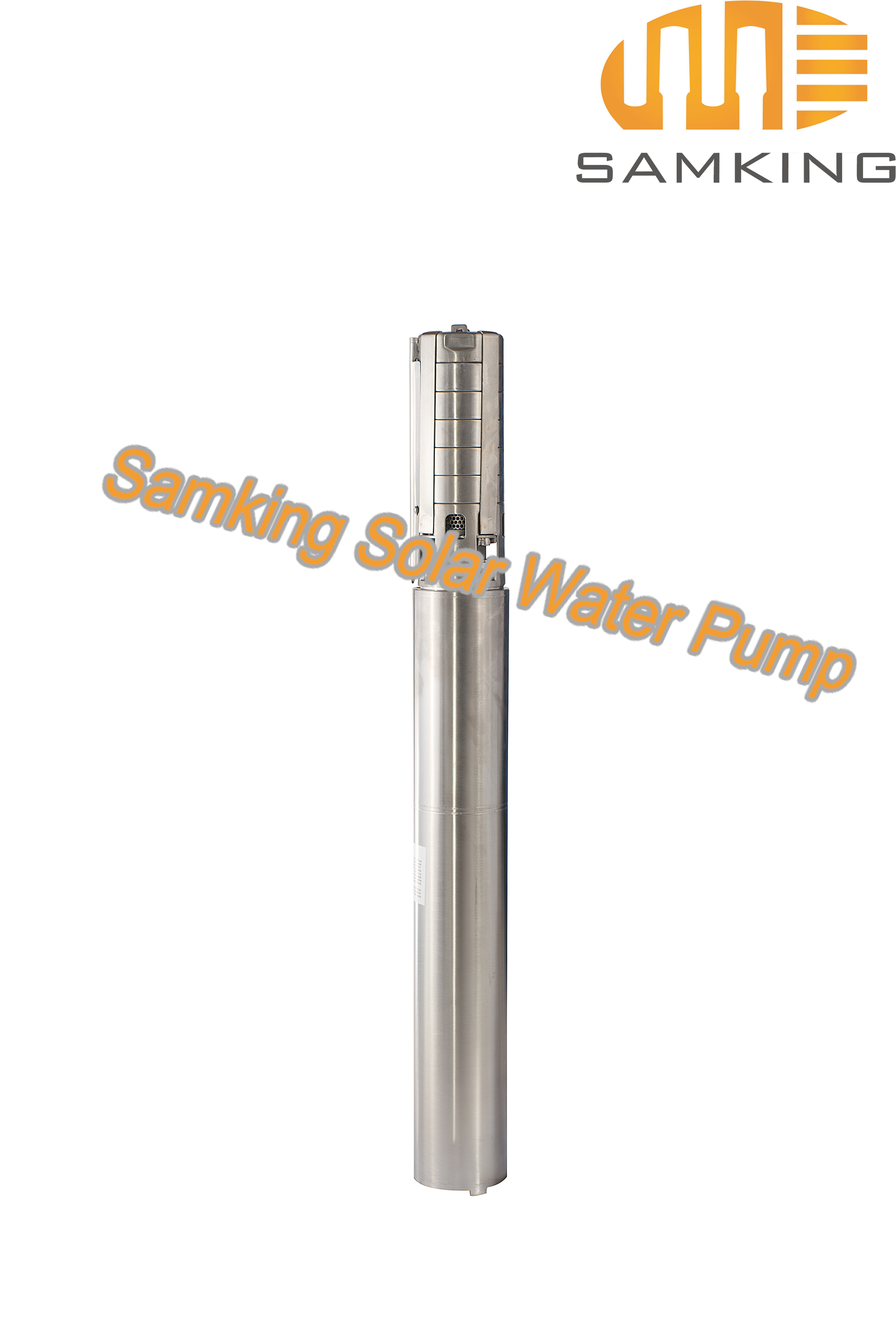

Submersible Solar Water Pump
This submersible pump is designed for efficient water extraction using solar power. Its innovative design allows it to be powered with both AC and DC sources without modifications.
Technical Specifications
Overview
High-Efficiency Solar Submersible Pump
This 3HP AC/DC hybrid submersible solar water pump is engineered for reliable water extraction in remote or off-grid locations. Featuring a durable stainless steel construction and an integrated BLDC controller, it offers a sustainable, low-cost solution for irrigation, livestock, and domestic supply. The system supports a wide voltage range and includes advanced protection features like dry-running and over-voltage safeguards for long-term operational stability.
Performance Metrics
Key Performance Indicators
51 m
Max Head
400 L/min
Max Flow
3 HP
Power
Technical Specifications
Power & Electrical
| Parameter | Value |
|---|---|
| Max Input Power | 3kW |
| DC Voltage Range | 60-380 Vmp |
| AC Voltage Range | 90-240 V |
| Max VOC | 440V |
Mechanical Details
- Pump Diameter: 4 inch
- Discharge Size: 2 inch
- Max Submergence Depth: 150m
- Motor Type: Water-filled BLDC
Features & Protection
Advanced Functions
- Hybrid AC/DC power compatibility
- Soft starting running
- Thrust bearing system
- Automatic running with self-control
- Optional GPRS monitoring
- Optional Generator auto turn on/off
- Safety & Protection
- Dry-running protectionOver-current protectionInput Over-voltage ProtectionOverload protection
Warranty
Warranty
2 Years Warranty
