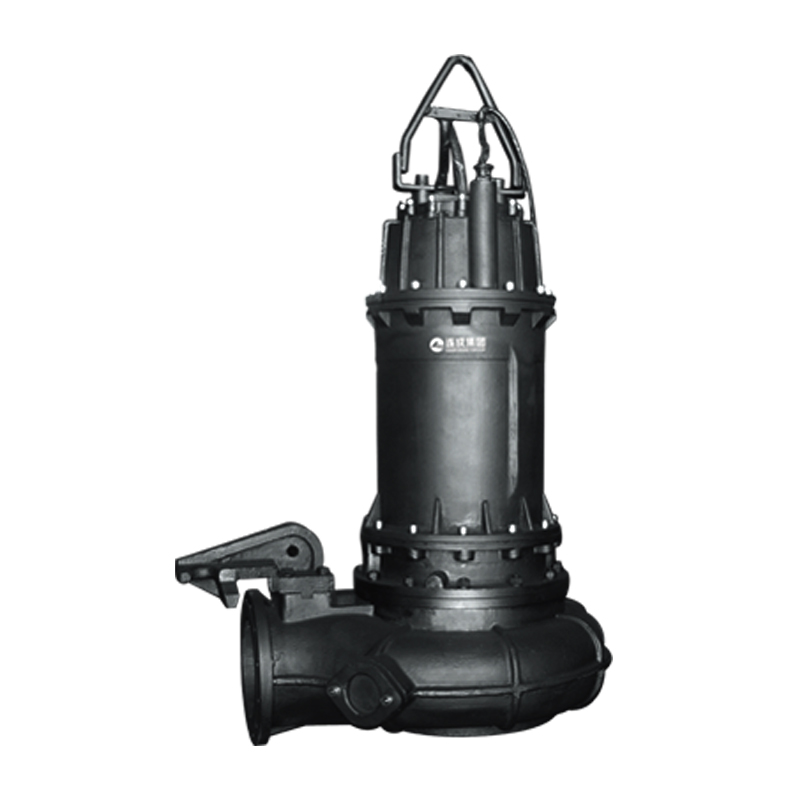

Submersible Sewage Water Pump
This submersible sewage pump is designed for efficient handling of wastewater. It features optimized hydraulic and mechanical structures for comprehensive performance.
Technical Specifications
Product Overview
High-Efficiency Submersible Sewage Handling
The WQ series submersible sewage pump represents an optimized solution for municipal, industrial, and residential wastewater management. Engineered with advanced hydraulic modeling and robust mechanical sealing, these pumps excel at handling solid particles and fiber-rich fluids without clogging. They feature integrated protection systems for thermal, leakage, and electrical irregularities to ensure long-term reliability in demanding environments.
Performance Specifications
Key Performance Metrics
6,000 m3/h
Max Capacity
65 m
Max Head
315 kW
Max Power
- Discharge Diameter
- DN50 - DN600mm
Operating Conditions
Fluid Limitations
- Max fluid temperature: 40°C
- Max fluid density: 1050 kg/m3
- PH range: 4-10
- Solids diameter: Less than 80% of flow channel minimum
Technical Construction
Protection Grade
IP68Insulation Class F/H
- Motor Specifications
- Dry typeFully enclosedThree-phase asynchronous
Installation Options
Available Installation Types
- Auto coupling installation
- Mobile hard pipe installation
- Mobile hose pipe installation
- Fixed wet installation
- Fixed dry installation
