Technical Specifications
Product Overview
High-Efficiency Submersible Sewage Pumps
This range of submersible pumps is engineered for robust wastewater and sewage management in demanding environments. Featuring advanced open impeller designs, these units offer a semi-cutting action that effectively prevents clogging by clearing solids during operation. Built for reliability and safety, these pumps are suitable for various drainage applications and adhere to international safety standards.
Technical Specifications
Available Models
| Model | Power | Max Flow | Max Head |
|---|---|---|---|

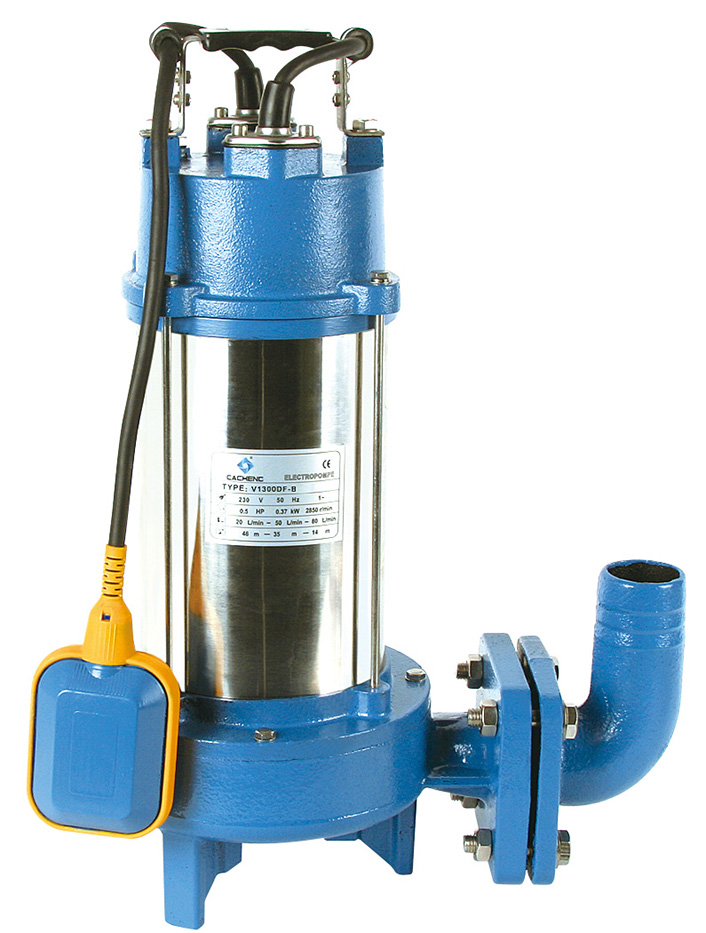

| V1300DF-8 | 0.37 kW (0.5 HP) | 80 L/min | 46 m |
| V1500/V1500F | 1500 W | 270 L/min | 22 m |

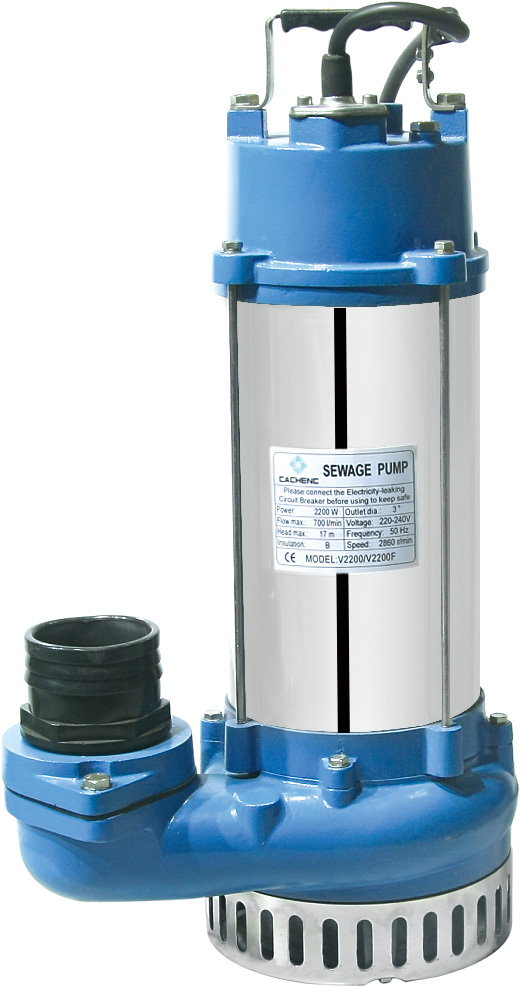

| V2200/V2200F | 2200 W | 700 L/min | 17 m |
- Electrical & Compliance
- 220-240V50HzInsulation Class BCE Certified
Operational Performance
Performance Highlights
2,860 RPM
Operational Speed
3 inches
Outlet Diameter
Design Features
- Impeller Design
- Open impeller with semi-cutting action for anti-clogging performance.
