Submersible Mixed Flow Water Pump
This submersible pump is designed for water supply and agricultural irrigation. It is also suitable for pressure boosting, fire-fighting, and various industrial applications.
Technical Specifications
Overview

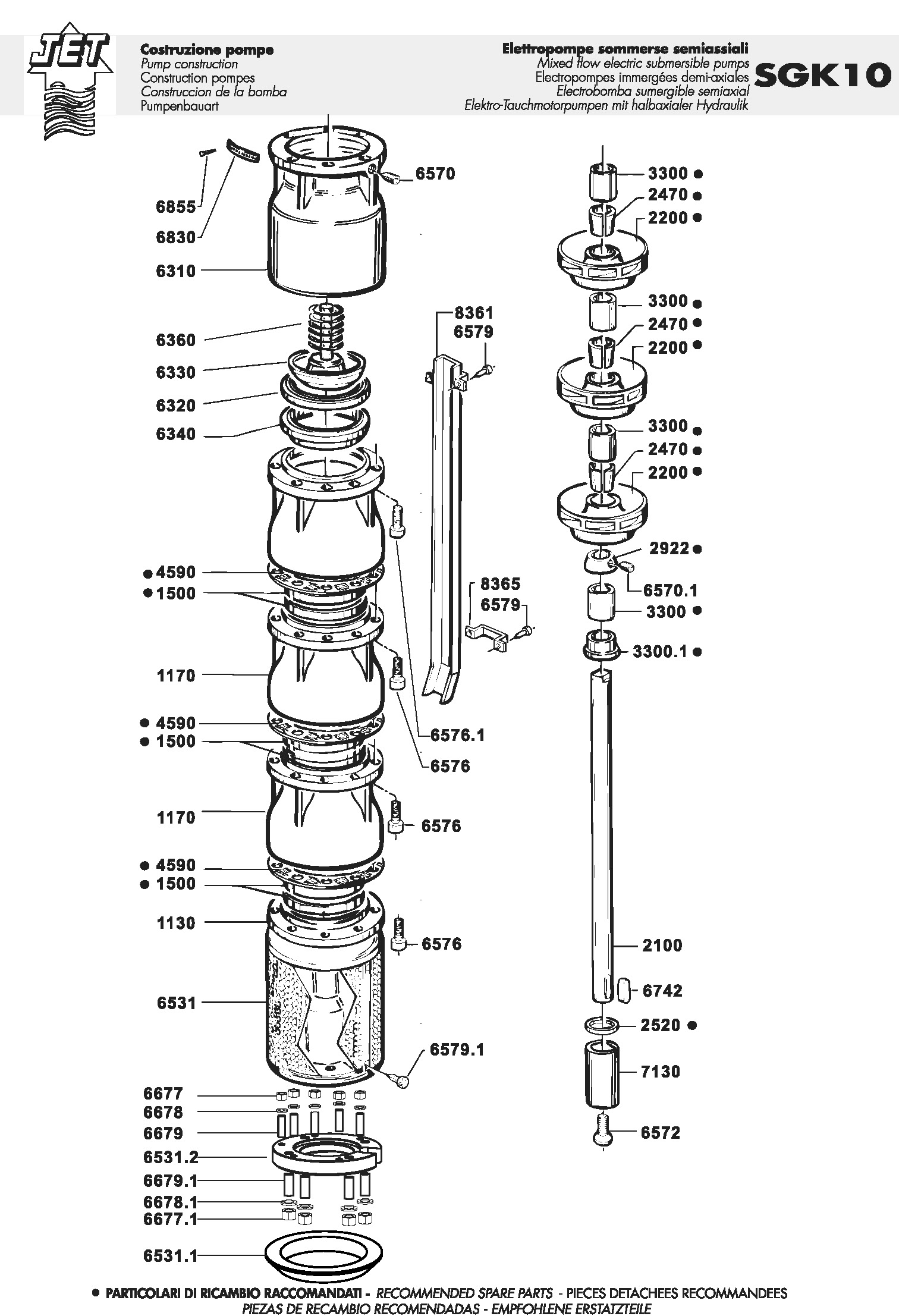

SGK10 Series Submersible Pump
The SGK10 series is a robust mixed flow electric submersible pump engineered for demanding industrial and agricultural environments. Designed for high efficiency and reliability, it features a durable construction with corrosion-resistant materials suitable for submerged applications in wells and tanks. This versatile pump serves a wide range of needs, including water supply, irrigation, pressure boosting, and fire-fighting systems.
Applications
- Typical Applications
- Water supplyAgricultural irrigationPressure boostingFire-fightingIndustrial applicationDrainage
Technical Specifications

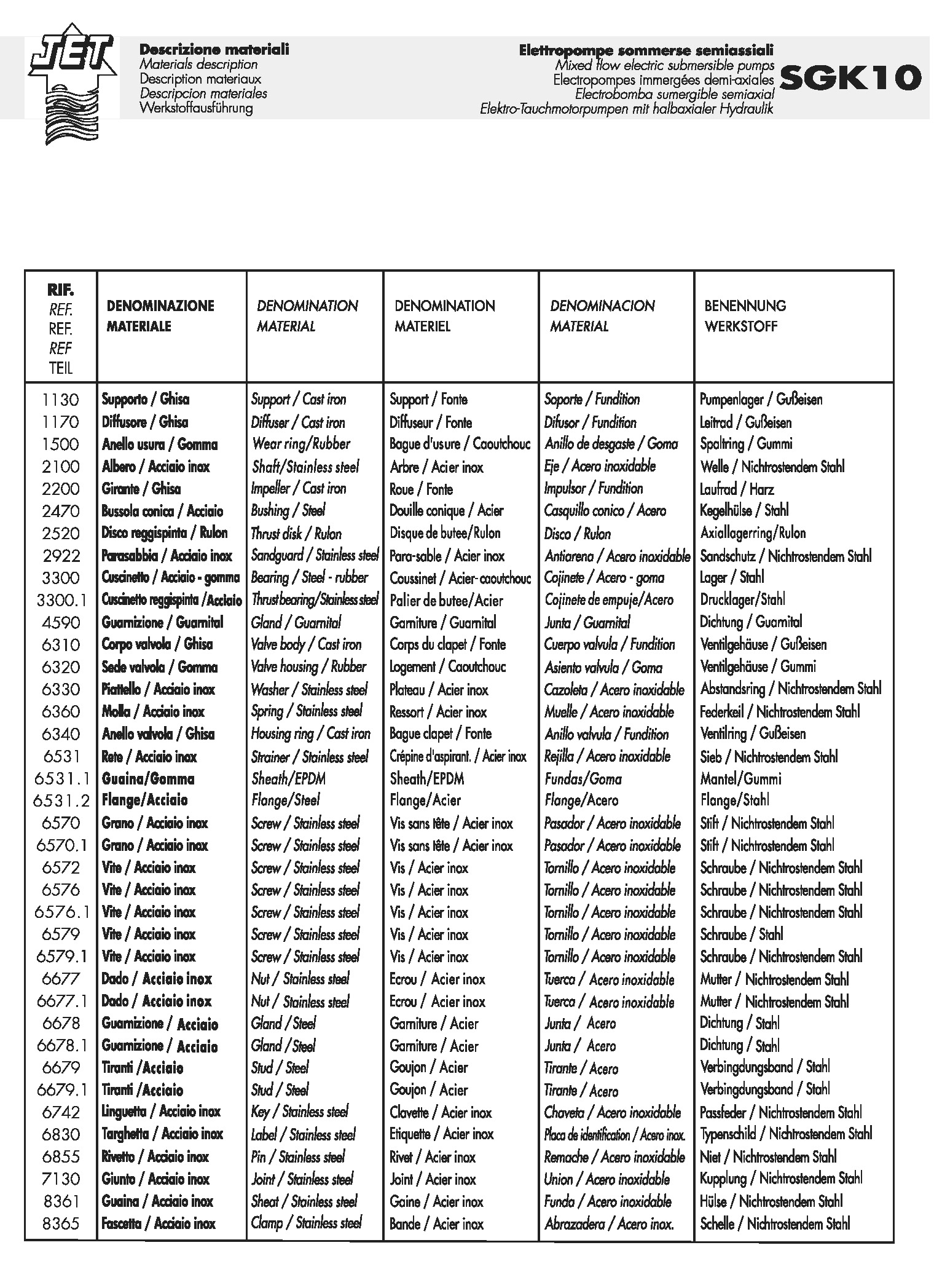

Key Materials Table
| Component | Material |
|---|---|
| Support | Cast iron |
| Diffuser | Cast iron |
| Impeller | Cast iron |
| Shaft | Stainless steel |
| Wear ring | Rubber |
| Thrust disk | Rulon |
| Strainer | Stainless steel |
- Pump Configuration
- Semi-axial mixed flow electric submersible pump
Features
Design Advantages
- High-efficiency motor performance
- Corrosion-resistant construction
- Integrated protective debris screen
- Designed for submerged operation
- Replaceable wear components
