Technical Specifications
Product Overview
Industrial Stretch Film Production

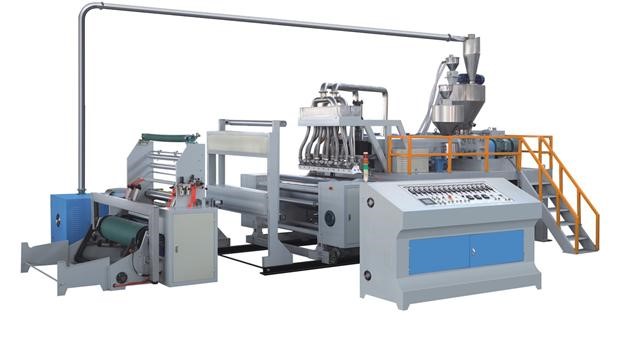

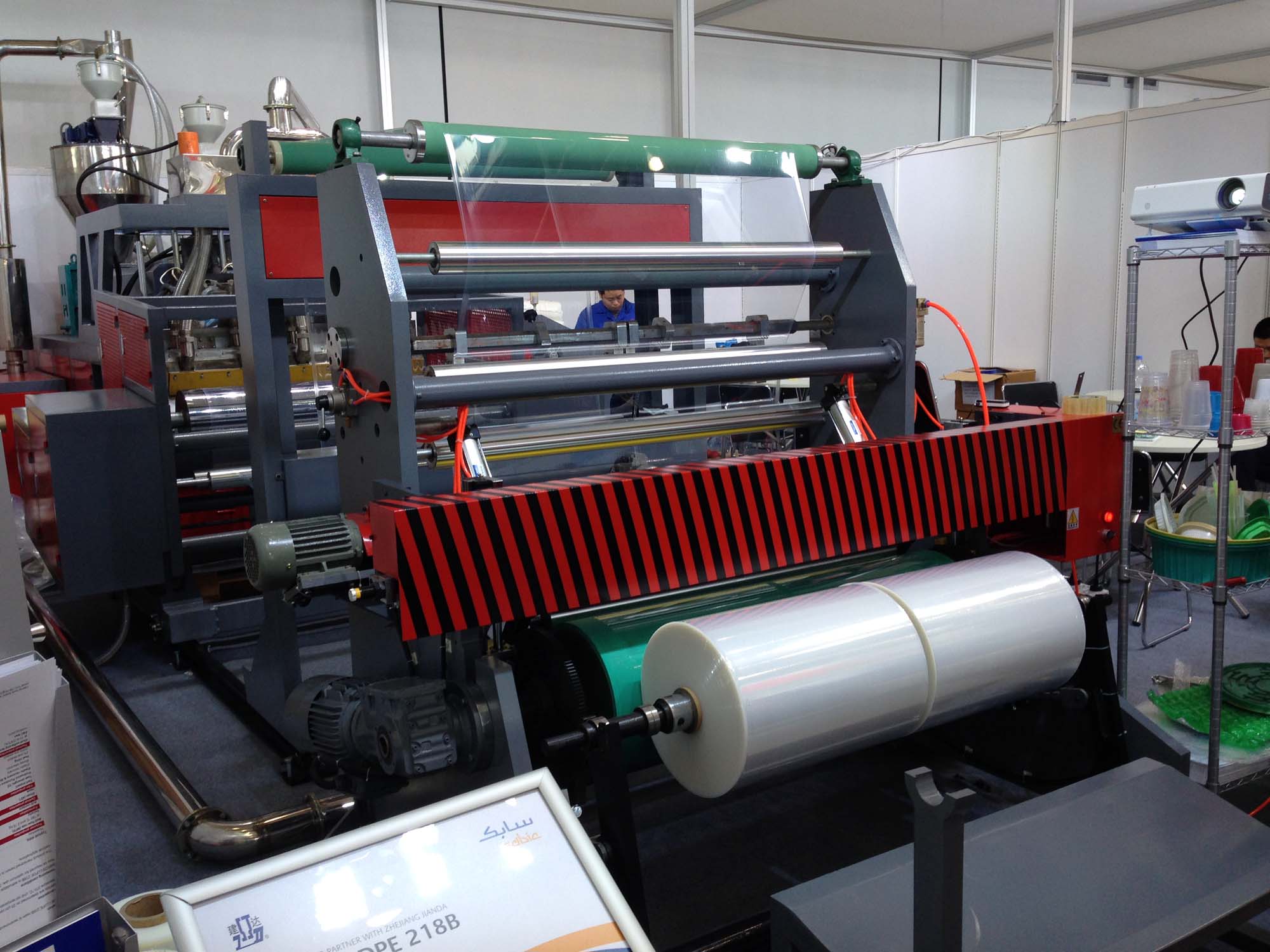

This high-performance extrusion line is engineered for the continuous production of high-quality casting stretch film using LDPE and LLDPE resins. It is specifically designed to meet the rigorous demands of industrial packaging, including applications for building materials, automotive components, and hardware. With integrated precision control systems and advanced winding mechanisms, this machine ensures consistent film thickness, superior clarity, and optimal mechanical properties.
Technical Specifications
- Model
- JDCPE90/60-1000
- Screw Diameter
- Φ90mm/Φ60mm
- L/D Ratio
- 33:1
Performance Metrics
Operational Capacity
180 kg/h
Max Output
200 m/min
Max Line Speed
Film Properties
Finished Film Parameters
| Parameter | Value |
|---|---|
| Finished Width | 1000mm (500*2 rolls) |
| Thickness Range | 0.01-0.03mm |
Electrical & Physical
- Power Supply
- 380V / 3Ph / 50Hz
- Total Power
- 180 kw
- Main Motor Power
- 55kw / 22kw
- Overall Dimensions
- 12000mm × 5000mm × 4000mm
Materials
- Compatible Resins
- LDPELLDPE
