Street Lighting Wire Connector
This street lighting connector is designed for low-voltage connections in street lighting systems. The connector features integrated insulation that provides waterproof performance and stable operation.
Technical Specifications
Overview
LDA Street Lighting Connectors
These low-voltage street lighting connectors are engineered for high reliability in electrical distribution systems. Constructed from high-strength aluminium alloy, they feature integrated insulation that ensures superior waterproofing and stable performance in various environmental conditions. Designed for safety and ease of installation, these connectors are suitable for ground connections, T-branch connections, and crossroad junctions.
Technical Standards
- Certified Standards
- IEC 61238-1:2003ANSI C119.1-2011
Technical Specifications
Key Features
- Integrated insulation for waterproofing
- Stable working performance
- Easy and safe installation
- Material
- Aluminium alloy with high mechanical strength

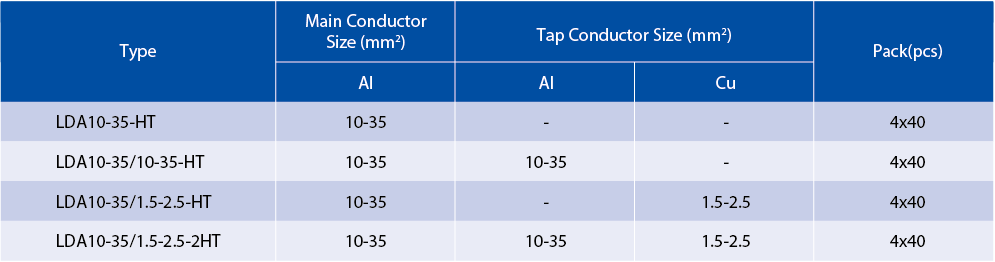

Product Models
Model Configuration Guide
| Model Type | Main Conductor (mm²) | Tap Conductor Al (mm²) | Tap Conductor Cu (mm²) | Packaging (pcs) |
|---|---|---|---|---|
| LDA10-35-HT | 10-35 | - | - | 4x40 |
| LDA10-35/10-35-HT | 10-35 | 10-35 | - | 4x40 |
| LDA10-35/1.5-2.5-HT | 10-35 | - | 1.5-2.5 | 4x40 |
| LDA10-35/1.5-2.5-2HT | 10-35 | 10-35 | 1.5-2.5 | 4x40 |
