Technical Specifications
Overview

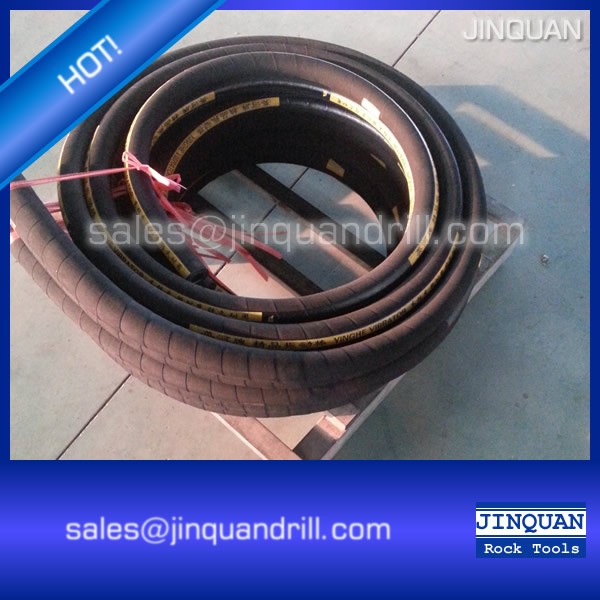

High-Performance Steel Wire Reinforced Hose
This steel wire reinforced flexible rubber hose is engineered for demanding industrial environments requiring high hardness and strong flexibility. Featuring a multi-layer construction with a spring liner, oil-proof canvas, and steel wire braiding, it provides exceptional abrasion resistance and superior sealing capabilities. It is an ideal solution for fluid transfer in garden machinery, construction equipment, and flexible transmission systems.
Technical Specifications
Available Diameters
| Outer Diameter (mm) | Inner Diameter (mm) |
|---|---|
| 16 | 9 |
| 20 | 10 |
| 22 | 10 |
| 24 | 13 |
| 30 | 16 |
| 32 | 18 |
| 36 | 20 |
| 42 | 25 |
Tensile Strength at Break
1,000 N
Outer Tensile Strength
Construction

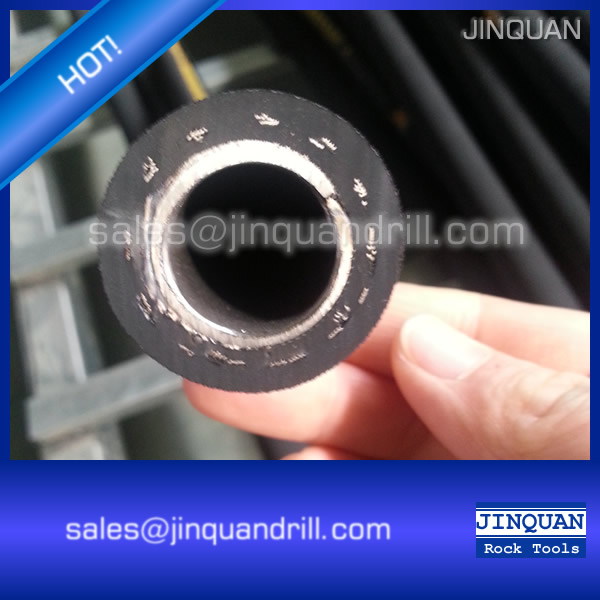

Layer Construction
- Internal spring liner
- Oil-proof canvas layer
- Cotton reinforcement
- Steel wire braided layer
- Wearable outer rubber
Performance Features
Environmental Resistance
Chemical ResistantExtreme Temperature ResistantWear Resistant
- Key Attributes
- High HardnessStrong FlexibilityAbrasion ResistanceOil-ProofHigh Pressure Resistance
Applications
Recommended Usage
- Garden machinery
- Construction machinery
- Hand tools
- Flexible transmission machinery
- Hydraulic systems
- Pneumatic tools
