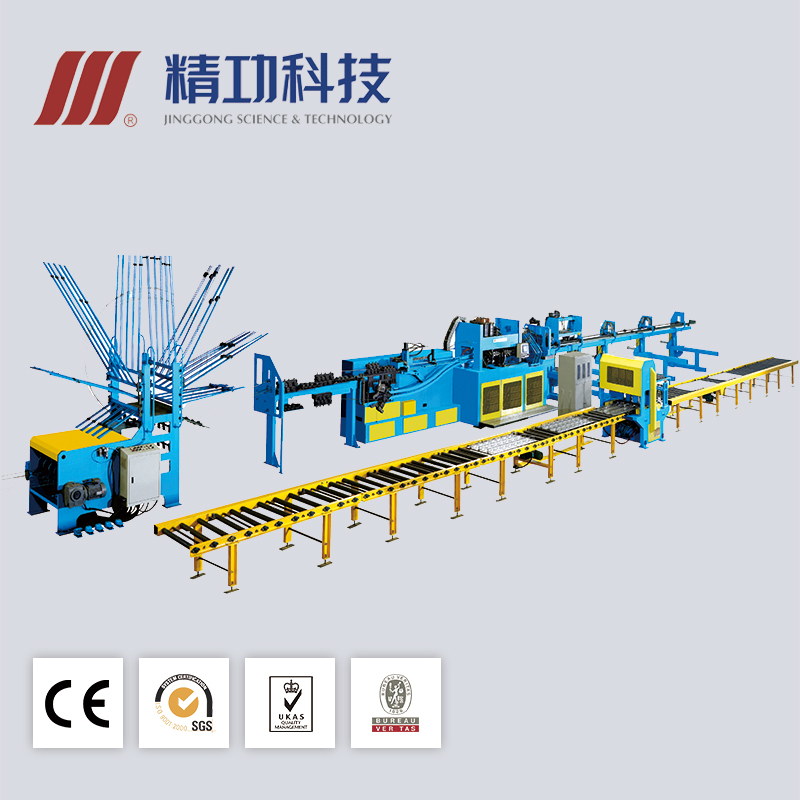

Steel Deck Production Line
This steel deck production line efficiently manufactures self-supported steel decks. It integrates material feeding, straightening, forming, cutting, and stacking processes.
Technical Specifications
Overview
Advanced Steel Deck Manufacturing System
This self-supported steel deck production line is a comprehensive manufacturing system designed for the efficient creation of steel structural building materials. It integrates truss welding, bottom panel forming, and board spot welding into a single, cohesive workflow. Engineered for high-volume environments, this system combines mechanical, electrical, hydraulic, and pneumatic technologies with microcomputer control to ensure precision and structural integrity.
Performance
Annual Production Capacity
300,000 sqm
Annual Production
Capabilities
Integrated Production Processes
- Truss welding
- Bottom panel forming
- Board spot welding
- Material feeding and straightening
- Automated cutting and stacking
Applications
- Suitable Applications
- Steel structural floor deckBridge constructionRailway infrastructure
Certifications
Compliance & Standards
CEISO 9001-2000SGSUKAS
