Steel Bow Shackle
This steel bow shackle is suitable for lifting applications. It is constructed from durable steel.
Technical Specifications
Overview

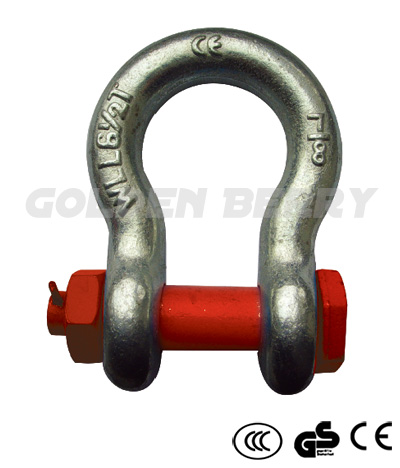

American Standard Bow Shackle (G2130)
This American Standard G2130 bow shackle is engineered for heavy-duty lifting and rigging applications. Constructed from high-strength alloy steel, it offers reliable performance and durability in demanding industrial environments. The design features a galvanized body with a distinctively painted bolt, ensuring high visibility and corrosion resistance.
Compliance & Quality
Industry Standards
CEGS
- Certifications
- ISO 9001:2008OHSAS 18001:2007ISO 14001:2004
Technical Data
Dimensions and Load Capacity
| Size (in) | W.L.L (t) | Weight (lbs) |
|---|---|---|
| 3/16 | 1/3 | 0.06 |
| 1/4 | 1/2 | 0.11 |
| 5/16 | 3/4 | 0.22 |
| 3/8 | 1 | 0.33 |
| 7/16 | 1-1/2 | 0.49 |
Design Features
Construction
- Galvanized steel body
- Red painted bolt
- High-strength alloy steel
