Technical Specifications
Product Overview

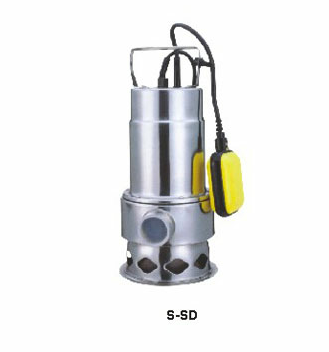

Robust Stainless Steel Submersible Pumps
The S/SD series submersible pump is a highly durable solution constructed from premium stainless steel, providing exceptional corrosion resistance in demanding drainage and irrigation applications. Its single open-impeller centrifugal design allows for efficient fluid movement in both partially and fully submerged conditions. The pump features an integrated cooling system where the pumped fluid effectively dissipates heat, ensuring reliable long-term operation.
Operational Limits
- Max Fluid Temperature
- 35 °C
- Max Ambient Temperature
- 40 °C
- Particle Size Handling
- 30mm dirty water5mm clean water
Performance Data
Technical Specifications by Model
| Model | Power (W) | HP | Max Head (m) | Max Flow (L/min) |
|---|---|---|---|---|
| SSD400 | 400 | 0.55 | 6 | 130 |
| SSD550 | 550 | 0.75 | 6 | 180 |
| SSD750 | 750 | 1 | 8 | 220 |
Logistics
Shipping Information
- Packing Dimension: 220x180x390mm
- Packing Quantity: 1800 units
