Technical Specifications
Product Overview

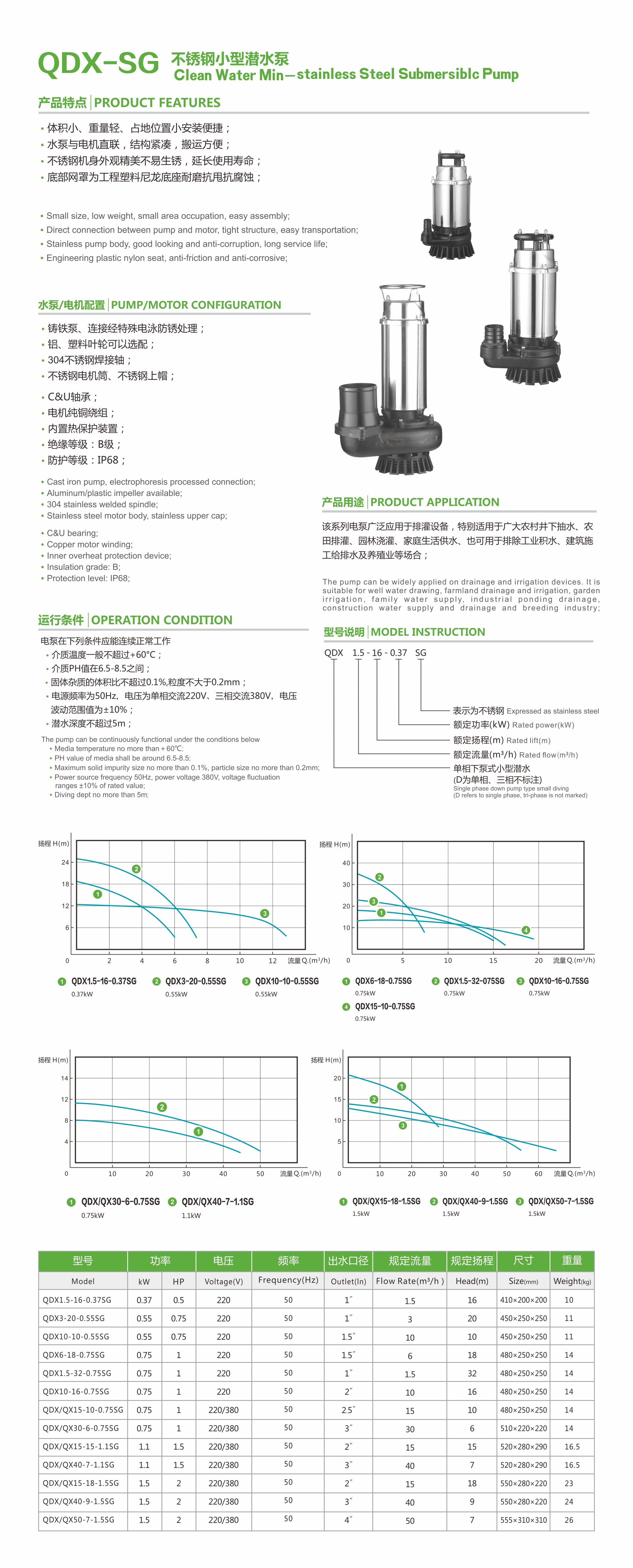

Professional Stainless Steel Submersible Pump
The QDX-SG series is a high-performance clean water submersible pump engineered for versatility and durability in various drainage and irrigation applications. Constructed with a 304 stainless steel body and spindle, it offers superior corrosion resistance for a long service life in demanding environments. Designed for efficiency, this unit features a compact, easy-to-install structure suitable for agriculture, residential water supply, and industrial drainage.
Technical Specifications
Insulation Grade
Class B
Protection Level
IP68
Operating Conditions
- Max media temperature: +60°C
- PH value: 6.5-8.5
- Max solid impurity size: 0.1% (up to 0.2mm particle size)
- Max diving depth: 5m
- Key Materials
- 304 Stainless SteelCopper windingEngineering plastic nylon seatCast iron connection
Performance Data
Model Specifications
| Model | Power (kW) | Outlet (In) | Weight (kg) |
|---|---|---|---|
| QDX1.5-16-0.37SG | 0.37 | 1" | 10 |
| QDX3-20-0.55SG | 0.55 | 1" | 11 |
| QDX6-18-0.75SG | 0.75 | 1.5" | 14 |
| QDX/QX15-18-1.5SG | 1.5 | 2" | 23 |
| QDX/QX50-7-1.5SG | 1.5 | 4" | 26 |
