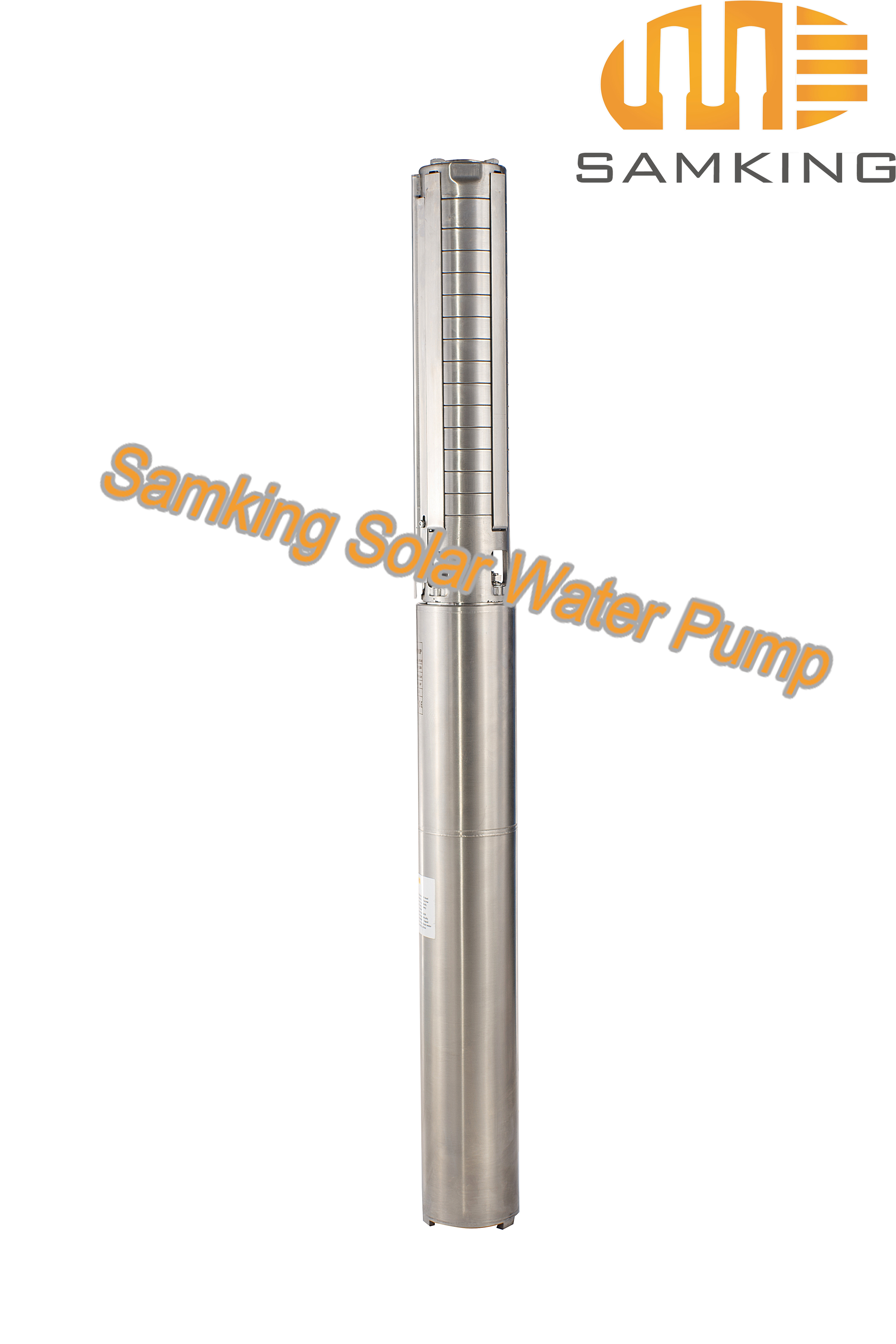

Stainless Steel Solar Water Pump
This submersible pump is designed to be powered by both AC and DC sources without modification or additional equipment. Its motor speed ranges from 500-3600rpm depending on power input and load.
Technical Specifications
Overview
High-Efficiency Hybrid Solar Pumping Solution
This stainless steel solar water pump is designed for reliable water extraction in off-grid or remote locations. Featuring an AC/DC hybrid power capability, it offers flexible operation using both solar energy and standard electrical grids. With built-in intelligent controls, including dry-running and over-current protection, this system ensures long-term durability and low operating costs for irrigation and water supply applications.
Performance Metrics
Performance Specifications
75 m
Max Head
90 L/min
Max Flow
0.5 HP
Power
1.2 kW
Max Input Power
Technical Specifications
Electrical Requirements
| Parameter | Value |
|---|---|
| DC Voltage Range | 60-380 Vmp |
| AC Voltage Range | 90-240 V |
| Max VOC | 440 V |
| Solar Panel Setup | 300W x 3 |
Physical Dimensions
- Diameter: 4 inch
- Discharge: 1.25 inch
- Max Submergence Depth: 150m
Features & Protection
Safety Protections
Dry-running protectionOver-current protectionInput Over-voltage ProtectionOverload protective
- Core Features
- Brushless MotorWater CoolingFrequency ConverterSoft StartingThrust Bearing System
- Warranty
- 2 years
