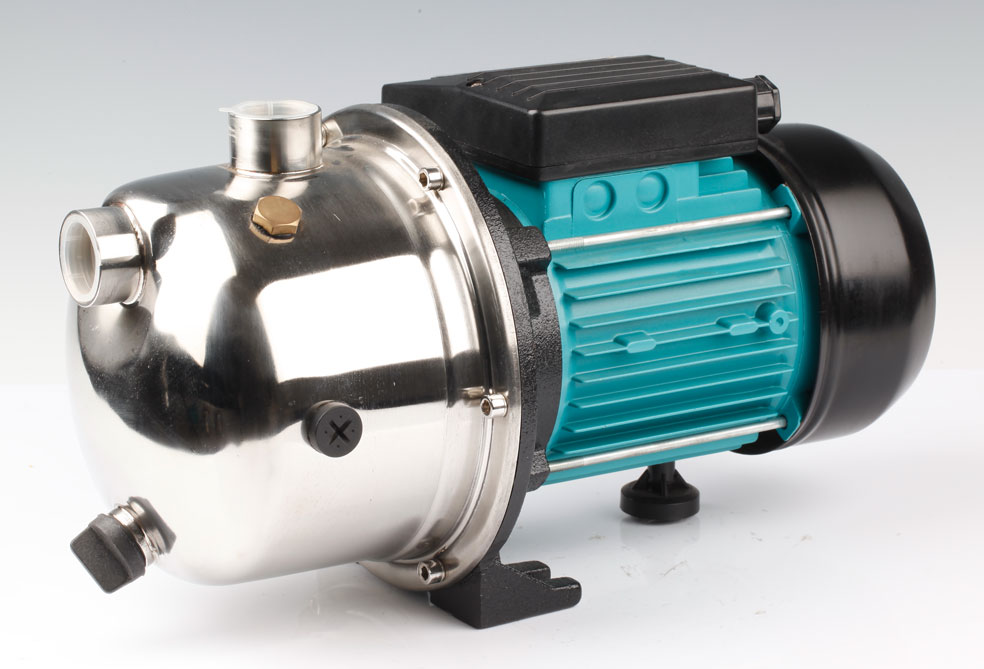

Stainless Steel Self-Priming Jet Pump
This self-priming jet pump is made with stainless steel for durability. It is designed for efficient water transfer and boosting pressure in applications such as domestic water supply, irrigation, and industrial use.
Technical Specifications
Product Overview
Professional Self-Priming Jet Pump
This stainless steel jet pump offers exceptional hydraulic performance and significant pressure capacity, making it a reliable solution for domestic and medium-sized industrial water systems. Engineered for versatility, the unit is capable of suction depths up to 8 meters and is fully compatible with clean water and soda-water applications. Its robust design ensures consistent water lifting and distribution, ideal for residential fittings and pressurized supply tanks.
Technical Specifications
Performance Highlights
50 L/min
Max Flow Rate
72 m
Max Head
8 m
Max Suction Depth
0.75 kW
Motor Power
2,850 rpm
Rotation Speed
Electrical Requirements
| Parameter | Value |
|---|---|
| Voltage | 220 V |
| Frequency | 50 Hz |
| Power Rating | 1.0 HP |
| Insulation Class | Class B |
Construction & Materials
- Design Features
- Stainless Steel BodySelf-PrimingCooling FinsCorrosion Resistant
Application Compatibility
Recommended Use
- Domestic water supply
- Water lifting and distribution
- Irrigation
- Small to medium sized tank systems
- Clean water applications
