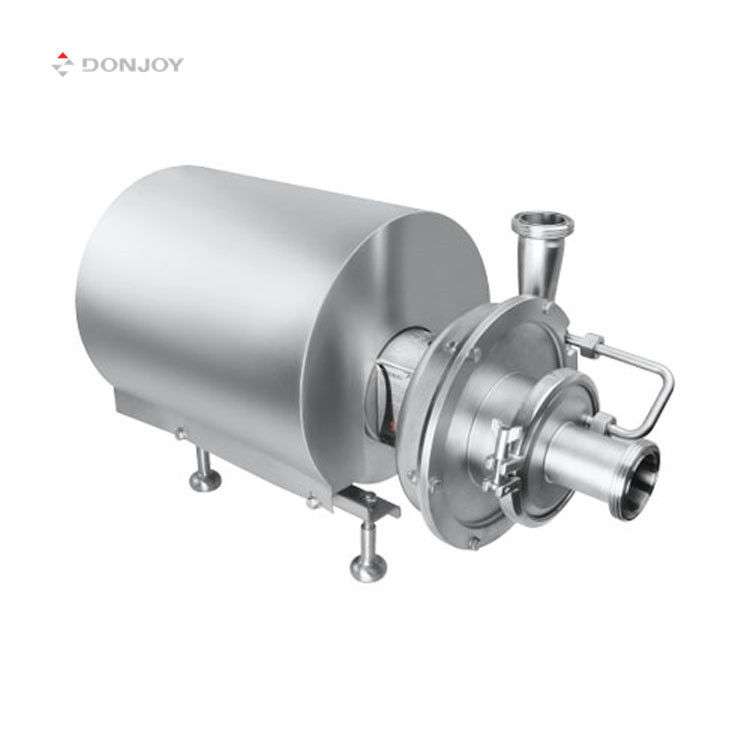

Stainless Steel Self-Priming Centrifugal Pump
This self-priming centrifugal pump is engineered for efficient fluid transfer. Its stainless steel construction ensures corrosion resistance and durability.
Technical Specifications
Product Overview
High-Efficiency Fluid Transfer
The ZLX series self-priming centrifugal pump is designed for high-performance fluid delivery in demanding hygienic environments. Engineered with a specialized leading impeller, it minimizes cavitation while efficiently handling materials with gas or air content up to 500CP.S viscosity. Its robust stainless steel construction ensures excellent corrosion resistance and meets the stringent cleanliness requirements of the food, pharmaceutical, and chemical industries.
Performance Metrics
Operating Metrics
70 m3/h
Max Flow Rate
70 H/M
Max Head
500 mPas
Max Viscosity
Technical Specifications
Surface Treatment (Ra)
- ≤ 0.8μm
- ≤ 0.6μm
- ≤ 0.4μm
Mechanical Seal Options
Single machine sealDouble machine seal
- Operating Temperature
- -20 °C to 150 °C
- Material Grades
- 304316L1.4311.4404ASME BPE 316L1.4435 NB2
- Inlet/Outlet Connections
- ThreadClampFlangeAseptic Flange
Compliance and Standards
Certifications & Standards
- 3-A-02-10
- MD/06/42-EC
- FDA 177.2600
- USP CLASS-II
- EG/VO1935/2004
