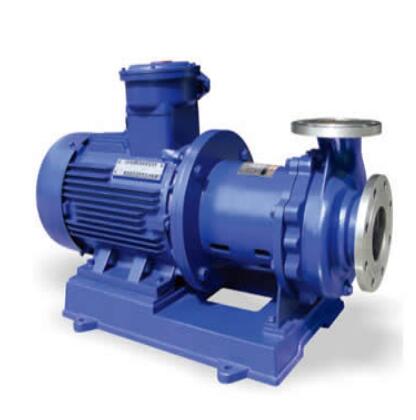

Stainless Steel Magnetic Drive Chemical Pump
This pump is constructed from stainless steel for corrosion resistance. It is designed to transfer chemical fluids using a magnetic drive.
Technical Specifications
Overview
Industrial Magnetic Drive Pump
The CQB stainless steel magnetic drive pump is a sealless centrifugal solution engineered for the safe transfer of corrosive, flammable, and hazardous liquids. By utilizing magnetic torque transmission instead of traditional mechanical seals, this pump effectively eliminates leakage risks, ensuring high environmental and operational safety. Constructed from durable stainless steel, it is built to withstand demanding applications in chemical processing, pharmaceuticals, and petrochemical industries.
Technical Specifications
- Wet Parts Material
- Stainless Steel
- Connection Types
- FlangePipe
- Medium Temperature Range
- -20 to 100°C
- Max Kinematic Viscosity
- ≤30 x 10^-6 m³/s
Performance Metrics
Flow Rate Capacity
1.9 m³/h
Min Flow
120 m³/h
Max Flow
Head Range
20 m
Min Head
80 m
Max Head
- Power Output Range
- 0.75 - 75 KW
Model Selection
Performance Data by Model
| Model | Flow (m³/h) | Head (m) | Power (kW) |
|---|---|---|---|
| CQB32-20-125 | 3.2 | 20 | 1.1 |
| CQB32-20-160 | 3.2 | 32 | 1.5 |
| CQB40-25-105 | 6.3 | 12.5 | 1.1 |
| CQB40-25-125 | 6.3 | 20 | 2.2 |
| CQB40-25-160 | 6.3 | 32 | 3 |
| CQB40-25-200 | 6.3 | 50 | 5.5 |
| CQB50-40-85 | 12.5 | 8 | 1.1 |
| CQB50-32-105 | 12.5 | 12.5 | 2.2 |
| CQB50-32-125 | 12.5 | 20 | 3 |
| CQB50-32-160 | 12.5 | 32 | 4 |
| CQB50-32-200 | 12.5 | 50 | 7.5 |
| CQB50-32-250 | 12.5 | 80 | 18.5 |
| CQB65-50-125 | 25 | 20 | 5.5 |
| CQB65-50-160 | 25 | 32 | 7.5 |
| CQB65-40-200 | 25 | 50 | 15 |
| CQB65-40-250 | 25 | 80 | 22 |
| CQB80-65-125 | 50 | 20 | 7.5 |
| CQB80-65-160 | 50 | 32 | 15 |
| CQB80-50-200 | 50 | 50 | 18.5 |
| CQB80-50-250 | 50 | 80 | 30 |
| CQB100-80-125 | 100 | 20 | 15 |
| CQB100-80-160 | 100 | 32 | 22 |
| CQB100-65-200 | 100 | 50 | 30 |
| CQB100-65-250 | 100 | 80 | 45 |
