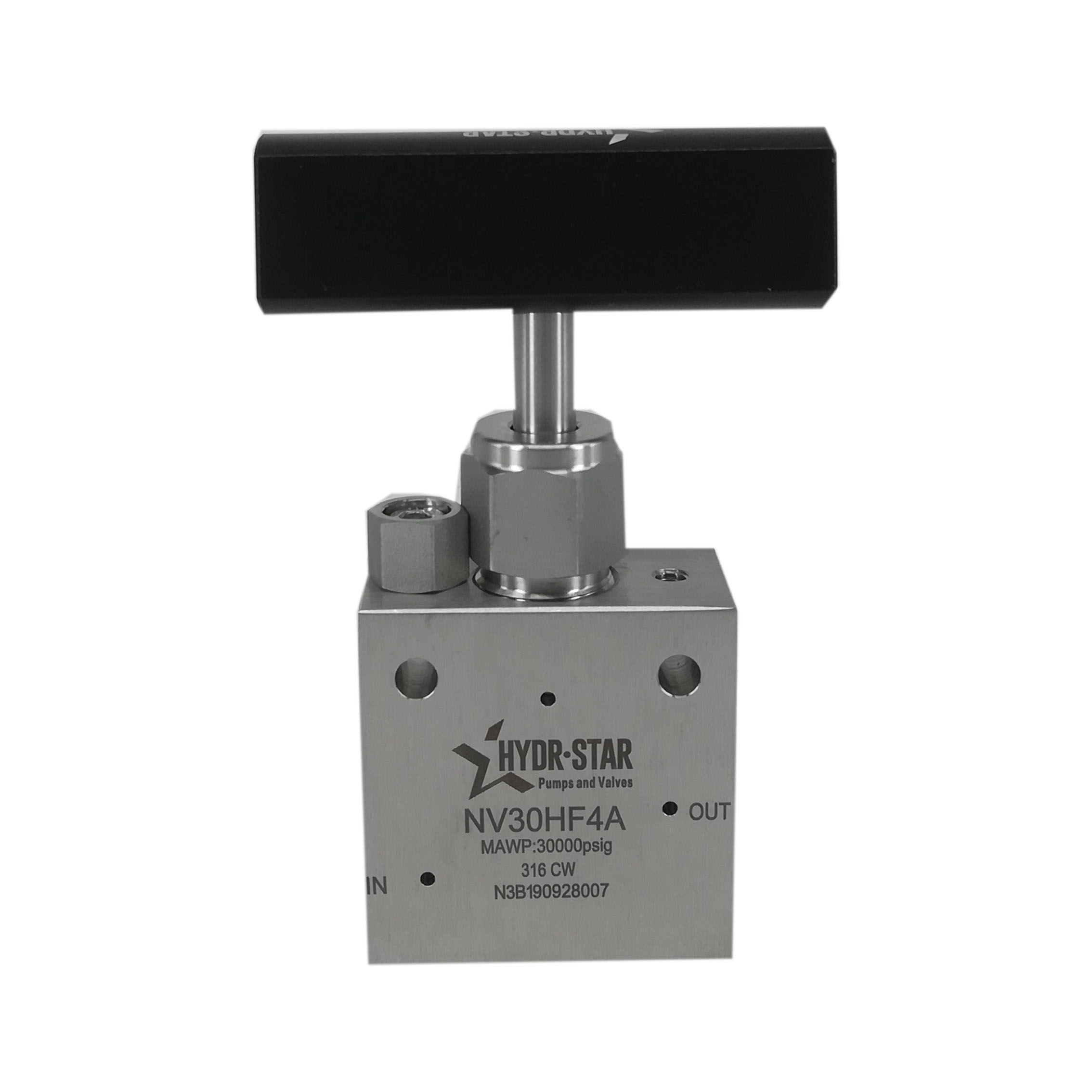

Stainless Steel High-Pressure Needle Valve
This needle valve features a 316 stainless steel body, offering excellent corrosion resistance and high tensile strength. It is designed with a non-rotating stem to prevent galling and includes a gland locking device to maintain packing integrity.
Technical Specifications
Overview
High-Performance Stainless Steel Needle Valve
This high-pressure needle valve features a durable 316 cold-work stainless steel body, offering exceptional corrosion resistance and high tensile strength. Designed for demanding flow control applications, it includes a no-rotation stem to prevent galling and a gland locking device for enhanced safety. With multiple pressure ratings and configuration options available, it provides reliable sealing and precise metering for various industrial fluid systems.
Technical Specifications
Working Temperature
-73 °C
Min Temperature
232 °C
Max Temperature
Body Patterns
- Straight
- Angle
- 3-way / 1 on pressure
Stem Options
Vee StemRegulating Stem
Maintenance Features
- Replaceable seat options available
- Gland locking device to prevent loosening
- Packing blow stem threads for reliable sealing
- Construction Material
- 316 Cold-work Stainless Steel
- Available Pressure Levels
- 15000 psig20000 psig30000 psig60000 psig
- Mounting Options
- Bracket mountingPanel mounting
Ordering Reference

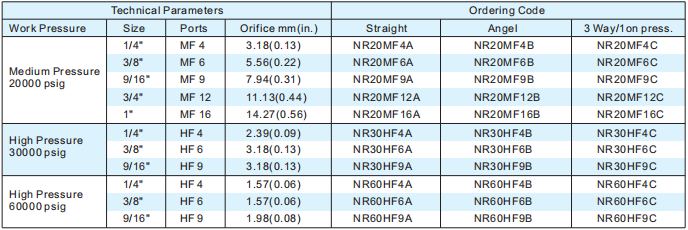

Technical Parameters Overview
| Pressure Rating | Port Size | Orifice (mm) |
|---|---|---|
| Medium Pressure | 1/4" | 3.18 |
| Medium Pressure | 3/8" | 5.56 |
| Medium Pressure | 9/16" | 7.94 |
| Medium Pressure | 3/4" | 11.13 |
| Medium Pressure | 1" | 14.27 |
| High Pressure | 1/4" | 2.39 |
| High Pressure | 3/8" | 3.18 |
| High Pressure | 9/16" | 3.18 |
