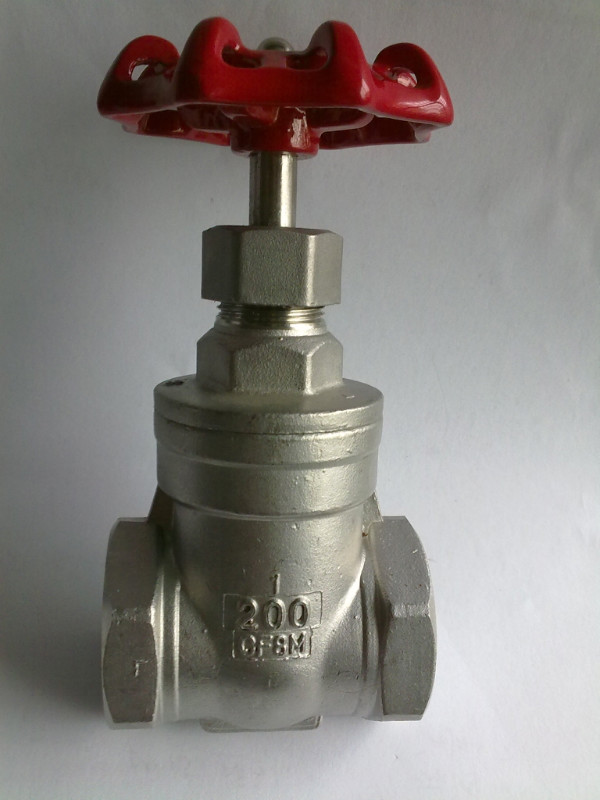

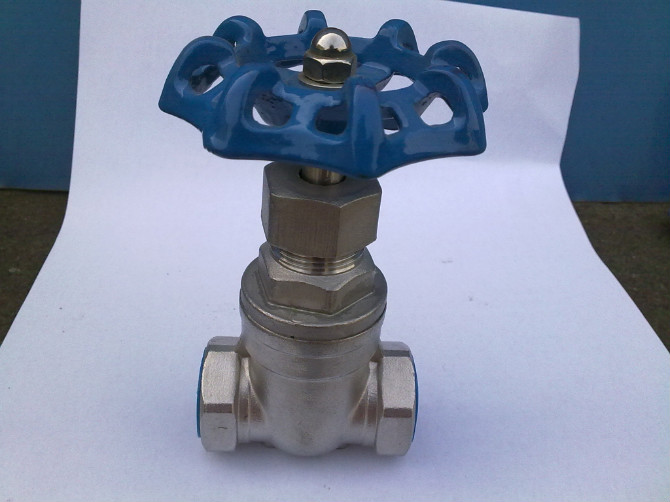

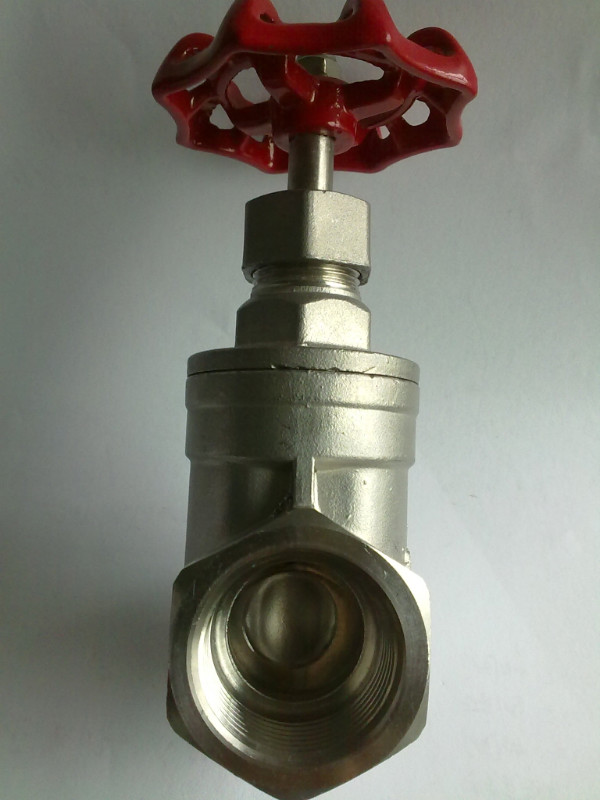

Stainless Steel Gate Valve with Female Threaded Ends
This stainless steel gate valve is designed for industrial applications requiring reliable flow control. It is equipped with female threaded ends for easy installation and secure connection to piping systems.
Technical Specifications
Product Overview
Industrial Stainless Steel Gate Valve
This high-performance gate valve is engineered for demanding industrial fluid control applications, providing reliable shutoff capabilities. Constructed via investment casting, it offers superior durability and corrosion resistance suitable for water, oil, gas, and various chemical mediums. The design features a female threaded end connection for seamless integration into existing piping systems and manual control via an ergonomic handwheel.
Technical Specifications
Working Pressure
1,000 Psi
Working Pressure
64 PN
Pressure Rating
- Operating Temperature
- -60°F to 450°F (-20°C to 232°C)
- Available Materials
- ASTM A351-CF8M (316)ASTM A351-CF8 (304)ASTM A216-WCBDIN 1.4308DIN 1.4408
Connection and Compatibility
Thread Standards
- G
- BSPT
- NPT
- BSP
- DIN 259/2999
- ISO 7/1-1982
Compliance and Standards
Manufacturing Standards
| Criteria | Standard |
|---|---|
| Design & Making | ANSI B 16.34 |
| Inspection & Test | API 589 |
| Structure Length | GB/T 15188.3-94 |
Applications
Applicable Mediums
WOGNitric AcidAcetic Acid
