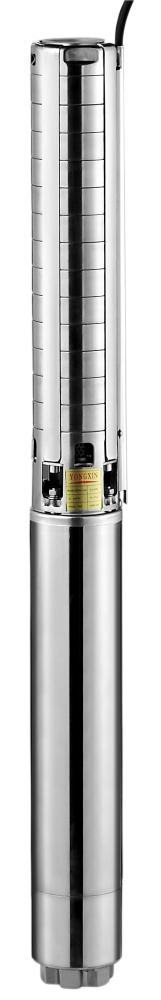

Stainless Steel Deep Well Submersible Pump
This submersible pump is designed for underwater operation and features a compact structure. Its small size and light weight make installation and maintenance easy, while providing safe operation and energy savings.
Technical Specifications
Overview
High-Performance Submersible Pump
This stainless steel multi-stage centrifugal submersible pump is engineered for efficient water extraction from deep wells and boreholes. Constructed with corrosion-resistant materials, it offers exceptional durability and performance in demanding environments, including high-sand content conditions. Its compact design ensures compatibility with narrow well casings, making it an ideal solution for agricultural, industrial, and domestic water supply systems.
Technical Specifications
Insulation Class
Class B
- Operating Speed
- 2850 rpm
- Outlet Size
- G1 1/4" to G1 1/2"
- Maximum Liquid Temperature
- 35 °C
- Motor Power Range
- 0.75 kW to 7.5 kW
- Power Supply Options
- Single-phase (220-240V)Three-phase (380-415V)
Application & Features
Typical Applications
- Water supply systems
- Booster systems
- Garden and farming irrigation
- Lowering underground water levels
- Fluid Compatibility
- Dilute and clean non-corrosive liquids without solid grains or fibers
Performance Data
Model Performance Summary
| Model | Power (kW) | Length (mm) | Weight (kg) |
|---|---|---|---|
| 4SP8-05A | 0.75 | 688 | 15.5 |
| 4SP8-07A | 1.1 | 743 | 16 |
| 4SP8-10A | 1.5 | 874 | 18.5 |
| 4SP8-12A | 2.2 | 967 | 21 |
| 4SP8-14A | 2.2 | 1,022 | 22 |
