Square Inlay Backlit LED Panel Light
This slim panel light features a DOB driver solution and a slim design. Compared to sidelit panel lights, this backlit panel light offers enhanced brightness and an efficacy of 100 lumens per watt.
Technical Specifications
Product Overview
High-Efficiency DOB Slim Panel Light
The RPL7 series is a slim-design backlit LED panel light utilizing a DOB (Driver on Board) solution for enhanced reliability and performance. It offers a high luminous efficacy of 100 lm/w, making it a superior and more energy-efficient replacement for traditional sidelit aluminum panel lights. Designed for inlay mounting, this square panel provides uniform illumination suitable for a variety of professional and commercial environments.
Key Performance
Performance Highlights
100 lm/w
Luminous Efficacy
1,663.76 lm
Luminous Flux
80 Ra
Color Rendering Index
Technical Specifications
Mounting Type
Inlay Mounting
- Available Power Ratings
- 5W7W9W12W18W24W36W
- Input Voltage
- 100-265V
- Shape
- Square

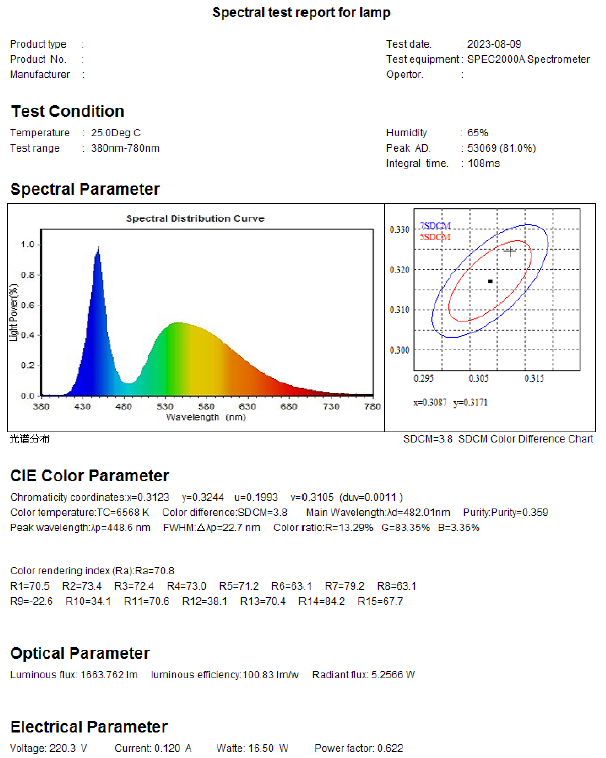

Optical Parameters
Spectral Characteristics
- Peak Wavelength: 448.6 nm
- FWHM: 22.7 nm
- Chromaticity Coordinates: x=0.3123, y=0.3244
- Color Difference (SDCM): 3.8
- Color Temperature
- 6568 K
Electrical Data
Measured Electrical Parameters
| Parameter | Value |
|---|---|
| Test Voltage | 220.3 V |
| Current | 0.120 A |
| Power Factor | 0.622 |
| Actual Wattage | 16.50 W |
Design Features
Design Advantages
- DOB (Driver on Board) solution
- Ultra-slim profile
- Backlit technology for higher brightness
- Uniform light distribution
