Square Duct Fan
Square duct fans are designed for efficient air movement in duct systems. These fans feature a robust, square housing for easy integration into existing ductwork.
Technical Specifications
Product Overview
High-Efficiency Ventilation Solutions
These square duct fans are engineered for efficient, one-directional airflow in ducted ventilation systems. Featuring a robust metal housing and an optimized impeller, they provide quiet operation, energy efficiency, and long-lasting performance. With multiple sizing and power configurations available, they are suitable for a wide range of commercial and industrial air handling requirements.

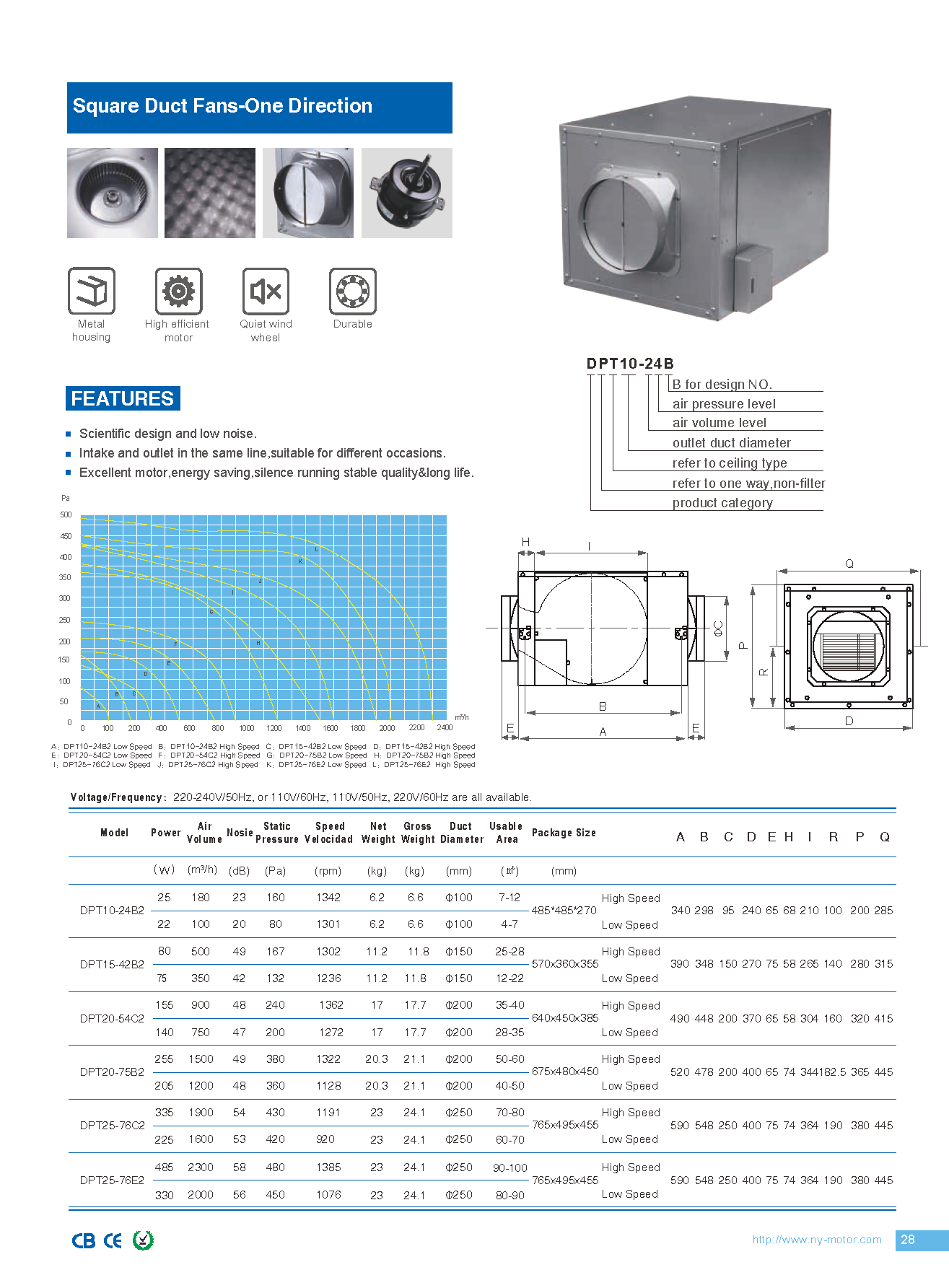

Technical Specifications
Performance Models Overview
| Model | Power (W) | Air Volume (m³/h) | Duct Diameter (mm) | Weight (kg) |
|---|---|---|---|---|
| DPT10-24B2 | 25 | 180 | 100 | 6.2 |
| DPT15-42B2 | 80 | 500 | 150 | 11.2 |
| DPT20-54C2 | 155 | 900 | 200 | 17 |
| DPT20-75B2 | 255 | 1,500 | 200 | 20.3 |
| DPT25-76C2 | 335 | 1,900 | 250 | 23 |
| DPT25-76E2 | 485 | 2,300 | 250 | 23 |
- Electrical Standards
- 220-240V/50Hz110V/60Hz110V/50Hz220V/60Hz
Key Features
Core Product Benefits
- Scientific design for minimized noise levels
- One-direction intake and outlet alignment
- High-efficiency motor for energy savings
- Stable construction for extended product life
- Versatile installation options for restricted spaces
Performance Highlights
2,300 m³/h
Max Air Volume
250 mm
Max Duct Diameter
58 dB
Max Noise Level
