Square Column Vertical Drilling Machine
This square column vertical drilling machine is designed for drilling, reaming, spot facing, counter boring, and tapping operations. Its modular design and advanced technology make it suitable for diverse industrial applications.
Technical Specifications
Overview

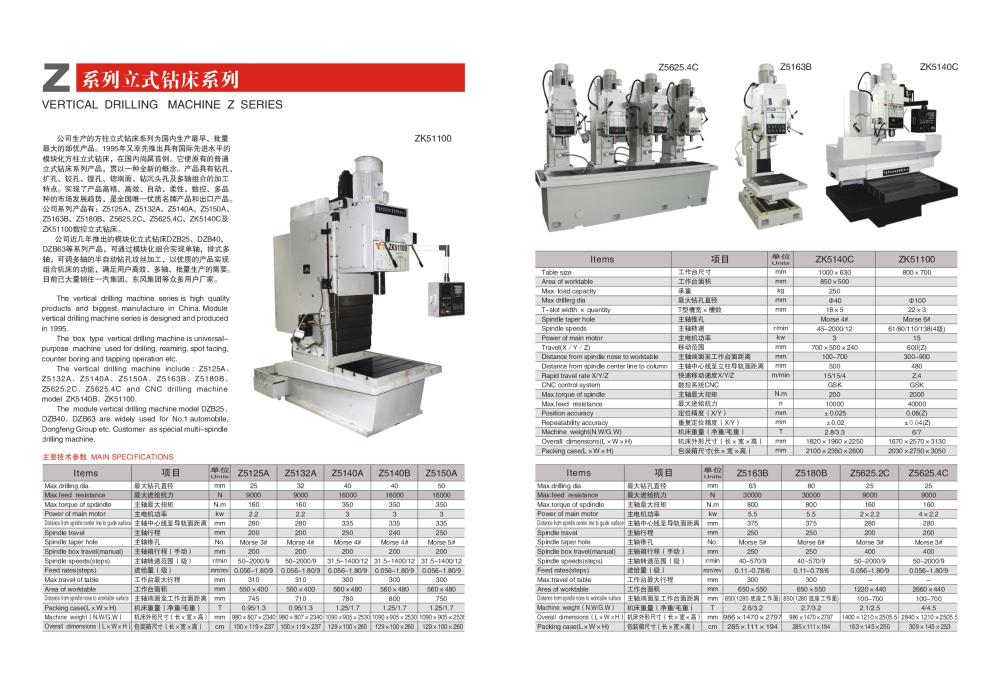

Versatile Square Column Vertical Drilling Series
This series of square column vertical drilling machines is designed for universal industrial applications, offering high rigidity, accuracy, and efficiency. The machines are capable of drilling, counterboring, reaming, countersinking, and tapping operations, with advanced models featuring modular designs for single or multi-spindle configurations. Built for both small-batch and high-volume production, they provide a reliable solution for complex machining needs with low noise and easy operation.
Technical Specifications
Key Performance Metrics
2.2 kW
Min Motor Power
15 kW
Max Motor Power
2,000 rpm
Max Spindle Speed
Operational Features
- Drilling
- Counterboring
- Reaming
- Countersinking
- Tapping
- Automatic Spindle Tapping Reversal
- Jiggle Feed for Deep Holes
Model Specifications Summary
| Model | Max Drill Dia (mm) | Motor Power (kW) | Spindle Taper |
|---|---|---|---|
| Z5125A | 25 | 2.2 | Morse 3 |
| Z5140A | 40 | 3 | Morse 4 |
| Z5163B | 63 | 5.5 | Morse 5 |
| ZK51100 | 100 | 15 | Morse 6 |
- Available Models
- Z5125AZ5132AZ5140AZ5140BZ5150AZ5163BZ5180BZ5625.2CZ5625.4CZK5140CZK51100
