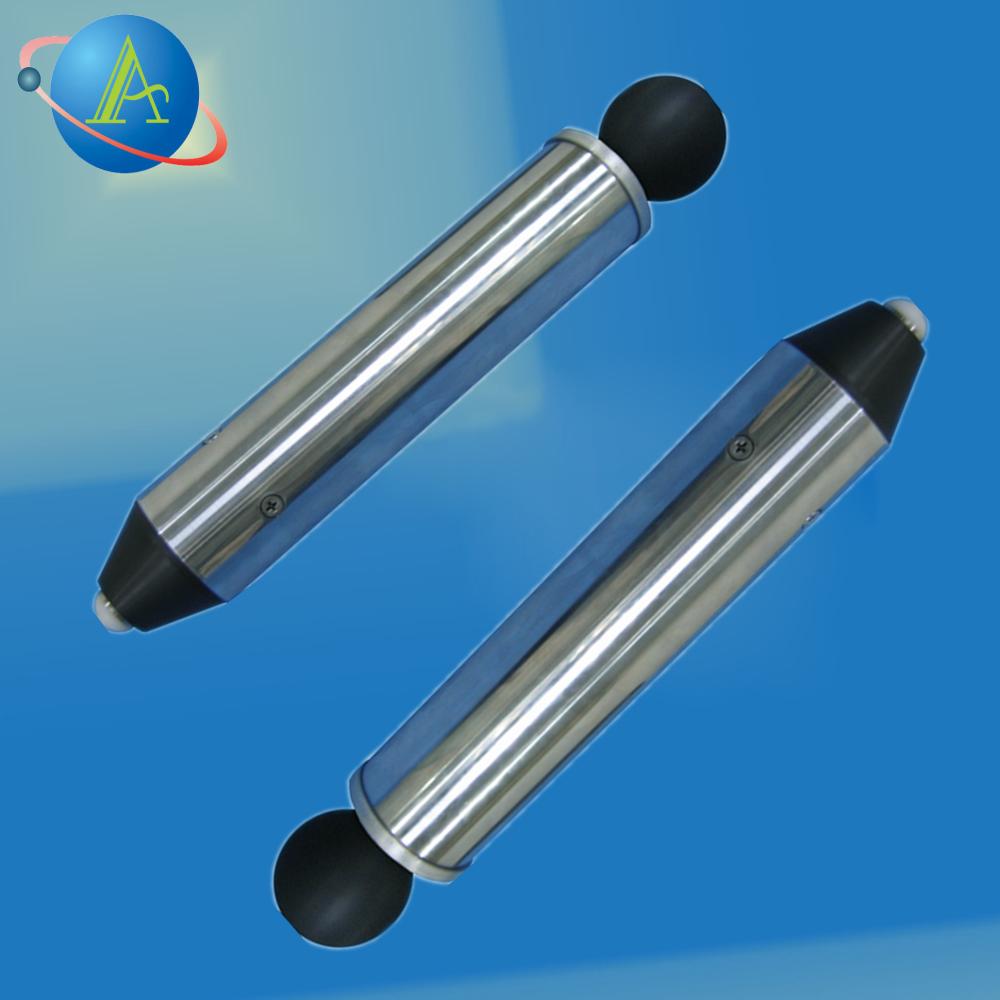

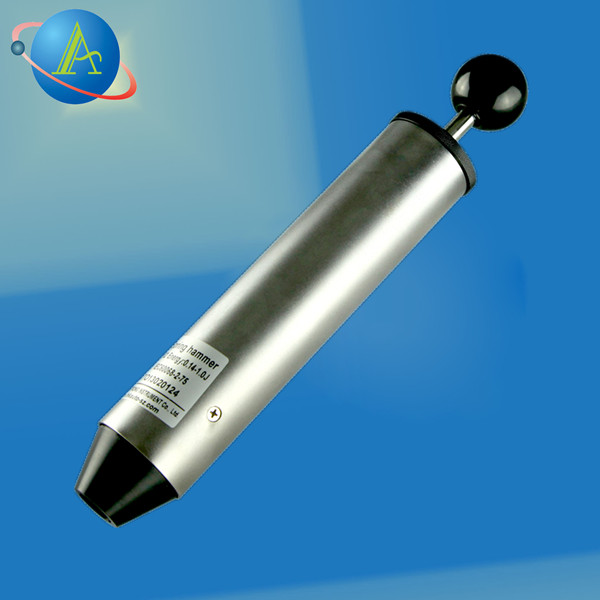

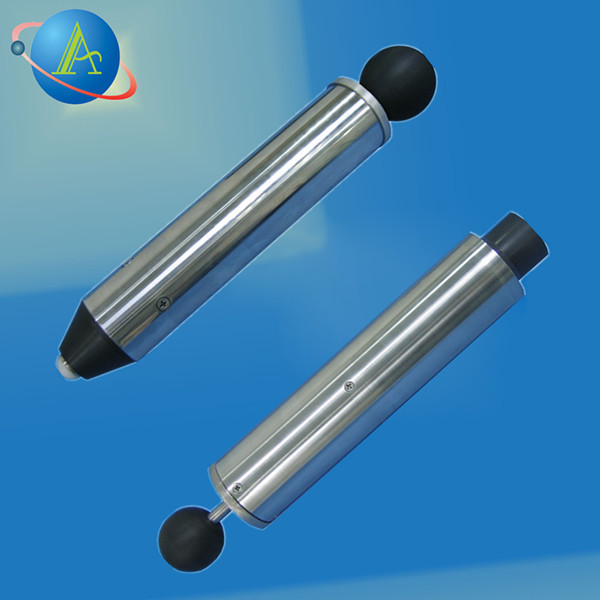

Spring Operated Impact Test Hammer
This spring operated impact test hammer assesses the durability of electrical equipment. It simulates mechanical stresses to ensure products meet safety and performance standards.
Technical Specifications
Overview
Precision Impact Testing
The Spring Operated Impact Test Hammer is a professional-grade instrument designed to verify the mechanical robustness and durability of electrical appliance enclosures. By simulating the mechanical stresses and accidental impacts that equipment may encounter during normal use, this device ensures compliance with critical safety standards. Built from high-quality stainless steel and alloy, it provides consistent, repeatable impact force for reliable quality control and product development.
Standards & Compliance
- Compliance Standards
- IEC60068-2-75IEC884UL1244
Technical Specifications
Available Impact Energies
- 0.14 J
- 0.20 J
- 0.35 J
- 0.50 J
- 0.70 J
- 1.0 J
- 2.0 J
- Body Material
- Stainless steel or alloy
Dimensions & Components
Apparatus Dimensions
| Component | Measurement |
|---|---|
| Hammer Head Diameter | Ø26-0.5 mm / Ø47-0.2 mm |
| Release Cone Diameter | Ø19.2±0.1 mm |
| Internal Diameter | Ø18.5±0.1 mm |
| Cone Spring Diameter | Ø50+0.5 mm |
| Hammer Spring Length | 211±0.5 mm |
| Release Cone Radius | R=10-0.1 mm |
Models
Model Variations
| Model | Type | Energy Range |
|---|---|---|
| AUTO-103 | Single spring | 0.14J - 1.0J |
| AUTO-102 | 2J spring | 2.0J |
| AUTO-106 | Universal | 0.14J - 1.0J |
| AUTO-106A | Universal | 0.14J - 1.0J |
