Product Overview

Split Open Circuit Solar Water Heater

This high-efficiency split solar water heating system offers maximum installation flexibility by separating the solar collectors on the roof from the ground-mounted storage tank. Engineered for durability, the system features a titanium blue enamel coating that meets drinking water standards and resists high temperatures. With advanced protective features like a strong anode rod for corrosion prevention and smart automated circulation, this system provides a reliable, cost-effective, and sustainable hot water solution for residential and commercial applications.

Technical Specifications

High Temperature Cutout

75 °C

Deactivation Temperature

Tank Coating: Titanium Blue Enamel
Certifications: WaterMarkSRCCKeymark

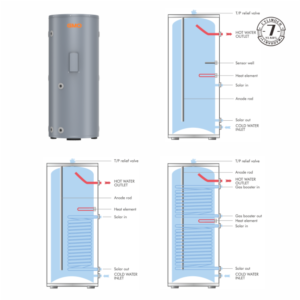

Technical diagram showing inlet and outlet ports on the split solar water tank — Tank configuration featuring relief valves, sensor wells, and solar circulation ports.

System Features

Installation Flexibility

Roof-mounted solar collectors
Ground-mounted storage tank
Indoor installation capability for electric boosted models

Corrosion Protection

Strong Anode RodTitanium Enamel LiningT/P Relief Valve

Key Components

Component	Function
Solar Collector	Sputtered selective surface for maximum energy absorption
Storage Tank	High-insulation, heat-loss minimized design
Smart Controller	Automated system operation and monitoring
