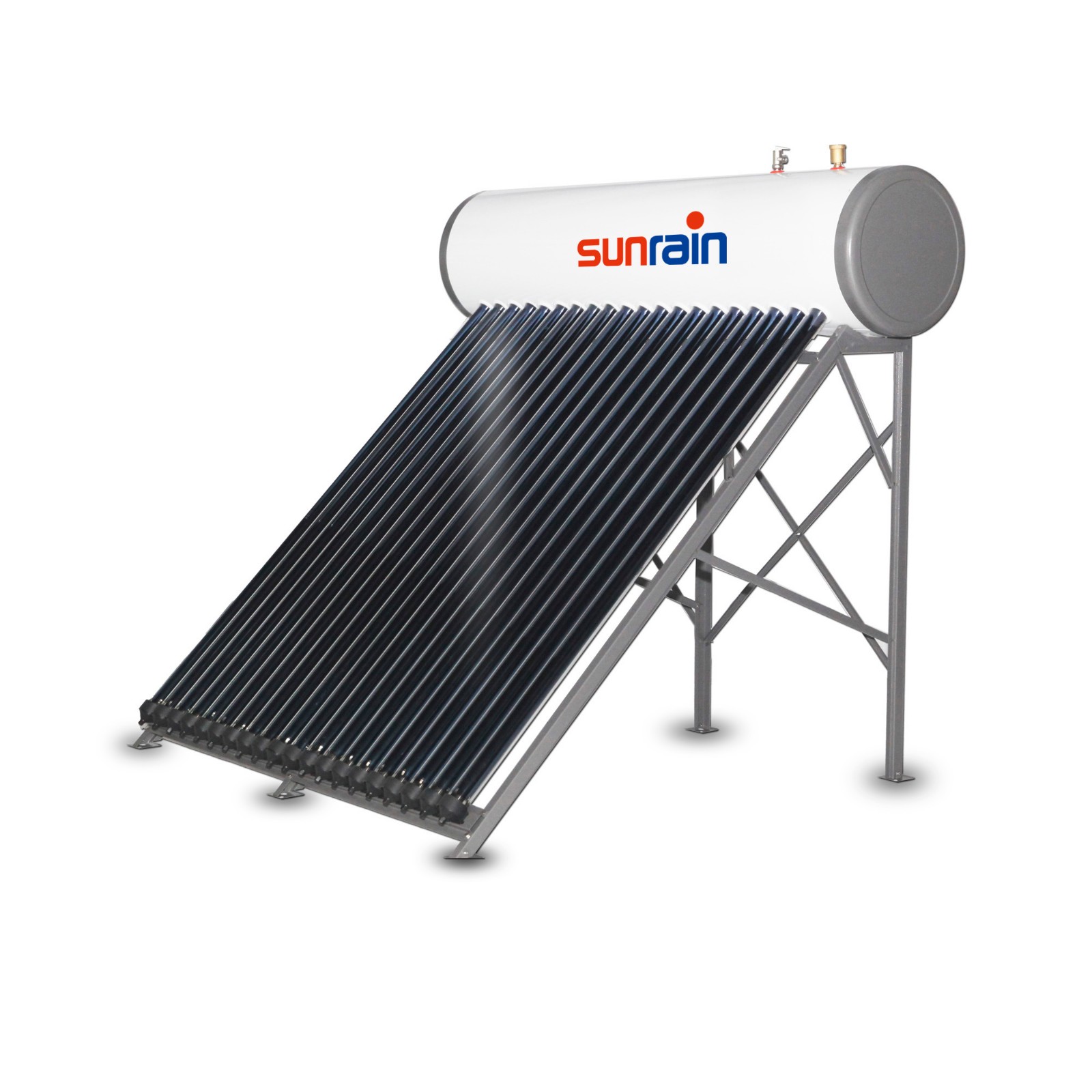

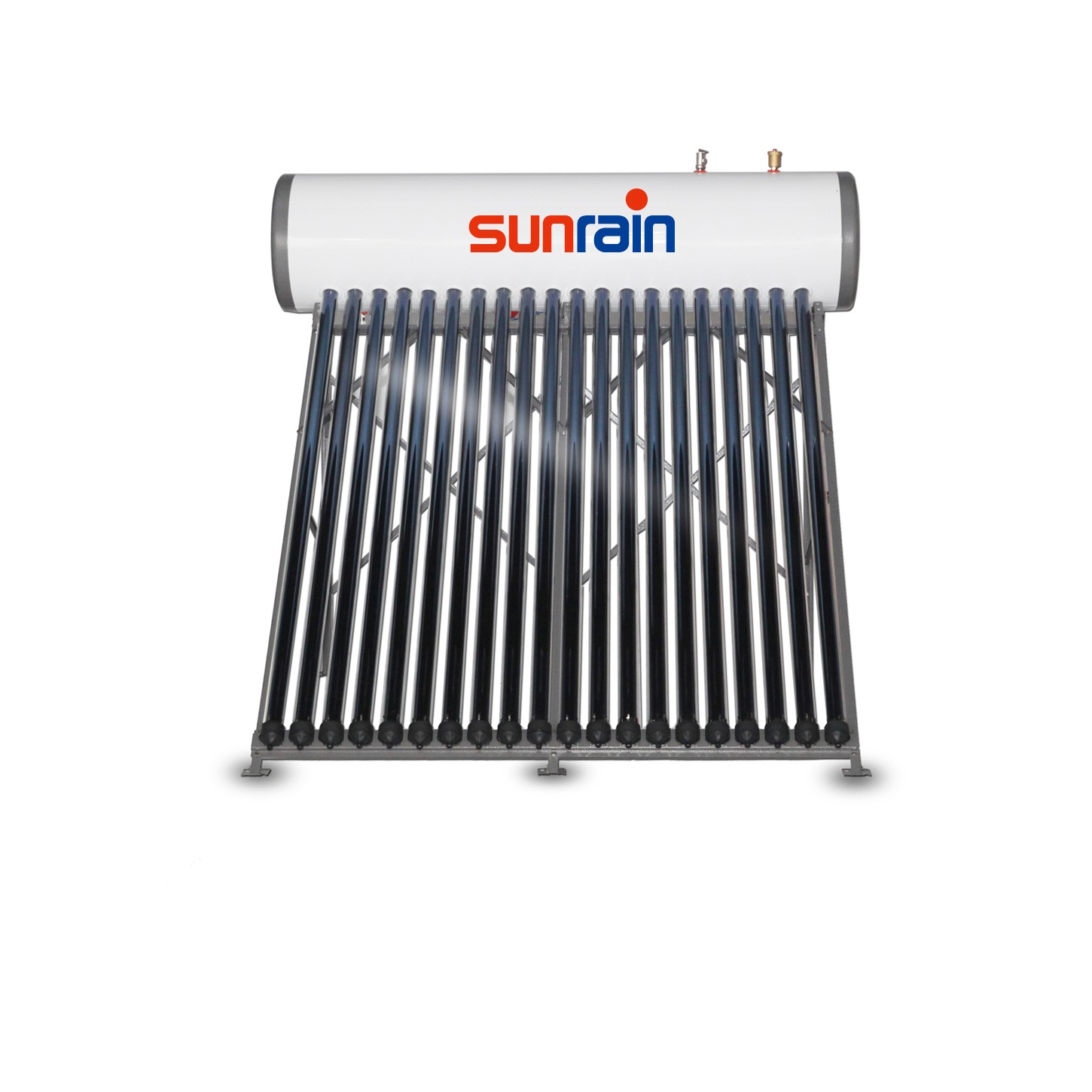

Pressurized Heat Pipe Solar Water Heater
This solar water heater uses heat pipe technology for fast heating. Its pressurized system ensures comfortable showering experiences.
Technical Specifications
Overview
High-Efficiency Pressurized Solar Water Heating
This pressurized heat pipe solar water heater delivers reliable, rapid hot water through advanced heat pipe core technology. Designed for residential and commercial durability, the system features a robust stainless steel tank and high-performance vacuum tubes that ensure consistent water pressure and superior solar energy absorption. Its modular design provides a resilient solution where individual tube maintenance does not interrupt overall system performance.
Technical Specifications

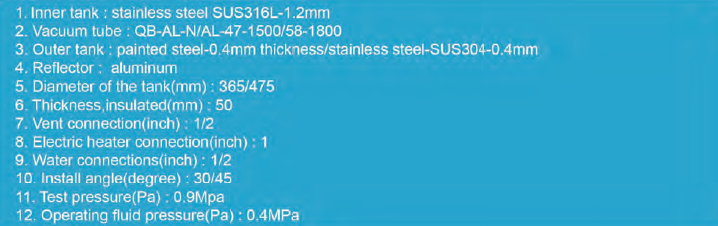

Construction Materials
- Inner Tank: SUS316L Stainless Steel (1.2mm)
- Outer Tank: Painted Steel (0.4mm) or SUS304 Stainless Steel (0.4mm)
- Reflector: Aluminum
System Performance Metrics
50 mm
Insulation Thickness
0.4 MPa
Operating Pressure
0.9 MPa
Test Pressure
Model Variants

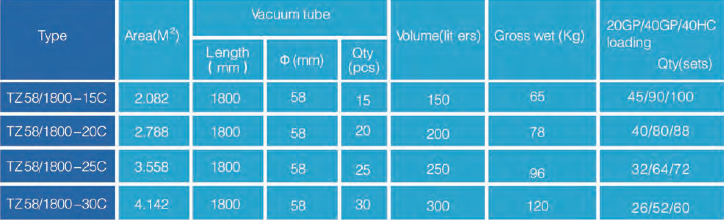

Model Specifications
| Model | Area (m²) | Capacity (L) | Tubes (pcs) |
|---|---|---|---|
| TZ58/1800-15C | 2.082 | 150 | 15 |
| TZ58/1800-20C | 2.788 | 200 | 20 |
| TZ58/1800-25C | 3.558 | 250 | 25 |
| TZ58/1800-30C | 4.142 | 300 | 30 |
Installation
Installation Parameters
- Adjustable Installation Angle: 30° or 45°
- Vent Connection: 1/2 inch
- Water Connections: 1/2 inch
- Electric Heater Connection: 1 inch
