Split Solar Water Heating System

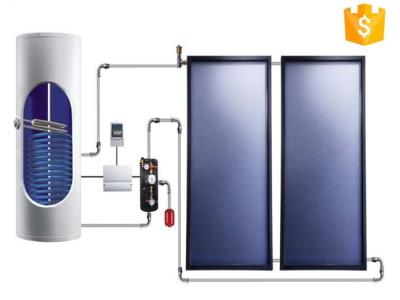

This split solar water heating system uses a separate collector and water tank, with pump circulation for efficient operation. The automatic control system ensures reliable performance and a consistent water temperature.
Technical Specifications
System Overview
Professional Solar Heating Solution
This split solar water heating system is engineered for residential and villa applications, offering reliable hot water through an advanced pump circulation design. By separating the solar collector from the storage tank, the system ensures installation flexibility, enhanced durability, and protection against rust. An automated controller optimizes thermal efficiency by monitoring temperature differentials, ensuring a consistent hot water supply with auxiliary heating support.
- Key Features
- Automatic ControlPump CirculationSplit DesignAuxiliary HeatingHigh Pressure Compatible
Technical Specifications
Storage Tank Specifications
| Attribute | 100L | 300L | 500L |
|---|---|---|---|
| Inner Vessel Dia (mm) | φ365 | φ480 | φ600 |
| Material | SUS304/316L | SUS304/316L | SUS304/316L |
| Insulation Thickness (mm) | 50 | 60 | 50 |
| Heating Power (kW) | 1.5 | 2.5 | 2.5 |
Construction Materials
- Inner Tank: SUS304-2B or 316L Stainless Steel
- Outer Tank: Color Steel (0.5mm thickness)
- Insulation: Polyurethane (PU)
