Spiral End Mill Grinder 4-14mm

This end mill grinder sharpens 2, 3, 4, and 6-flute end mills, and can also grind peripheral cutting edges. It provides accurate and rapid grinding, and is easy to operate.

Request a Quote Download PDFPDF

PURROS PG-X6 Spiral End Mill Grinder 4-14mm End Mill Sharpener Grinding Machine - Image 1

Technical Specifications

Overview

Precision End Mill Sharpening Solution

The PG-X6 is a professional-grade spiral end mill grinder engineered for high-accuracy tool maintenance. It enables operators to sharpen 2, 3, 4, and 6-flute end mills with precision, significantly extending tool service life. Its portable and intuitive design ensures that high-quality results can be achieved efficiently even without advanced grinding expertise.

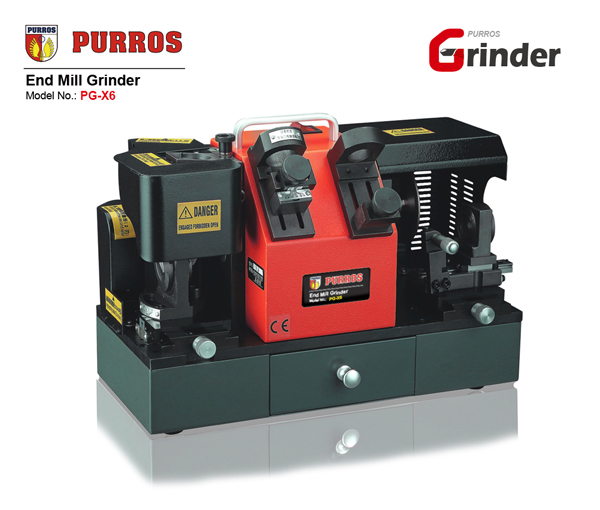

End mill sharpening machine unit — Precision grinding unit for 4-14mm spiral end mills.

Technical Specifications

Mill Diameter Range

4 mm

Minimum Diameter

14 mm

Maximum Diameter

Performance Metrics

Spindle Speed: 5300 RPM
Point Angle Adjustment: 0° - 5°
Compatible Flutes: 2, 3, 4, 6

Physical & Power Specs

Attribute	Value
Motor	220V / 180W
Weight	22 KG
Dimensions	41 x 25 x 30 cm

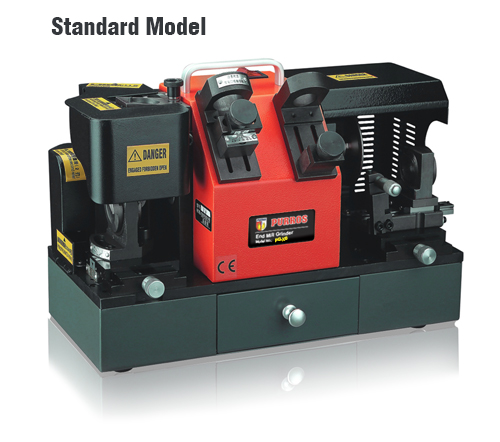

Standard model end mill grinder — Standard configuration of the professional end mill sharpener.

Equipment & Accessories

Included Collets

4
6
8
10
12
14

Included Grinding Wheels: CBN Face Grinding Wheel (HSS)CBN Side Grinding Wheel (HSS)

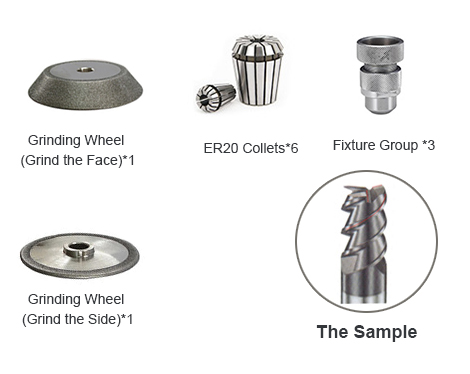

End mill grinder showing included accessories and collets — Comprehensive accessory set including ER20 collets and grinding wheels.
