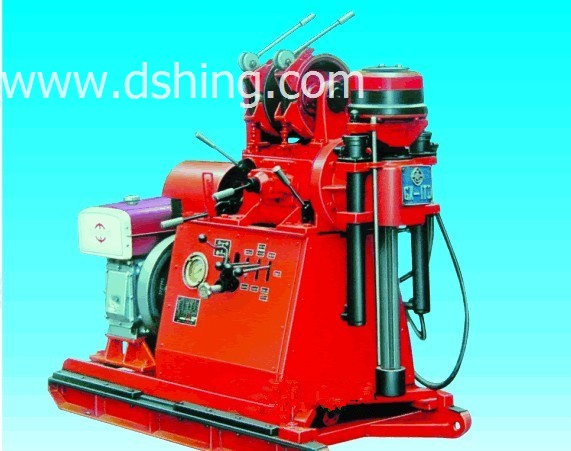

Spindle Geological Drilling Machine
This geological drilling machine is used for drilling in railroad, highway, tunnel, and power station foundation projects, as well as civil and industrial buildings. It features a spindle type design, mechanical transmission, hydraulic feeding, and a steel skid frame.
Technical Specifications
Overview
Professional Geological Drilling Solution
This Spindle Geological Drilling Machine is a versatile and robust instrument engineered for precise geological surveying and mineral exploration. It features a dual-power configuration, offering both diesel and electric motor options to ensure operational flexibility in various field and laboratory environments. With adjustable drilling angles and multiple speed settings, this machine provides the accuracy and efficiency required for demanding construction and research projects.
Performance Metrics
Key Performance Indicators
Technical Capabilities
Drilling Parameters
| Parameter | Available Options/Range |
|---|---|
| Hole Diameters | 150, 130, 110, 91, 75 mm |
| Drilling Capacity | 30, 50, 70, 100, 150 m |
| Angle Range | 0-90° |
| Spindle Speeds | 90, 191, 360, 600 r/min |
- Hydraulic System
- CB32 gear oil pump
Power & Mechanics
Power Options
- Diesel Engine: S1100A, 2200r/min, 11KW
- Electric Motor: Y160M-4, 1460r/min, 11KW
Physical Attributes
- Weight (Excl. Power)
- 500 kg
- Overall Dimensions (L×W×H)
- 1560×620×1205 mm
