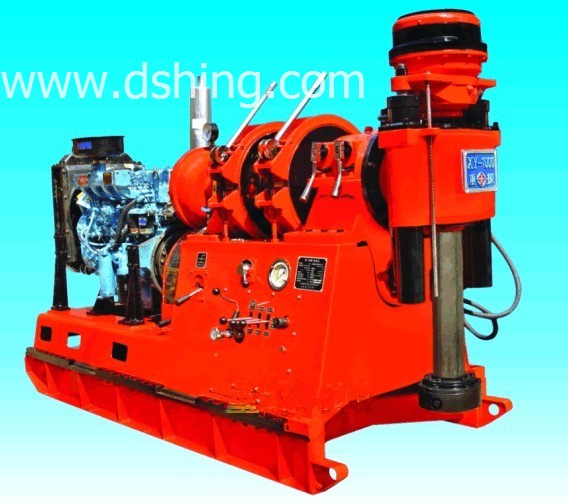

Spindle Core Drilling Machine
The spindle core drilling machine is designed for geological exploration and core sampling. It features a sturdy drilling rig and a reliable control system for efficient core extraction.
Technical Specifications
Overview
High-Performance Spindle Core Drilling Machine
This spindle-type core drilling machine is engineered for demanding geological exploration and core sampling operations. It combines robust construction with precise control systems, allowing for efficient core extraction at depths of up to 1000 meters. Designed for reliability in the field, this unit features a powerful spindle mechanism and high-capacity hoisting capabilities to handle challenging drilling environments.
Drilling Performance
- Drilling Depth
- 1000 m
- Max Spindle Torque
- 4050 Nm
Spindle Specifications
Spindle Speeds
| Direction | Speeds (r/min) |
|---|---|
| Forward | 87, 160, 230, 270, 334, 500, 710, 1030 |
| Reverse | 72, 220 |
- Spindle Stroke
- 600 mm
- Spindle Inner Diameter
- 96 mm
- Spindle Force (Pull/Push)
- 10000 / 7500 kg
Hoist System
Hoist Speed (Third Layer)
- 0.69
- 1.27
- 1.81
- 2.64
Wire Rope Specifications
17.5 mm
Diameter
110 m
Capacity
- Max Lifting Force (Single Rope)
- 4500 kg
