Technical Specifications
Overview

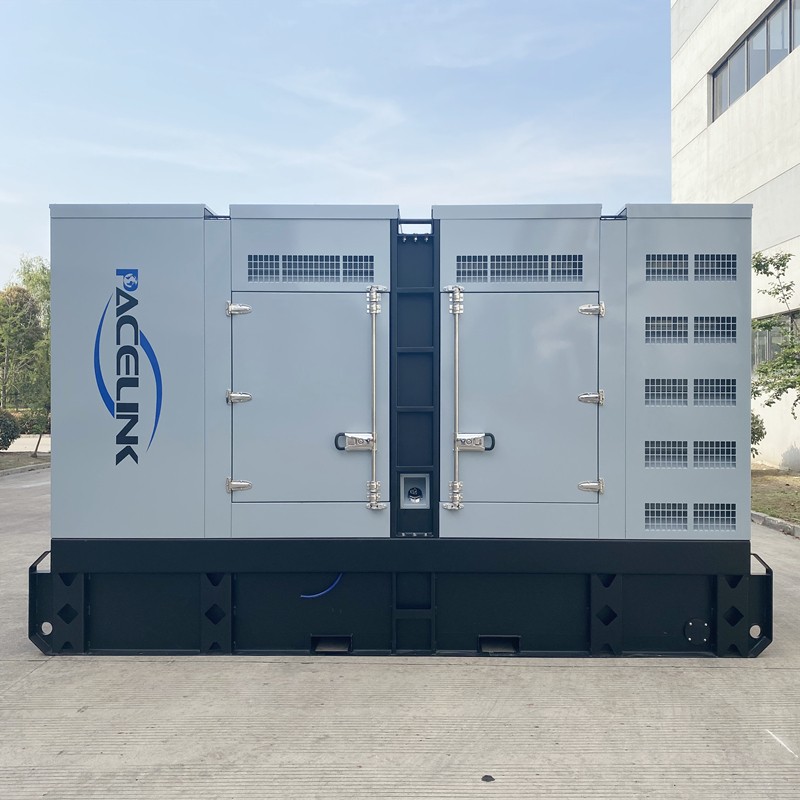

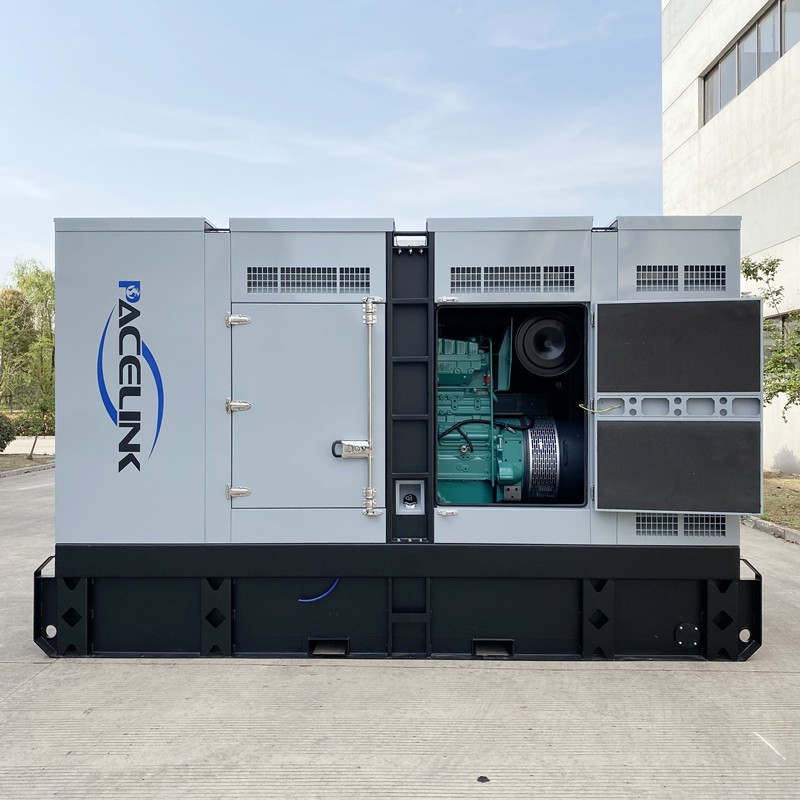

High-Performance Diesel Generator Set
This industrial-grade silent diesel generator is engineered for reliable backup and prime power applications in demanding environments. Featuring an advanced acoustic canopy design, it provides exceptional noise reduction while maintaining optimal airflow for peak engine performance. The unit is equipped with integrated safety features, user-friendly maintenance access, and robust outdoor protection to ensure dependable operation in both commercial and industrial settings.
Key Features
Standard Features
- Super-silent canopy design with high-performance residential muffler
- Fully bunded base fuel tank to prevent environmental spills
- Forklift pockets and top lifting points for easy transport
- Lockable external fuel inlet and power outlet flap
- High-quality outdoor powder coating for corrosion and UV resistance
- Earth strap fitted on all canopy doors for operator safety
Technical Specifications
Prime Power Metrics
344 kVA
Prime Power
1,500 RPM
Rated Speed
50 Hz
Frequency
Engine Configuration
| Parameter | Value |
|---|---|
| Displacement | 14 L |
| Cylinders | 6 In-Line |
| Compression Ratio | 14.0:1 |
| Speed Governor | Electronic |
| System Voltage | DC 24V |
Fuel Consumption Rate
| Load Level | Consumption |
|---|---|
| 100% Load | 72 L/h |
| 75% Load | 54 L/h |
| 50% Load | 36 L/h |
| 25% Load | 18 L/h |
Compliance and Safety
- Compliance Standards
- CEISOGB755BS5000VDE0530IEC34-1
Dimensions and Weight
Canopy Dimensions (PLG-CM370S)
- Length: 4200mm
- Width: 1406mm
- Height: 2540mm
- Weight: 5000kg
