Technical Specifications
Overview

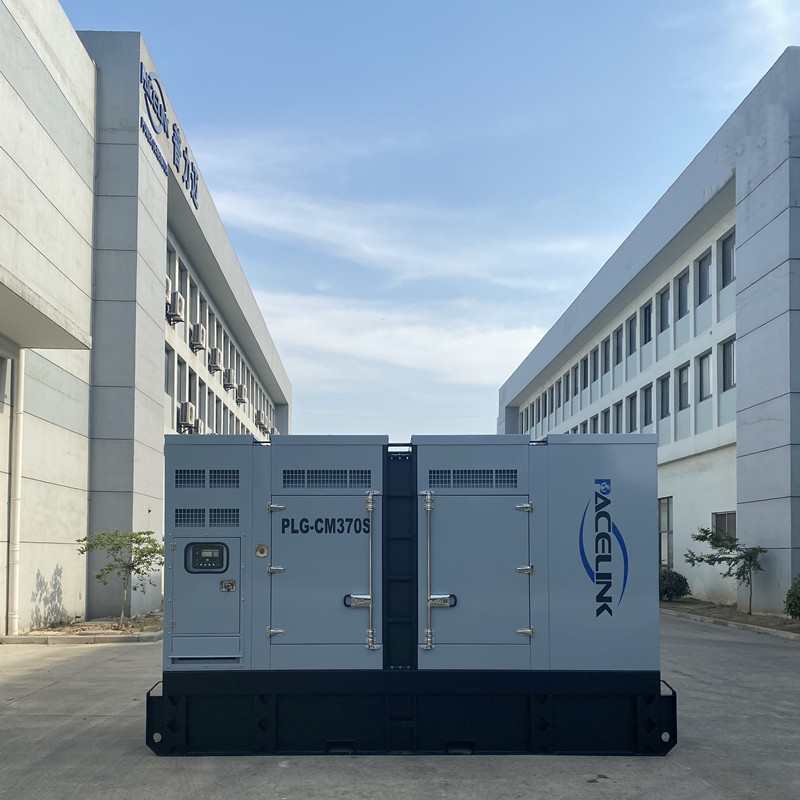

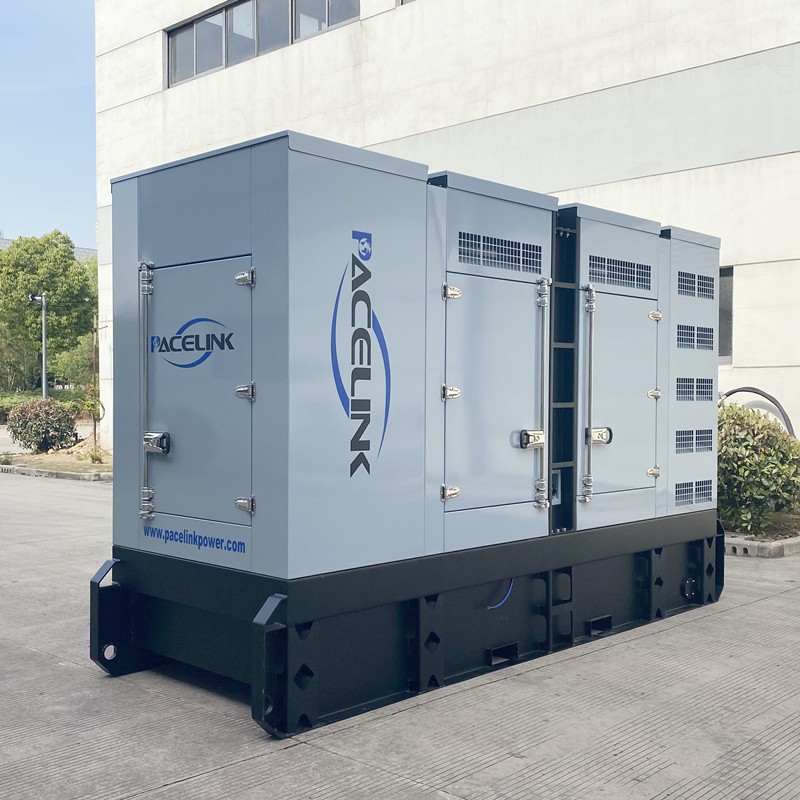

Industrial Soundproof Diesel Generator
This robust diesel generator set is engineered for consistent performance in both prime and standby power applications. Featuring a soundproof and weatherproof enclosure, it is designed to operate reliably in diverse environments while minimizing noise impact. The unit incorporates advanced airflow design, high-performance exhaust silencers, and a fully bunded base fuel tank to ensure safety and environmental compliance.
Technical Specifications
Key Performance Metrics
370 kVA
Standby Power
344 kVA
Prime Power
1,500 RPM
Rated Speed
50 Hz
Frequency
Engine Configuration
| Feature | Specification |
|---|---|
| Displacement | 14L |
| Cylinders | 6 In-line |
| Aspiration | Turbocharged & After-cooled |
| Governor | Electronic |
| Voltage | DC 24V |
Fuel Consumption
- 25% Load: 18 L/h
- 50% Load: 36 L/h
- 75% Load: 54 L/h
- 100% Load: 72 L/h
Dimensions and Construction
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length | 4200 mm |
| Width | 1406 mm |
| Height | 2540 mm |
| Weight | 5000 kg |
Features & Safety
Alternator Protection
IP23 ProtectionH-Class InsulationBrushless Excitation
- Standard Features
- Soundproof CanopyWeatherproof DesignForklift PocketsBunded Fuel TankResidential SilencerLockable Fuel InletVibration Isolators
