Soundproof Diesel Generator Set with Cummins Engine
This diesel generator set features a soundproof enclosure for noise reduction and weather protection. Powered by a Cummins engine, it delivers efficient and reliable performance for various applications.
Technical Specifications
Overview
Reliable Power Generation Solution
This economic soundproof diesel generator set is engineered for consistent performance in industrial, commercial, and residential applications. Featuring a robust, weather-resistant canopy design with advanced airflow, it ensures reliable operation in diverse environments. The unit includes comprehensive safety features, such as a bunded base fuel tank to prevent spills and a high-performance residential muffler for noise reduction, making it an ideal choice for both prime and standby power needs.

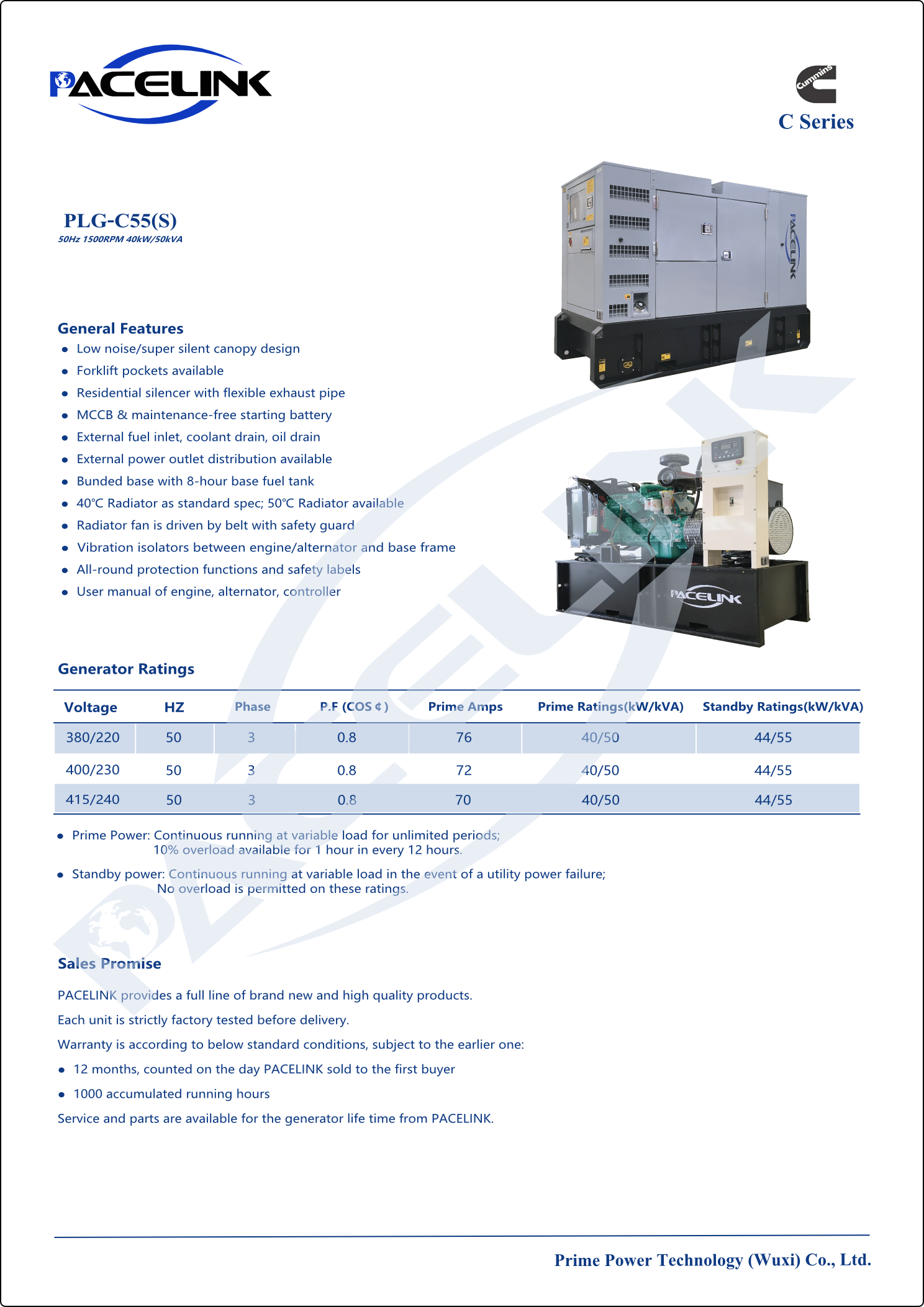

Performance Ratings
Prime Power Rating
40 kW
Prime Power (kW)
50 kVA
Prime Power (kVA)
Standby Power Rating
44 kW
Standby Power (kW)
55 kVA
Standby Power (kVA)
Electrical Specifications
| Parameter | Value |
|---|---|
| Frequency | 50 Hz |
| Phase | 3 |
| Power Factor | 0.8 |
| Rated Speed | 1500 RPM |

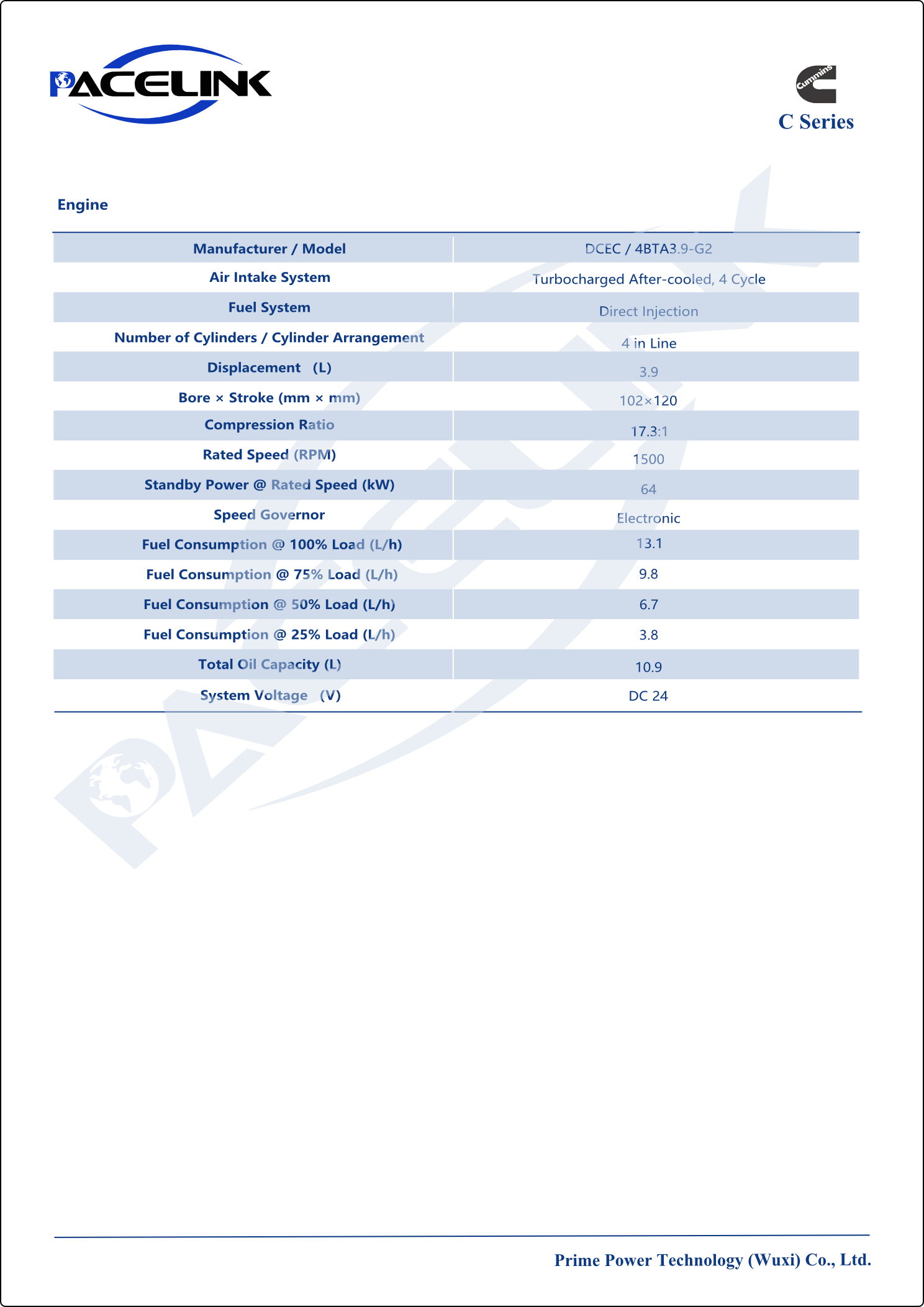

Engine Specifications
Engine Details
- 4-Cycle
- Turbocharged After-cooled air intake
- Direct fuel injection
- 4 cylinders in-line
- 3.9L displacement
- 17.3:1 compression ratio
Fuel Consumption
| Load | Consumption (L/h) |
|---|---|
| 100% | 13.1 |
| 75% | 9.8 |
| 50% | 6.7 |
| 25% | 3.8 |
Design & Construction
Key Features
Soundproof CanopyWeatherproofForklift PocketsResidential SilencerBunded Base Fuel TankLockable Fuel Inlet

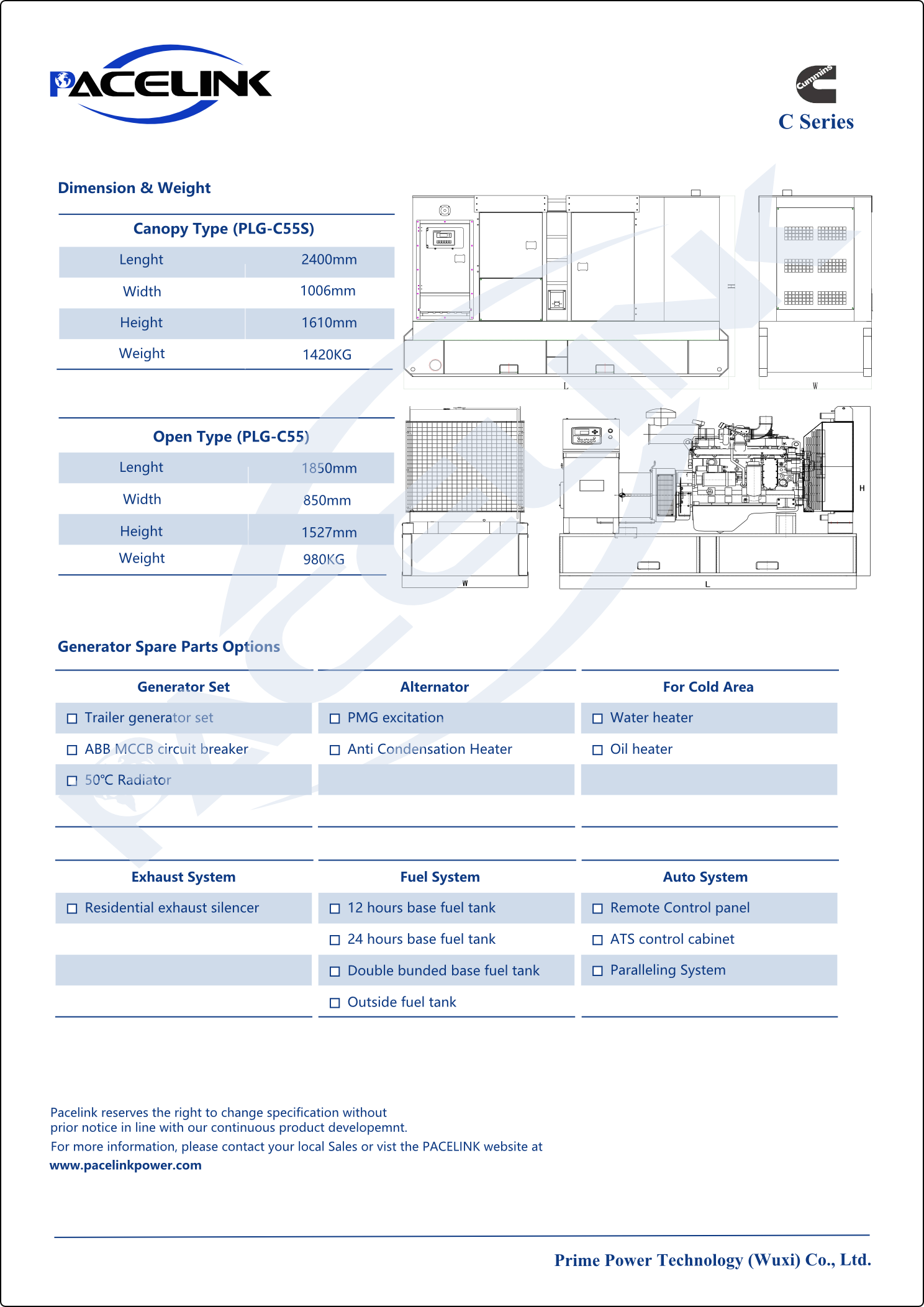

- Canopy Dimensions (L x W x H)
- 2400 x 1006 x 1610 mm
- Canopy Weight
- 1420 kg

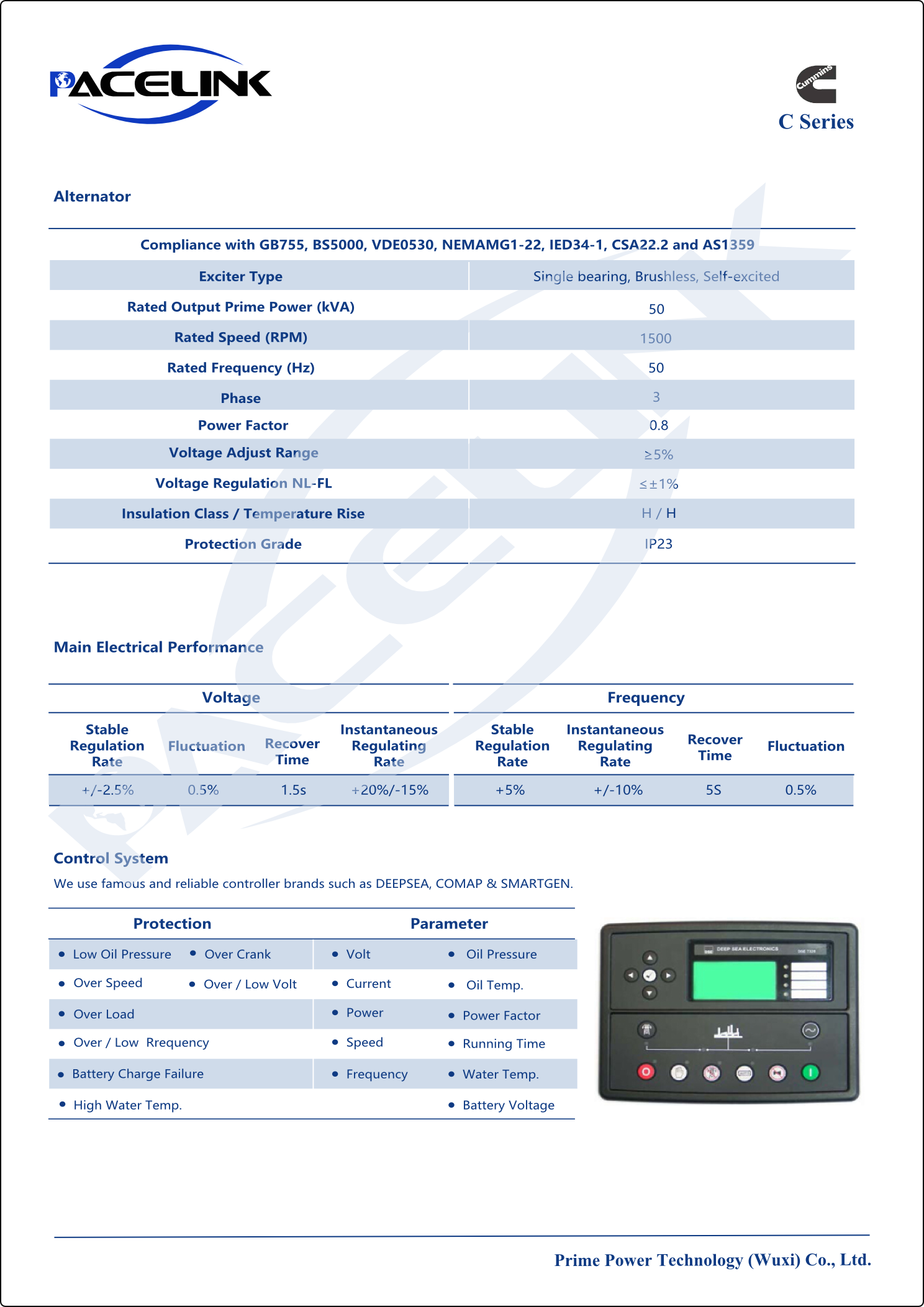

Alternator & Control
Alternator Specifications
- Single bearing
- Brushless
- Self-excited
- Insulation Class: H
- Protection Grade: IP23
