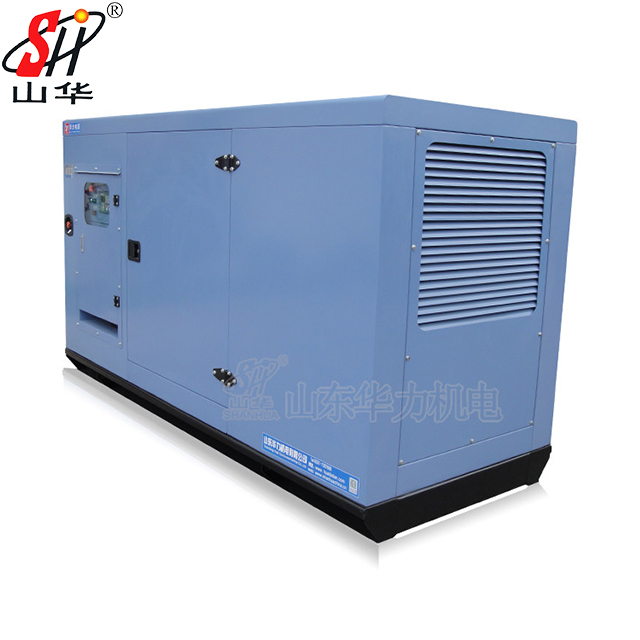

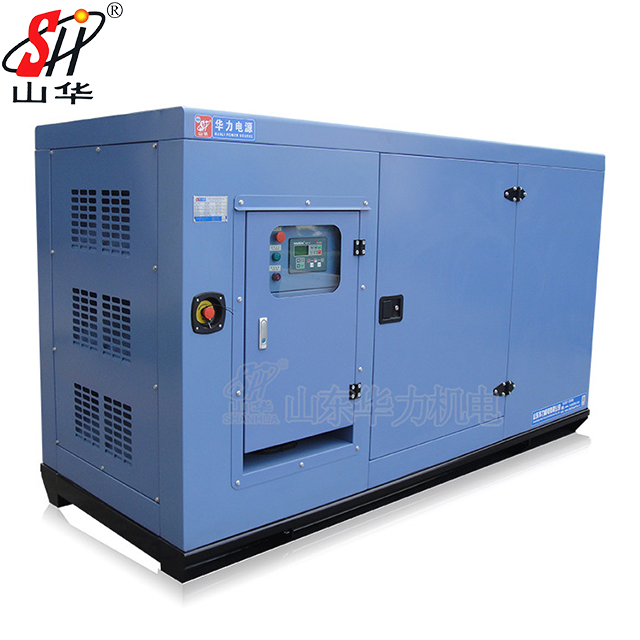

Soundproof Diesel Generator Set
These silent type generators feature a weatherproof canopy. The generators are designed for reliable power generation and are aesthetically pleasing.
Technical Specifications
Overview
Reliable Power Generation
This 40kW soundproof diesel generator set is engineered for consistent and dependable power output. Designed with a robust soundproof enclosure, it minimizes noise levels while providing essential weather protection for outdoor or industrial environments. It is an ideal solution for commercial, industrial, and residential backup power requirements, offering stable performance and efficient operation.
Performance Metrics
Prime Power
50 kVA
kVA
40 kW
kW
Standby Power
55 kVA
kVA
44 kW
kW
Electrical Characteristics
- Frequency: 50Hz
- Voltage: 230V-400V
Engine Details
Configuration
- Cylinders: 4/L
- Governor: M/E
- Bore x Stroke: 102 x 120mm
- Engine Model
- 4BTA3.9-G2
- Maximum Engine Power
- 55 kW
Operational Specs
Fluid Capacities
- Lubricating Oil: 10.9L
- Coolant: 18.4L
- Fuel Consumption Rate
- 13.1 L/H
Physical Dimensions
Physical Specifications
| Attribute | Value |
|---|---|
| L x W x H | 2820 x 1120 x 1670 mm |
| Weight | 800 kg |
