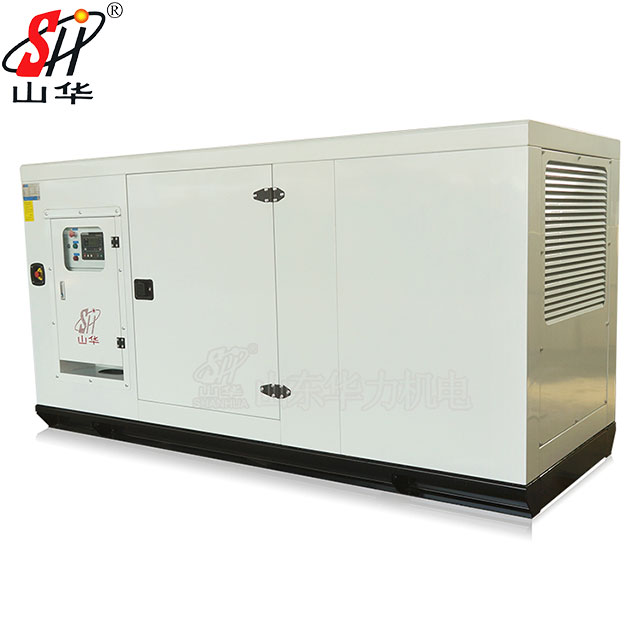

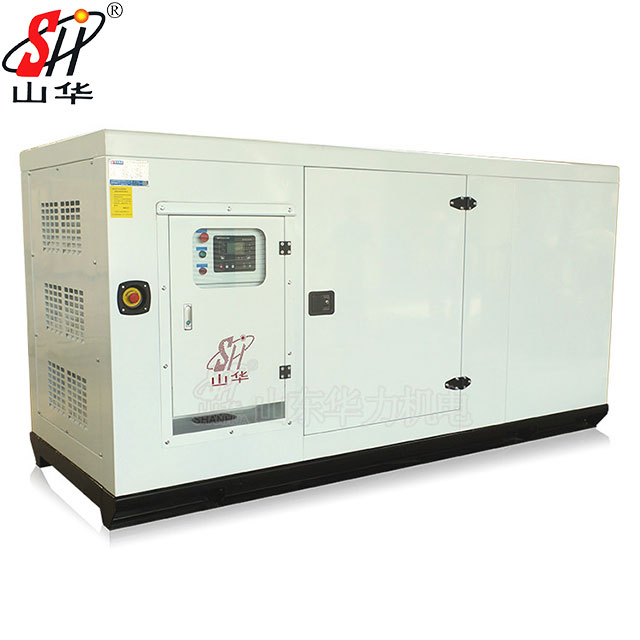

Soundproof Diesel Generator Set
These soundproof diesel generator sets feature a unique design for noise reduction, achieving levels from 65dB to 79dB at 7 meters. Enclosed for noise reduction, they are equipped with a control panel for monitoring and operation, with easy access doors for maintenance.
Technical Specifications
Overview
High-Performance Silent Power Generation
This 100kW soundproof diesel generator set is engineered for reliable power supply in industrial, commercial, and residential environments. Featuring a robust sound-attenuating enclosure, it minimizes noise pollution while providing consistent performance. Designed for easy maintenance and long-term durability, it serves as an excellent solution for both prime and backup power requirements.
Performance Metrics
Prime Power
125 kVA
Prime Power
100 kW
Prime Power
Standby Power
137 kVA
Standby Power
110 kW
Standby Power
Technical Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Voltage | 230V-400V |
| Frequency | 50Hz |
| Speed | 1500rpm |
Engine Details
- Model: 6BTA5.9-G2
- Governor: M/E
- Max Power: 116kW
- Cylinders: 6/L
- Bore/Stroke: 102*120mm
Consumables & Capacities
| Component | Capacity/Rate |
|---|---|
| Fuel Consumption Rate | 27L/H |
| Lubricating Oil Capacity | 16.4L |
| Coolant Capacity | 28.6L |
Physical Dimensions
Dimensions & Weight
- Dimensions (L*W*H): 3170*1280*1620mm
- Weight: 2000kg
