Technical Specifications
Product Overview
Reliable Power Solution

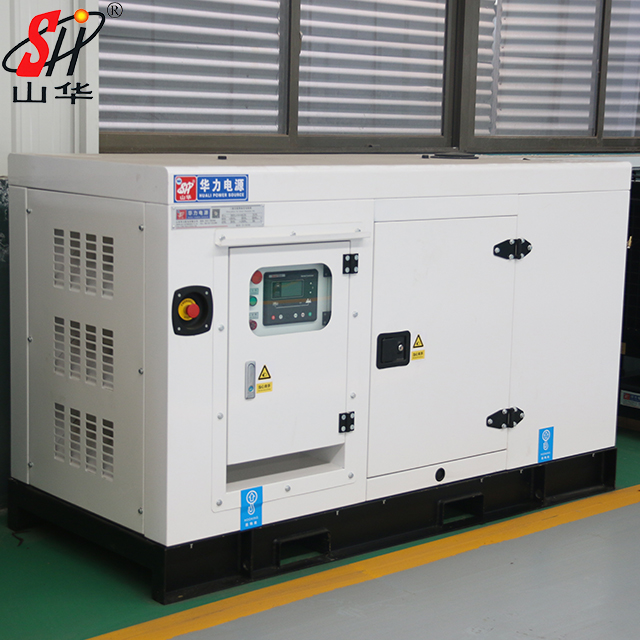

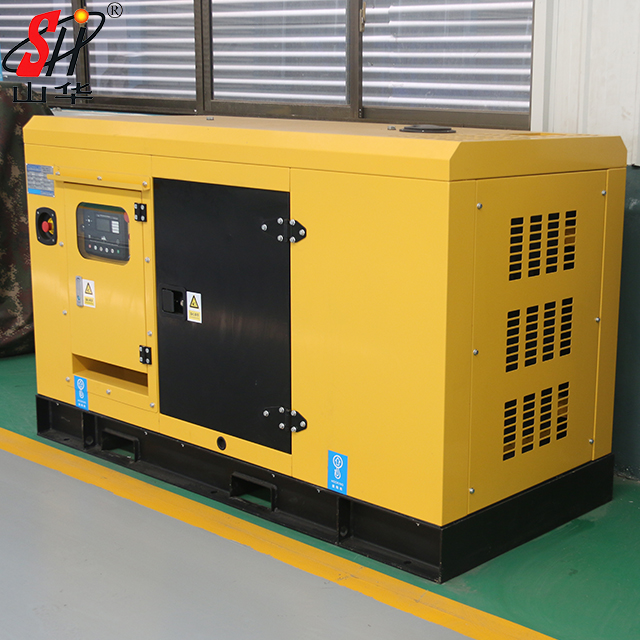

This soundproof diesel generator set is engineered for consistent and reliable performance in both prime and standby power applications. Featuring a robust diesel engine and a sound-attenuated canopy, it ensures quiet operation suitable for industrial, commercial, and residential environments. The unit is designed for easy maintenance, durability, and stable power output under demanding conditions.
Performance Metrics
Prime Power
25 kVA
Prime Power (kVA)
20 kW
Prime Power (kW)
Standby Power
27.5 kVA
Standby Power (kVA)
22 kW
Standby Power (kW)
Engine Specifications
- Engine Model
- 4B3.9-G1/2
- Max Power
- 27 kW
- Cylinder Configuration
- 4/L
- Bore x Stroke
- 102*120mm
Operational Data
- Fuel Consumption Rate
- 6.7 L/H
- Lubricating Oil Capacity
- 10.9 L
- Coolant Capacity
- 18.4 L
Physical Dimensions
Physical Specifications
| Attribute | Value |
|---|---|
| Dimensions (L*W*H) | 2000*1200*900mm |
| Weight | 900kgs |
Features
- Key Features
- Soundproof CanopyAutomatic Voltage RegulationHeavy-Duty Cooling SystemDigital Control PanelWeather Protection
