Solar Water Pumping System with Submersible Pump

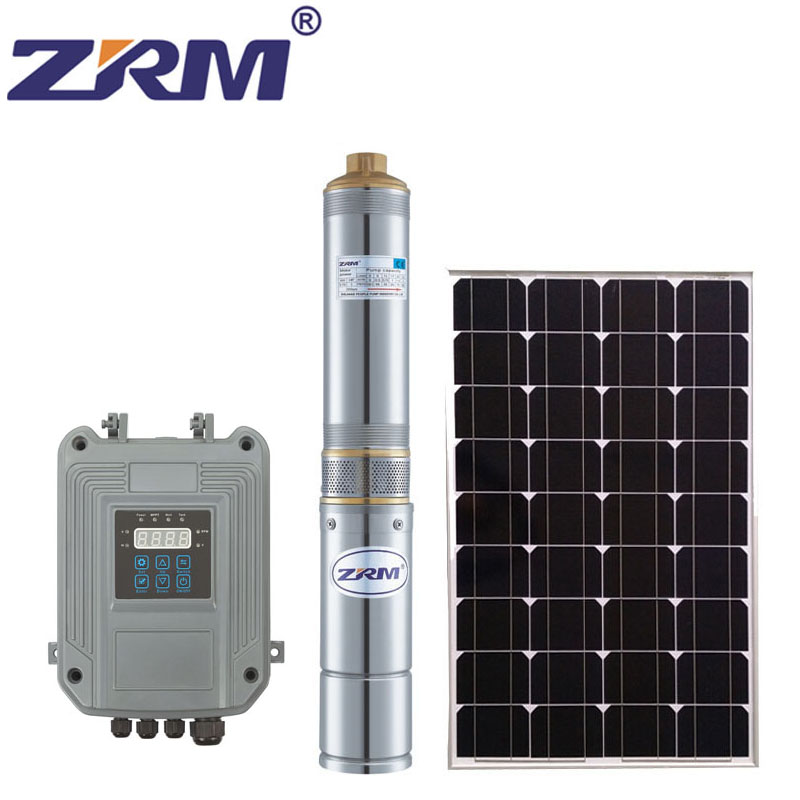

This solar water pumping system features a submersible pump, solar panel array, and control unit for efficient water extraction. The multistage centrifugal pump is optimized for high head and flow rate performance.
Technical Specifications
Product Overview
Solar-Powered Water Extraction
This solar-powered water pumping system is engineered for efficient and reliable water extraction in off-grid locations. Featuring a robust submersible pump, it is designed for deep well and borehole applications, making it ideal for irrigation, livestock watering, and domestic supply. The system operates directly on solar power, eliminating the need for batteries or grid connections while ensuring consistent performance.
Performance Metrics
Key Performance Indicators
6 m3/h
Max Flow Rate
60 m
Max Head
0.75 kW
Power Output
Technical Specifications
Electrical Data
| Parameter | Value |
|---|---|
| Voltage | 72V |
| Power Rating | 1.0 HP |
| Cable Length | 2m |
- Construction Materials
- Copper wirePOM ImpellerStainless Steel Shaft
- Outlet Diameter
- 1.5 inch
- Model Identifier
- 4DSP6/60-D72/750
