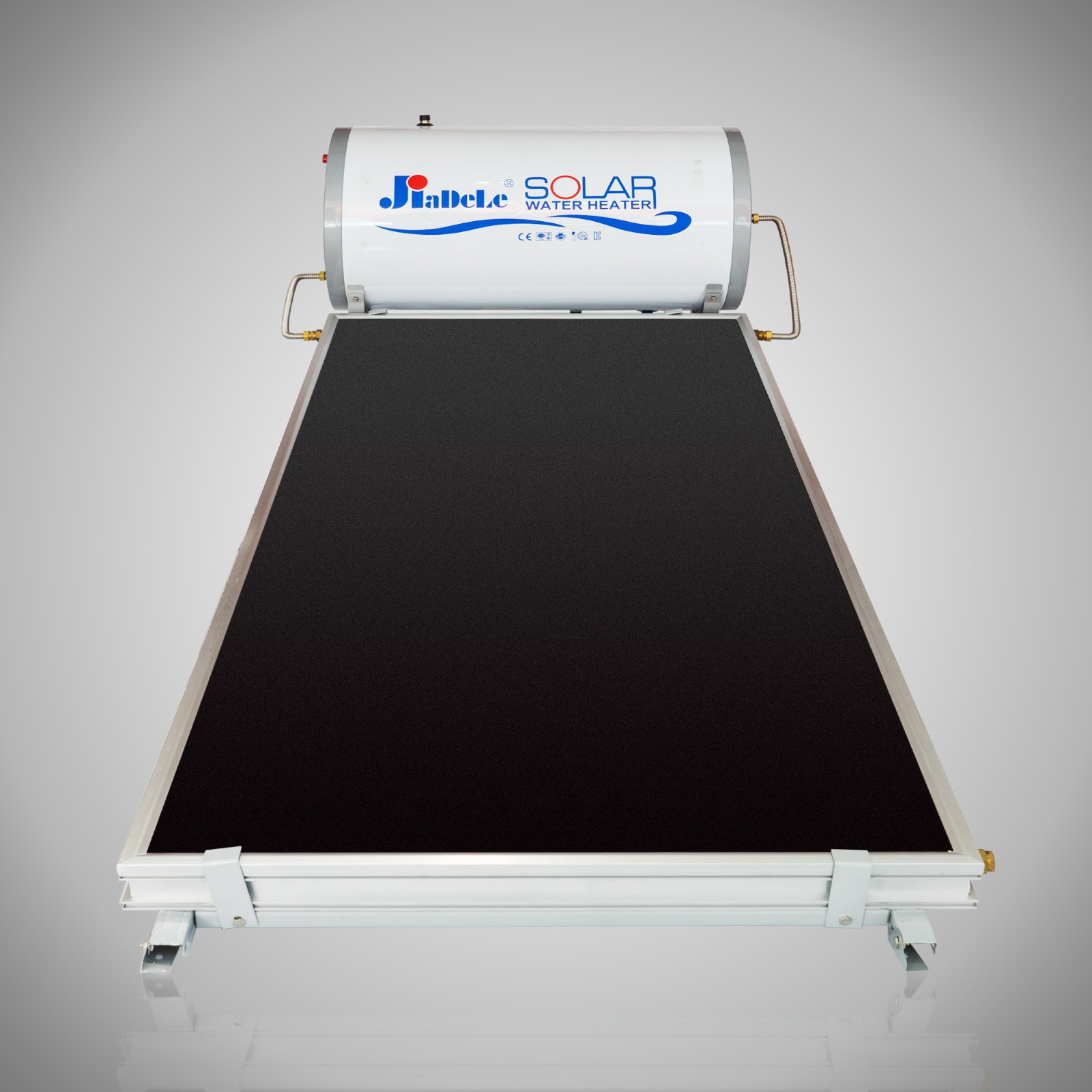

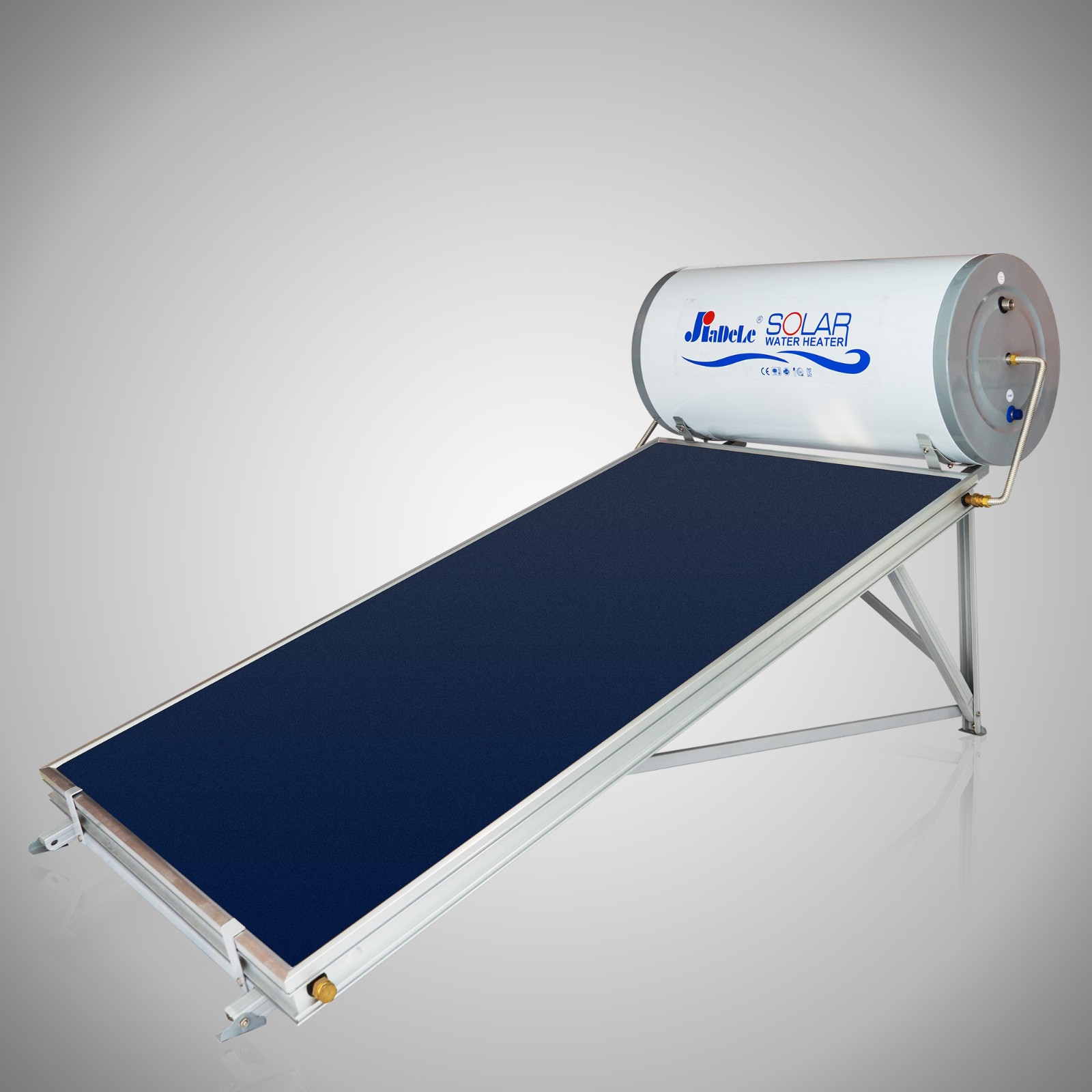

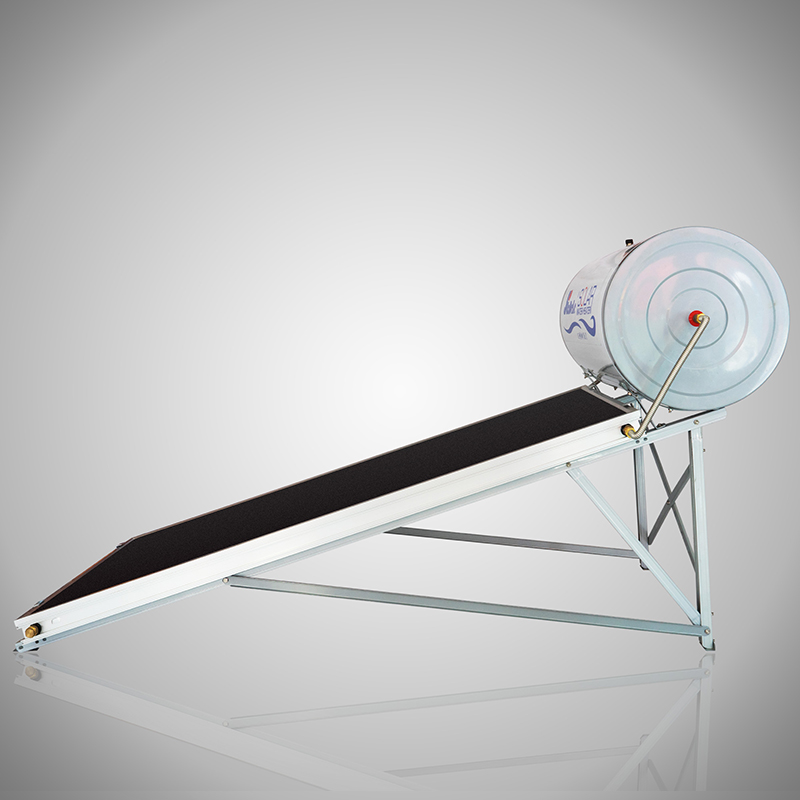

Solar Water Heater System with Flat Plate Collector
This solar water heater uses an indirect system with a flat plate collector. The absorber coating converts sunlight into heat energy, which is then transferred to the medium in the core passageway.
Technical Specifications
Overview
Pressure Compact Flat Plate Solar Water Heater
This indirect solar water heating system utilizes advanced flat plate collector technology to convert sunlight into thermal energy. Designed for efficiency, the system uses a jacketed tank to facilitate natural circulation, ensuring consistent hot water production. It includes an integrated electrical heating element to guarantee a reliable hot water supply even during periods of low sunlight or continuous rain.
Technical Specifications
- Inner Tank Material
- Stainless Steel SUS304
- Inner Tank Thickness
- 1.2 mm
- Outer Tank Material
- Galvanized Steel
- Insulation Material
- Polyurethane
- Frame Material
- Aluminum Alloy
- Reflector Material
- Stainless Steel
Performance
- Circulation Type
- Closed Loop
- Max Working Pressure
- 0.6 MPa
- Electric Backup Power
- 1.5 kW
- Welding Technology
- Laser Welding
Components
- Vacuum Tube Specification
- QB-AL-N/AL-58-1800
- Piping Connector Size
- Ø22
