Solar Pump Inverter VFD 220V/380V
The solar pump inverter VFD is designed for use with PV generators and pumps. It efficiently converts frequency and voltage, optimizing water storage without batteries by combining with elevated water storage solutions.
Technical Specifications
System Overview
Solar Pumping System Solution
This solar pump inverter is designed to drive 3-phase AC pumps using solar energy without the need for storage batteries. By utilizing advanced Maximum Power Point Tracking (MPPT), the system adjusts output frequency in real-time based on sunlight intensity to maximize efficiency. It is compatible with various pump types, including centrifugal, axial flow, mixed flow, and deep well pumps, making it ideal for agricultural irrigation, livestock watering, and municipal water supply.
Technical Specifications
Compatible Pump Types
- Centrifugal pump
- Axial flow pump
- Mixed flow pump
- Deep well pump
- Supported Input Voltages
- 220V380V
- MPPT Technology
- Yes
- Battery Required
- No

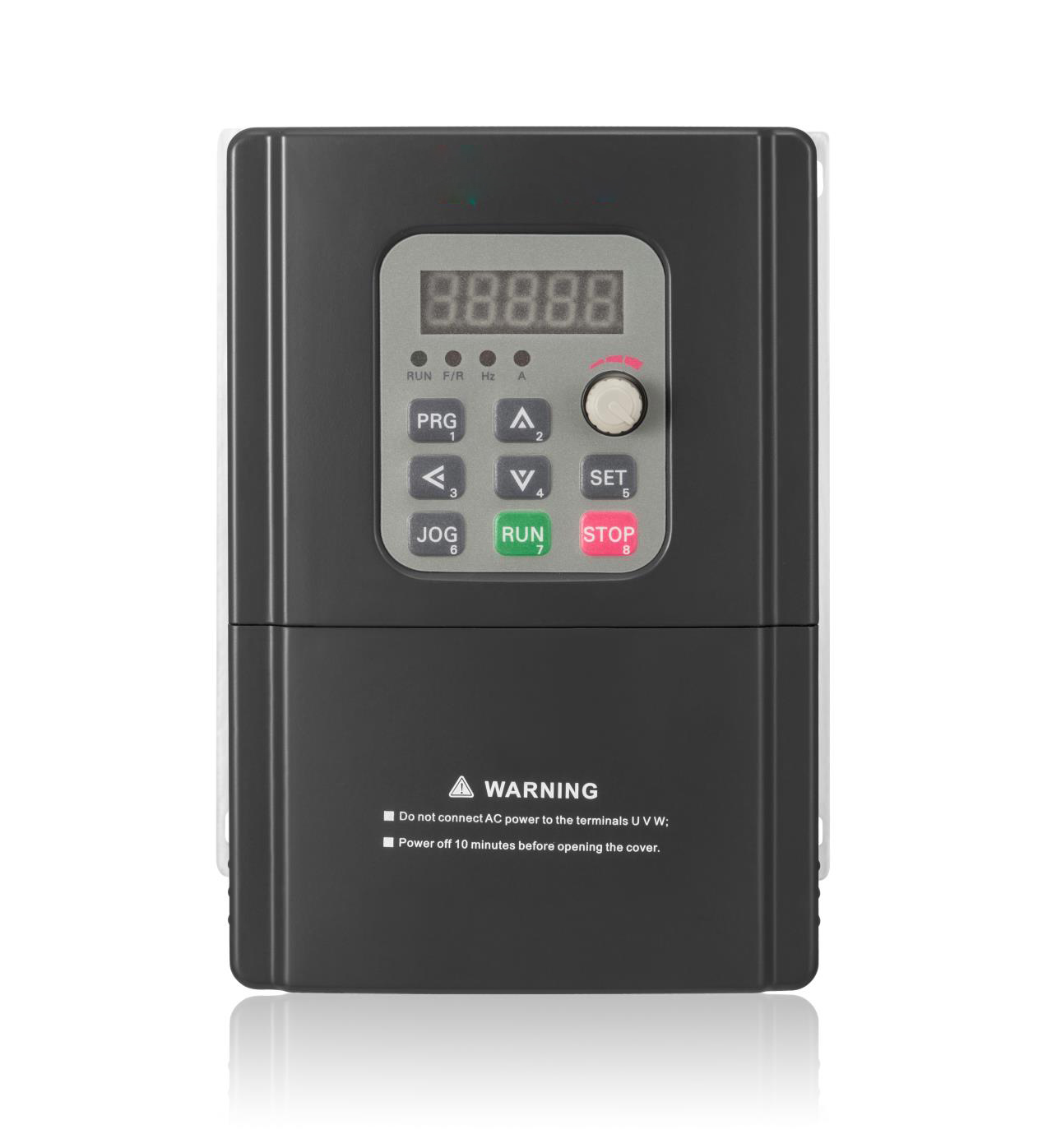

Interface & Operation
Control Panel Functions
- Run/Stop Control
- Frequency (Hz) Adjustment
- Program (PRG) Settings
- Jog Operation
- Forward/Reverse (F/R) Control
Safety Warnings
| Warning Type | Instruction |
|---|---|
| Terminal Connection | Do not connect AC power to terminals U, V, W |
| Maintenance | Power off for 10 minutes before opening cover |
Application Areas
Common Applications
Agricultural IrrigationLivestock WateringDrinking Water SupplyWaste Water TreatmentFountain Systems
