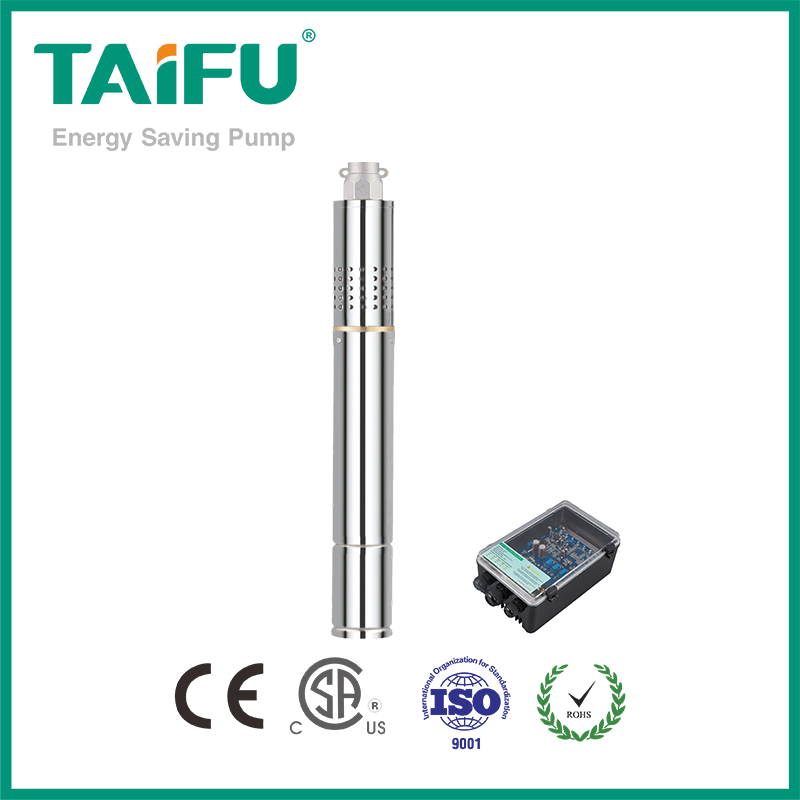

Solar Powered Water Pump
This solar water pump is an energy-efficient pumping solution suitable for various water supply applications. Its durable stainless steel construction ensures longevity and resistance to corrosion.
Technical Specifications
Product Overview
Sustainable Solar Water Pumping
This advanced solar-powered water pump is designed for reliable performance in areas without access to a state power grid. Utilizing high-efficiency brushless DC motor technology and MPPT (Max Power Point Tracking), it offers significant energy savings for irrigation, fountains, and general water transfer. Built with premium materials like 304 stainless steel and featuring integrated over-load protection, it provides a durable and maintenance-free solution.
Technical Specifications
Performance Metrics
3,000 W
Max Power
300 m
Max Head
61 m3/h
Max Flow Rate
Technical Data
| Parameter | Range |
|---|---|
| Power Range | 80-3000 W |
| Voltage Range | 12-300 V |
| Head Height | 11-300 m |
| Flow Rate | 0.5-61 m3/h |
| Borehole Sizes | 3", 4", 5" |
Construction & Quality
Core Materials
- 100% Copper wire
- #304 Stainless steel shaft
- #316 Stainless steel screw
- NSK imported bearings
- Compliance
- CEISO 9001RoHSCSA
Advanced Features
Smart Features
- MPPT (Max Power Point Tracking) technology
- 3-Phase brushless permanent magnetism DC motor
- Automatic circuit detection with LED display
- Integrated over-load protection
- Battery-ready for 12/24/36/48V systems
Support & Warranty
- Warranty
- 3 Years
