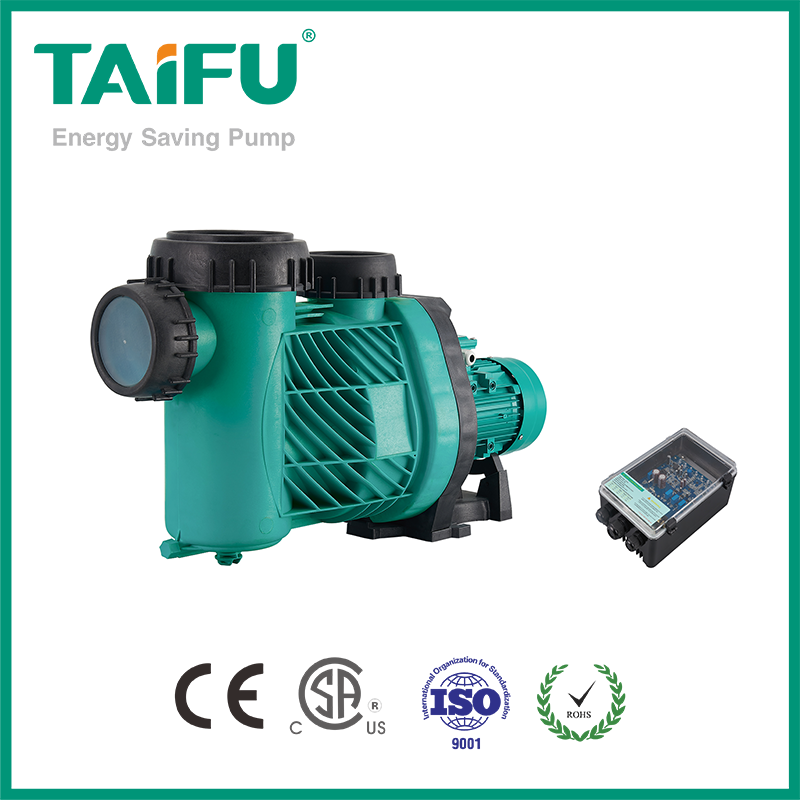

Solar-Powered Swimming Pool Water Pump
This solar-powered pump efficiently circulates water in swimming pools. Its durable construction ensures long-term use and reliable performance.
Technical Specifications
Overview
Sustainable Water Pumping Solution
This solar-powered water pump is an energy-efficient and eco-friendly solution ideal for off-grid locations, irrigation, and water management. Designed with advanced 3-phase brushless DC motor technology, it provides superior performance with higher efficiency than traditional AC motors. Its robust, maintenance-free construction features high-quality materials to ensure reliable operation in demanding conditions.
Performance Metrics
Operational Capabilities
3,000 W
Maximum Power
300 m
Maximum Head
61 m3/h
Max Flow Rate
Technical Specifications
Available Borehole Sizes
- 3 inches
- 4 inches
- 5 inches
- Power Range
- 80W to 3000W
- Voltage Range
- 12V to 300V
Construction & Materials
Key Materials
| Component | Material |
|---|---|
| Motor Wire | 100% Copper |
| Shaft | #304 Stainless Steel |
| Screw | #316 Stainless Steel |
| Bearings | Imported NSK |
Features & Compliance
Motor Technology
- 3-phase brushless permanent magnetism
- 25% higher efficiency than AC motors
- Smooth, low-current startup
Controller Functions
- MPPT (Max Power Point Tracking)
- DSP Technique
- Automatic circuit detection
- LED Display
- Overload protection
- Compliance
- CEISO 9001ROHS
Support & Warranty
- Warranty & Support
- 3 years warranty including technical support and agent training.
