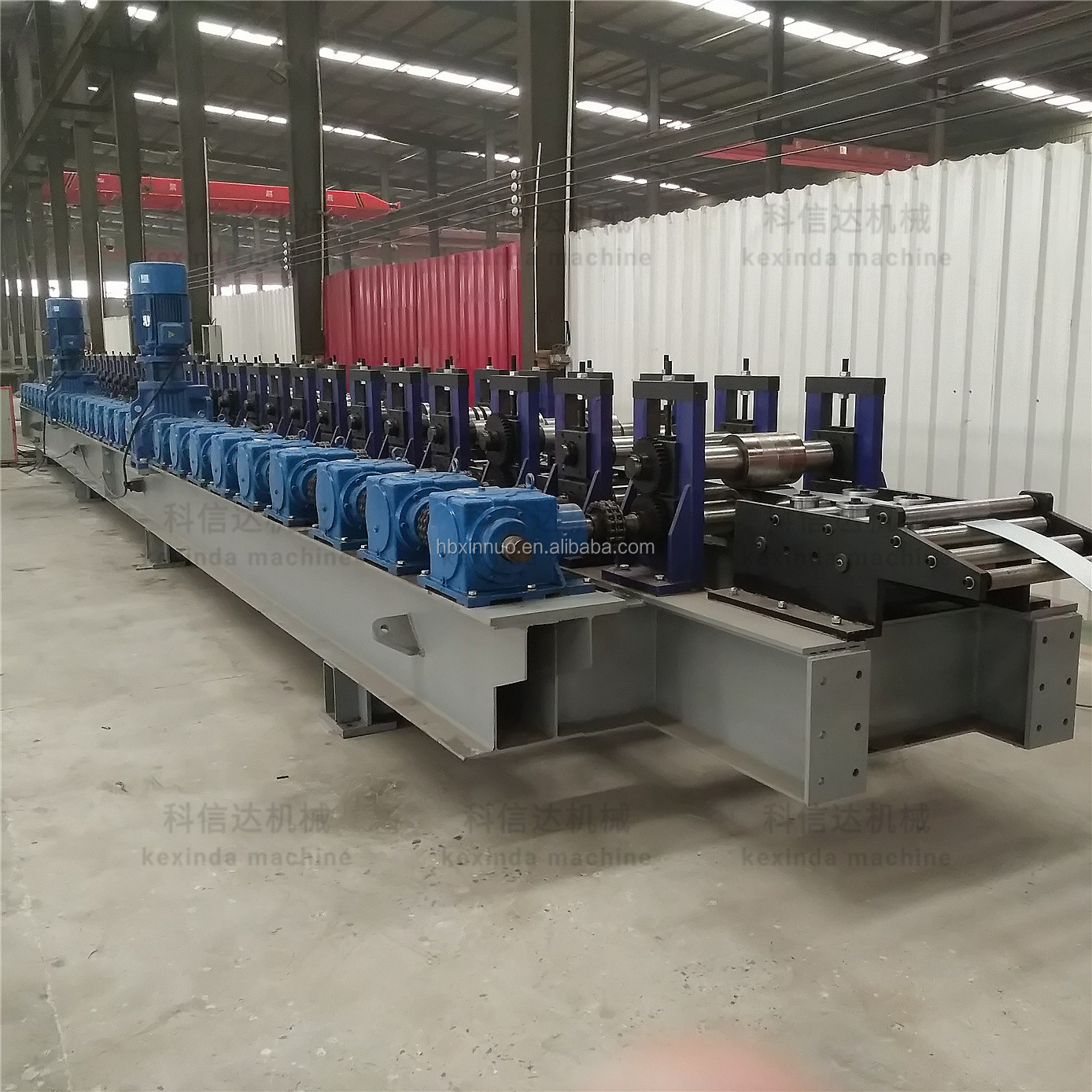

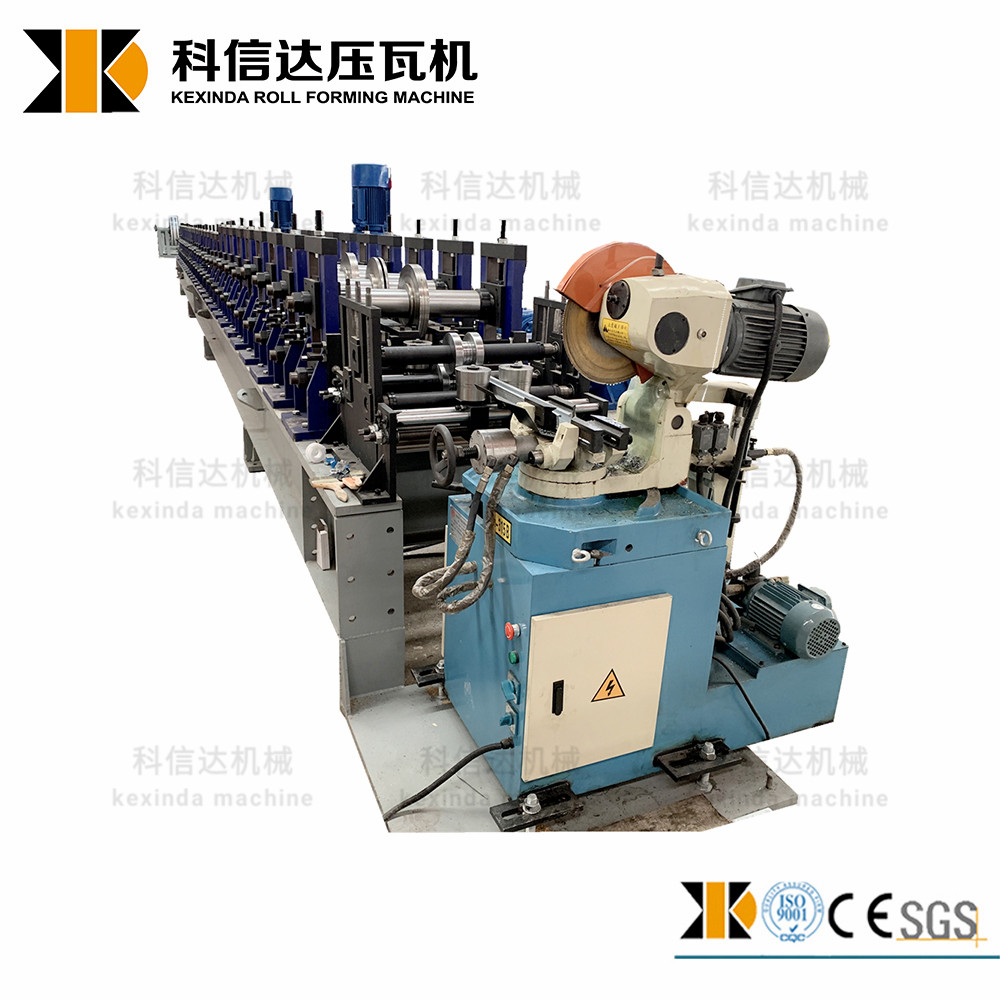

Solar Panel Bracket Roll Forming Machine
This solar bracket roll forming machine is engineered for the efficient production of solar panel mounting brackets. It utilizes a continuous roll forming process to ensure consistent quality and high-volume output.
Technical Specifications
Overview
Industrial Solar Bracket Roll Forming Solution
This high-precision roll forming machine is engineered for the efficient, large-scale production of solar panel mounting brackets. Utilizing a continuous multi-station forming process, it ensures consistent structural integrity and dimensional accuracy across various profile designs. With automated feeding, punching, and tracking hydraulic cutting, this system minimizes labor requirements while maximizing production output for solar energy projects.
Technical Specifications
- Feeding Material Width
- 300 mm
- Material Thickness
- 1.5 - 2.5 mm
- Production Speed
- 20 m/min
- Minimum Product Length
- 2000 mm
- Compatible Materials
- Q235 Cold SteelQ345 Cold SteelHot Galvanized Strips
Quality Standards
Precision Tolerances
1.5 mm/1500mm
Straightness Error
1.5 mm/1000mm
Angle Error
1.5 mm
Length Error
Component Specifications
3T Electric Decoiler Details
| Feature | Value |
|---|---|
| Max Loading Capacity | 3T |
| Inner Diameter | 508 mm |
| Inner Diameter Range | 480-520 mm |
| Max Outer Diameter | 1500 mm |
Production Process
Production Workflow
- 3T Automatic Decoiling and Straightening
- Servo Feeding
- Punching with Custom Mould

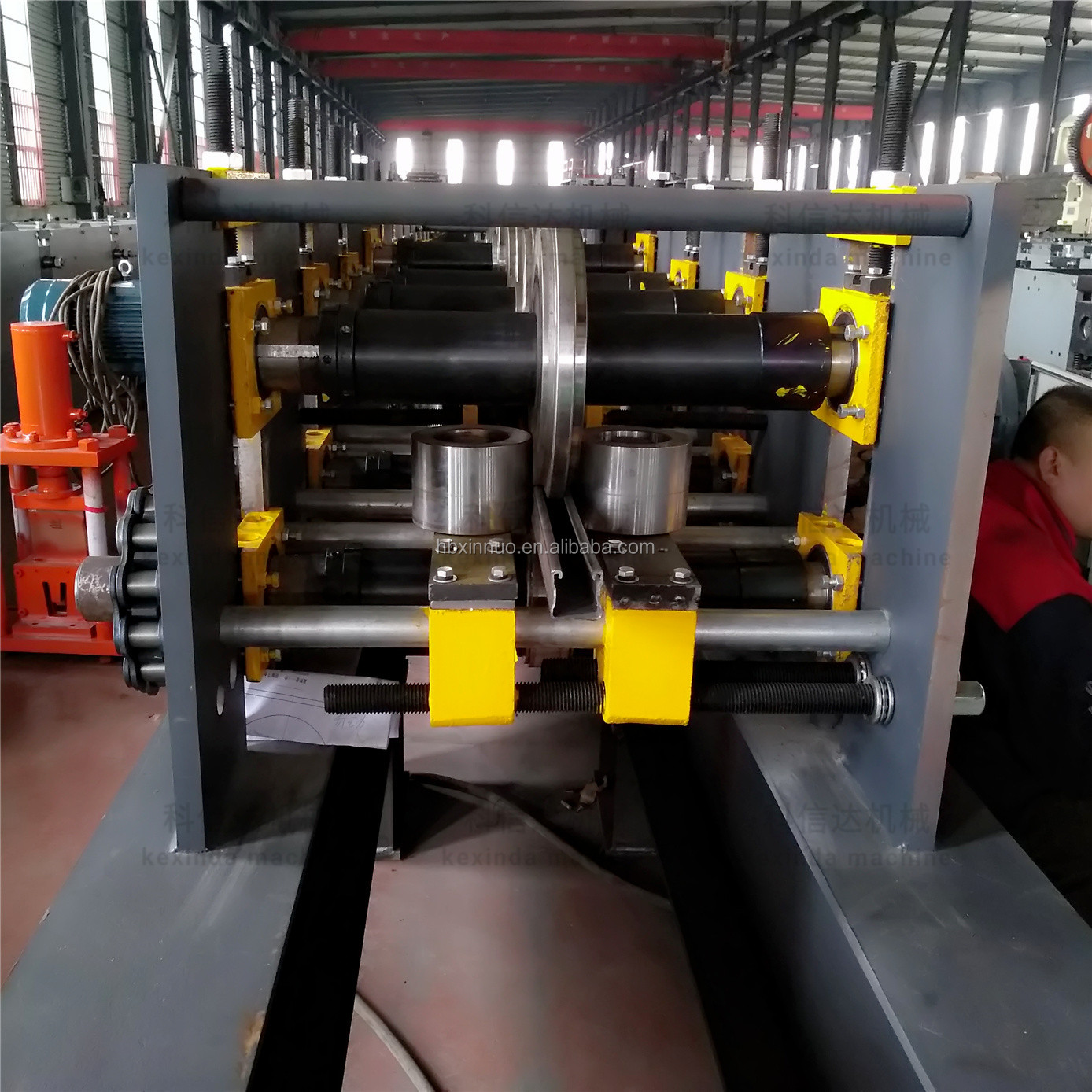

- Main Roll Forming
- Sizing

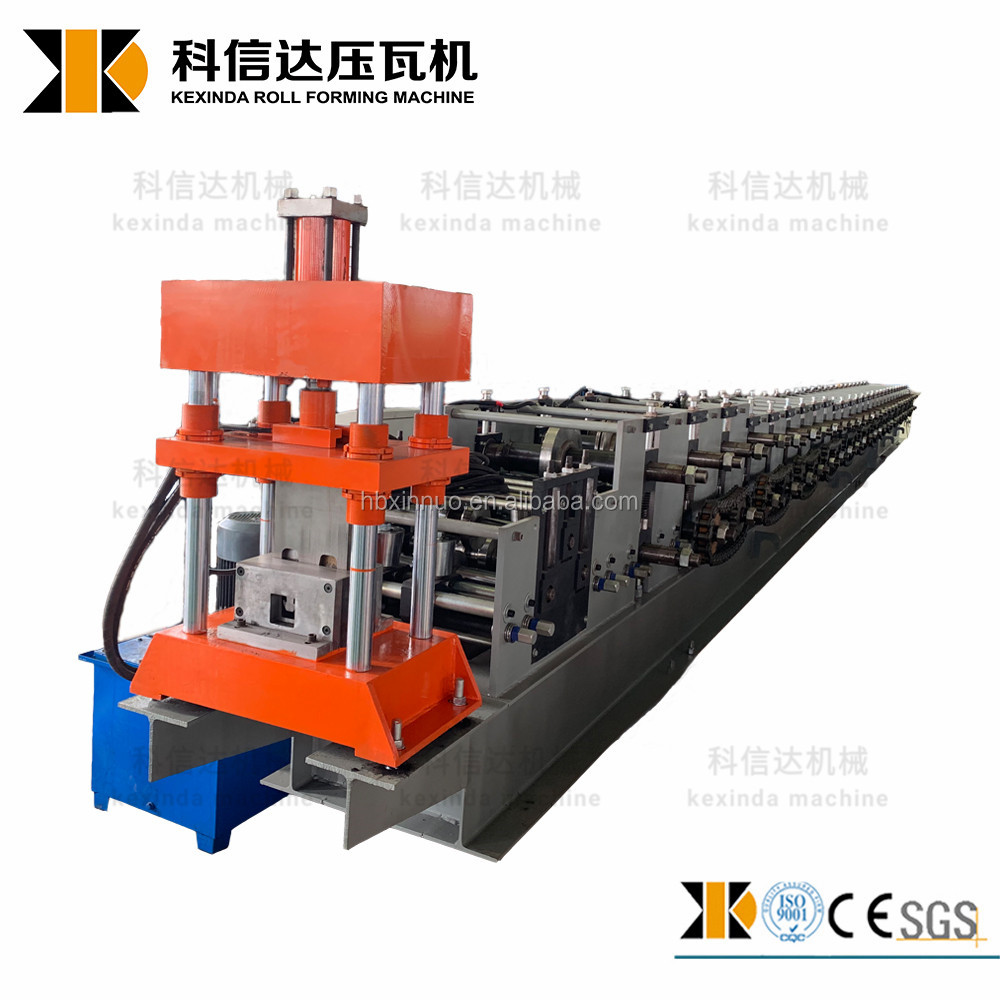

- Tracking Hydraulic Cutting
- Output Table Collection
