Solar Hybrid Air Conditioner
This energy-saving solar air conditioner split system is designed for efficient and eco-friendly cooling. It combines solar power utilization with a split system design for optimal performance.
Technical Specifications
Overview
Solar Hybrid Air Conditioner
This vacuum tube type hybrid solar air conditioner is designed for high-efficiency climate control in residential and commercial spaces. By utilizing solar heat energy to reduce the compressor's workload, the system achieves significant energy savings of 30-50% compared to traditional units. It features a robust design with a high-quality internal thread copper pipe and hydrophilic aluminum foil for superior cooling capacity.
Key Features
Key Features
- Energy saving (30-50% reduction)
- Solar-assisted compressor load reduction
- Digital LED display
- Anti-dust air filter
- Digital e-Touch operation
- Fluorescent buttons for night visibility

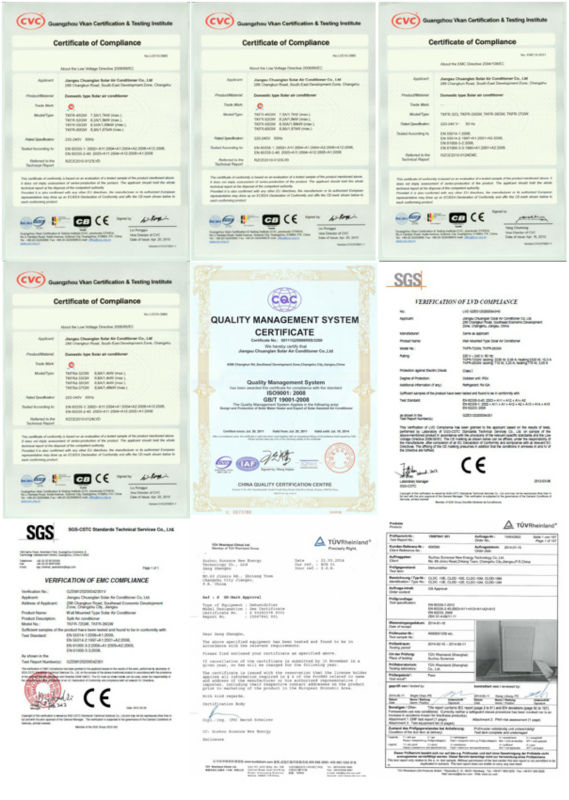

Certifications
- Compliance & Quality
- CEISO 9001CQCLVD CompliantEMC Compliant
Technical Specifications
Performance Matrix
| Specification | TKF(R)-26GW | TKF(R)-35GW | TKF(R)-60GW | TKF(R)-72GW |
|---|---|---|---|---|
| Cooling Capacity (Btu/h) | 9000 | 12000 | 20000 | 24000 |
| Heating Capacity (Btu/h) | 10000 | 13000 | 22000 | 27000 |
| Indoor Noise (dB(A)) | ≤40 | ≤42 | ≤46 | ≤50 |
| Outdoor Noise (dB(A)) | ≤50 | ≤52 | ≤56 | ≤58 |
| Air Circulation (m³/h) | 450 | 550 | 850 | 1050 |
| Suitable Area (m²) | 11~17 | 15~23 | 25~42 | 30~48 |
Electrical
- Power Supply
- 220-240VAC, 1PH, 50Hz
